YM21G-MSZ (1982)
Toyota Lite/Townace Truck

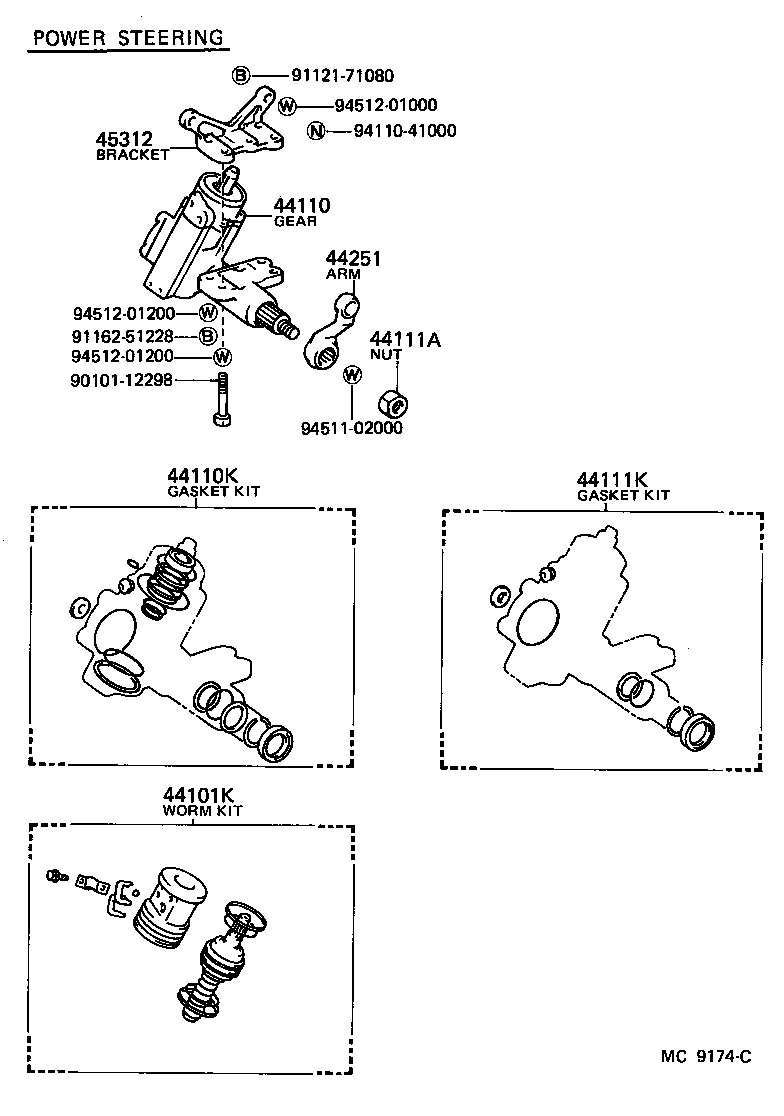

ILLUST NO. 1 OF 3(8210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44101K - WORM KIT, POWER STEERING | ||||
| 04044-27010 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-27011 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL UNION SEAT(RETURN PORT)ID=3 |
1 | ||
| 44110-27010 |
CM20,YM21..FXV,GXL,MTP,S,XL UNION SEAT(RETURN PORT)ID=6 |
1 | ||
| 44110K - GASKET KIT, POWER STEERING GEAR | ||||
| 04445-22050 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
1 | ||
| 44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
1 | ||
| 44111K - GASKET KIT, POWER STEERING CROSS SHAFT OVERHAUL | ||||
| 04455-22010 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
1 | ||
| 44251 - ARM, PITMAN | ||||
| 45411-27070 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
1 | ||
| Common parts | ||||
| 90101-12298 | ||||
| 91121-71080 | ||||
| 91162-51228 | ||||
| 94110-41000 | ||||
| 94511-02000 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||

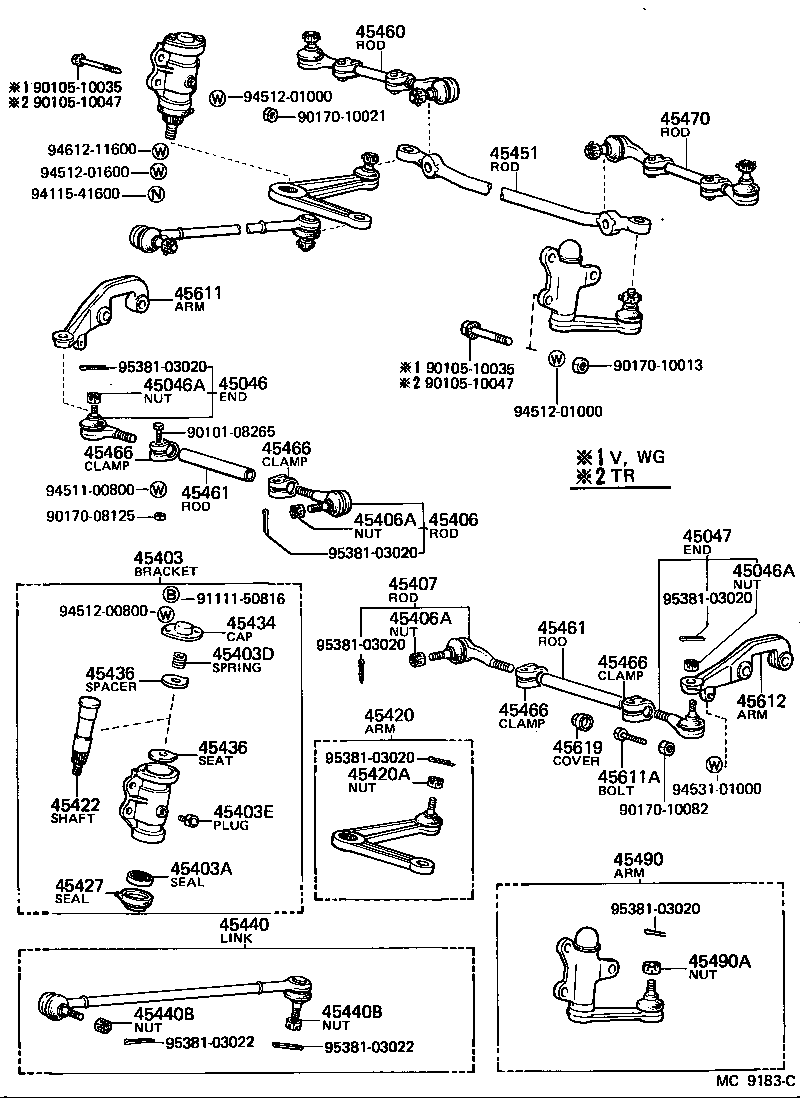

ILLUST NO. 3 OF 3(8210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19135 |
CM2#,KM21,YM2# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19135 |
CM2#,KM21,YM2# |
1 | ||
| 45403A - SEAL, OIL(FOR CENTER ARM BRACKET) | ||||
| 90311-25004 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 45403D - SPRING, COMPRESSION(FOR CENTER ARM SHAFT SET) | ||||
| 90501-30369 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 45403E - PLUG, W/HEAD TAPER SCREW(FOR CENTER ARM SHAFT) | ||||
| 90345-06014 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 45406 - ROD SUB-ASSY, TIE, RH | ||||
| 45406-29126 |
CM2#,KM21,YM2# |
1 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-12028 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-12028 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 45407 - ROD SUB-ASSY, TIE, LH | ||||
| 45406-29126 |
CM2#,KM21,YM2# |
1 | ||
| 45420 - ARM ASSY, STEERING CENTER | ||||
| 45402-29016 |
CM2#,KM21,YM2# |
1 | ||
| 45420A - NUT, CASTLE(FOR STEERING CENTER ARM) | ||||
| 90171-12028 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 45422 - SHAFT, CENTER ARM | ||||
| 45422-26010 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 45440 - LINK ASSY, STEERING DRAG | ||||
| 45440-29096 |
CM2#,KM21,YM2# |
1 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90171-12028 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90171-12028 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 45451 - ROD, STEERING RELAY | ||||
| 45451-27061 |
CM20,YM21..WG |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-29177 |
CM2#,KM21,YM2# |
1 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45470-29055 |
CM2#,KM21,YM2# |
1 | ||
| 45490A - NUT, CASTLE(FOR IDLER ARM) | ||||
| 90171-12028 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-10032 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 45619 - COVER, KNUCKLE STOPPER | ||||
| 45619-14020 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| Common parts | ||||
| 90101-08265 | ||||
| 90105-10035 | ||||
| 90105-10047 | ||||
| 90170-08125 | ||||
| 90170-10013 | ||||
| 90170-10021 | ||||
| 90170-10082 | ||||
| 91111-50816 | ||||
| 94115-41600 | ||||
| 94511-00800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94512-01600 | ||||
| 94531-01000 | ||||
| 94612-11600 | ||||
| 95381-03020 | ||||
| 95381-03022 | ||||

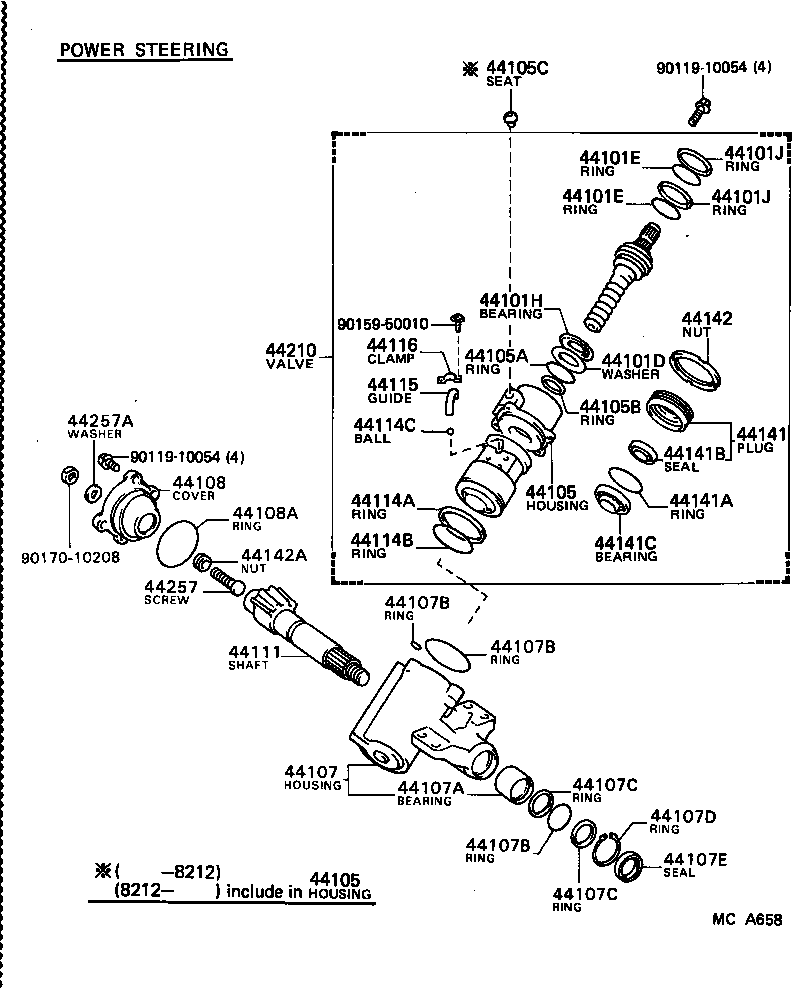

ILLUST NO. 2 OF 3(8210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44101D - WASHER, PLATE(FOR STEERING WORM) | ||||
| 90201-30003 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90301-44001 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
2 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90301-44001 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
2 | ||
| 44101H - BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM) | ||||
| 90374-30003 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
1 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-47002 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
2 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-47002 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
2 | ||
| 44105 - HOUSING SUB-ASSY, VALVE | ||||
| 44105-27010 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
1 | ||
| 44105-35010 |
CM20,YM21..FXV,GXL,MTP,S,XL |
1 | ||
| 44105 - HOUSING SUB-ASSY, VALVE | ||||
| 44105-27010 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
1 | ||
| 44105-35010 |
CM20,YM21..FXV,GXL,MTP,S,XL |
1 | ||
| 44105A - RING, O(FOR VALVE HOUSING) | ||||
| 90301-32002 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
1 | ||
| 44105B - RING(FOR VALVE HOUSING) | ||||
| 90562-30002 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
1 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06006 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL ID=6,PRESSURE PORT SIDE |
1 | ||
| 90410-03005 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL ID=3,RETURN PORT SIDE |
1 | ||
| 90410-06030 |
CM20,YM21..FXV,GXL,MTP,S,XL |
2 | ||
| 90410-06006 |
CM20,YM21..FXV,GXL,MTP,S,XL |
2 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-27010 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-30002 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-19010 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL 外径=13.6,内径=9.8,OD=13,T=1.9 |
1 | ||
| 90301-32001 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL 内径=31.7,外径=38.7,OD=38.7,T=3.5 |
1 | ||
| 90301-62002 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL 内径=62.5,外径=66.5,OD=66.5,T=2.0 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-19010 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL 外径=13.6,内径=9.8,OD=13,T=1.9 |
1 | ||
| 90301-32001 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL 内径=31.7,外径=38.7,OD=38.7,T=3.5 |
1 | ||
| 90301-62002 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL 内径=62.5,外径=66.5,OD=66.5,T=2.0 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-19010 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL 外径=13.6,内径=9.8,OD=13,T=1.9 |
1 | ||
| 90301-32001 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL 内径=31.7,外径=38.7,OD=38.7,T=3.5 |
1 | ||
| 90301-62002 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL 内径=62.5,外径=66.5,OD=66.5,T=2.0 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-30001 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL 内径=30.1,外径=38.0,OD=38.0,T=3.0 |
1 | ||
| 90562-29001 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL 内径=29.9,外径=32.3,OD=32.3,T=4.0 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-30001 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL 内径=30.1,外径=38.0,OD=38.0,T=3.0 |
1 | ||
| 90562-29001 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL 内径=29.9,外径=32.3,OD=32.3,T=4.0 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-41001 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-30001 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-22020 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-58001 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-22030 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-58001 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-53001 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
1 | ||
| 44114C - BALL(FOR POWER PISTON NUT) | ||||
| 90360-06021 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
44 | ||
| 44115 - GUIDE, BALL | ||||
| 44115-14010 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
2 | ||
| 44116 - CLAMP, BALL GUIDE | ||||
| 44116-14010 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
1 | ||
| 44141 - PLUG, ADJUSTER | ||||
| 44104-22011 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
1 | ||
| 44141A - RING, O(FOR ADJUSTER PLUG) | ||||
| 90301-51001 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
1 | ||
| 44141B - SEAL, OIL(FOR ADJUSTER PLUG) | ||||
| 90311-19002 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
1 | ||
| 44141C - BEARING(FOR ADJUSTER PLUG) | ||||
| 90369-22001 |
CM20,YM21..FXV,GXL,MTP,S,SW,XL |
1 | ||
| 90369-22004 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22010 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-22020 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44120-27020 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL UNION SEAT(RETURN PORT)ID=3 |
1 | ||
| 44120-28010 |
CM20,YM21..FXV,GXL,MTP,S,XL UNION SEAT(RETURN PORT)ID=6 |
1 | ||
| 44257 - SCREW, CROSS SHAFT ADJUSTING | ||||
| 45357-22010 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
CM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL |
1 | ||
| Common parts | ||||
| 90119-10054 | ||||
| 90159-50010 | ||||
| 90170-10208 | ||||
