YM21G-MSZ (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 2YU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )1YJ,2YU

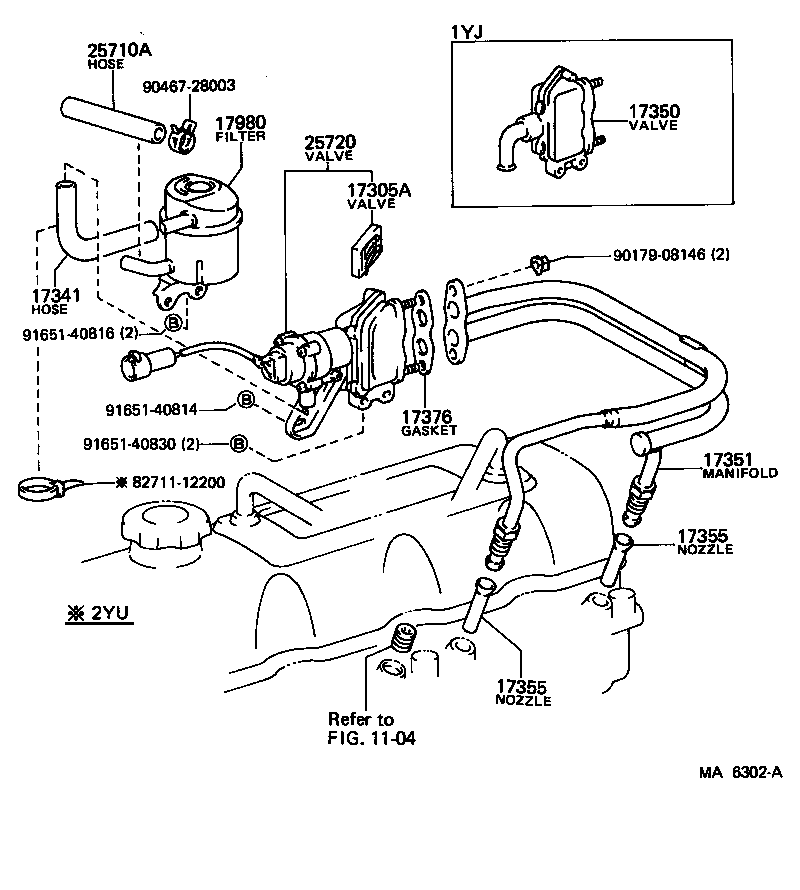

Click highlighted areas on diagram

diagram 1104 17305A 17341 17350 17351 17355 17355 17376 17980 25710A 25720 8271112200 9017908146 9046728003 9165140814 9165140816 9165140830
Part # Description Qty Price
17305A - VALVE SUB-ASSY, REED
17305-28010

2YU..YM21

ND

 2
17305-71010

2YU..YM21

NOK

 2
17980 - FILTER ASSY, AIR SUCTION
17980-71011

1YJ,2YU..YM2#

 1
17980-71011

2YU..YM21

 1
25720 - VALVE ASSY, ELECTRIC AIR CONTROL
25720-71010

2YU..YM21

 1
Common parts
82711-12200
90179-08146
90467-28003
91651-40814
91651-40816
91651-40830
Linked diagrams
1104
