YM21G-MQZ (1982)
Toyota Lite/Townace Truck

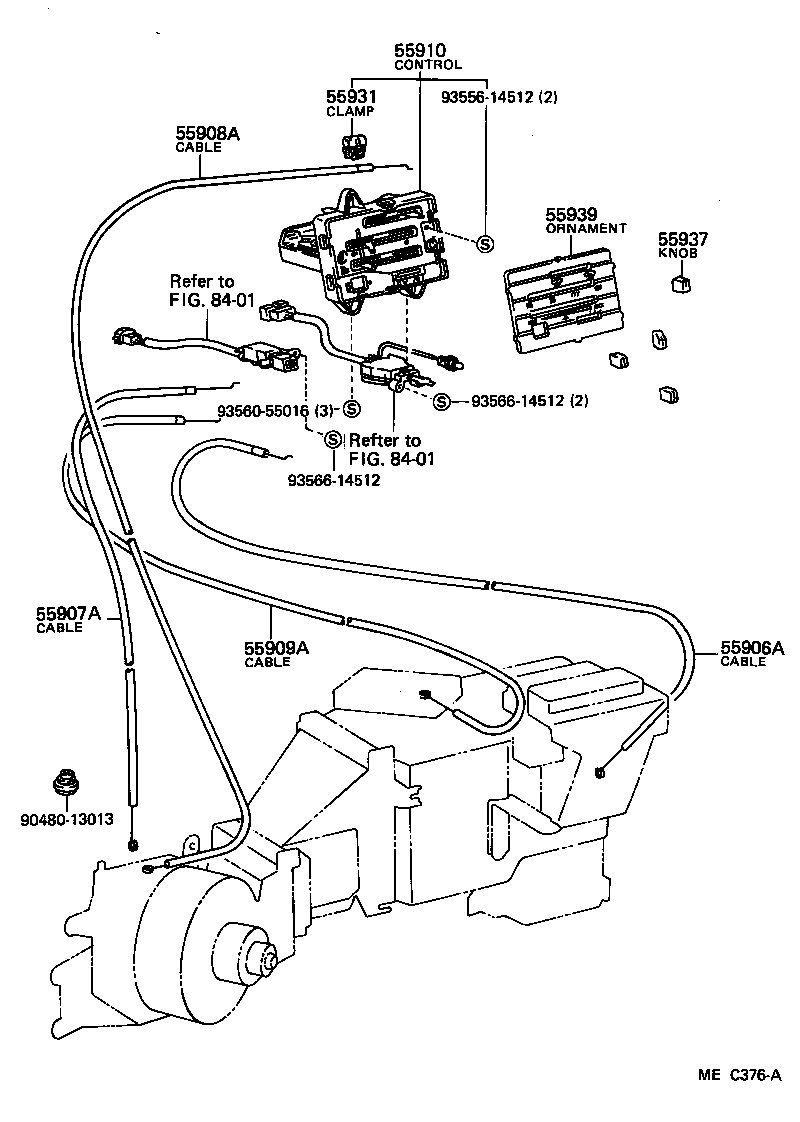

ILLUST NO. 1 OF 4(8210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-95706 |
CM2#,KM21,YM2# L=365 |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-95704 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) RR HEATER |
1 | ||
| 55907-95707 |
CM20,KM21,YM20,21..V,WG FR HEATER |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95704 |
CM2#,KM21,YM2# FR HEATER |
1 | ||
| 55908-95705 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) RR HEATER |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-95702 |
CM2#,KM21,YM2# |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95713 |
CM2#,KM21,YM2# |
1 | ||
| 55931 - CLAMP, HEATER CONTROL WIRE | ||||
| 55933-24010 |
CM2#,KM21,YM2# |
4 | ||
| 55933-22020 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) |
2 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-95704 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) RR HEATER,NO.2 |
1 | ||
| 55905-95703 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) RR HEATER,NO.1 |
1 | ||
| 55905-12070 |
CM2#,KM21,YM2# FR HEATER |
4 | ||
| 55939 - ORNAMENT, HEATER CONTROL | ||||
| 55519-95710 |
CM2#,KM21,YM2# FR HEATER |
1 | ||
| 55939-9570506 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) BROWN,RR HEATER,BROWN |
1 | ||
| 55939-9570504 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) BLUE GRAY,RR HEATER,BLUE |
1 | ||
| 55519-95714 |
CM2#,KM21,YM2# FR HEATER |
1 | ||
| Common parts | ||||
| 90480-13013 | ||||
| 93556-14512 | ||||
| 93560-55016 | ||||
| 93566-14512 | ||||
| Linked diagrams | ||||
| 8401 | ||||

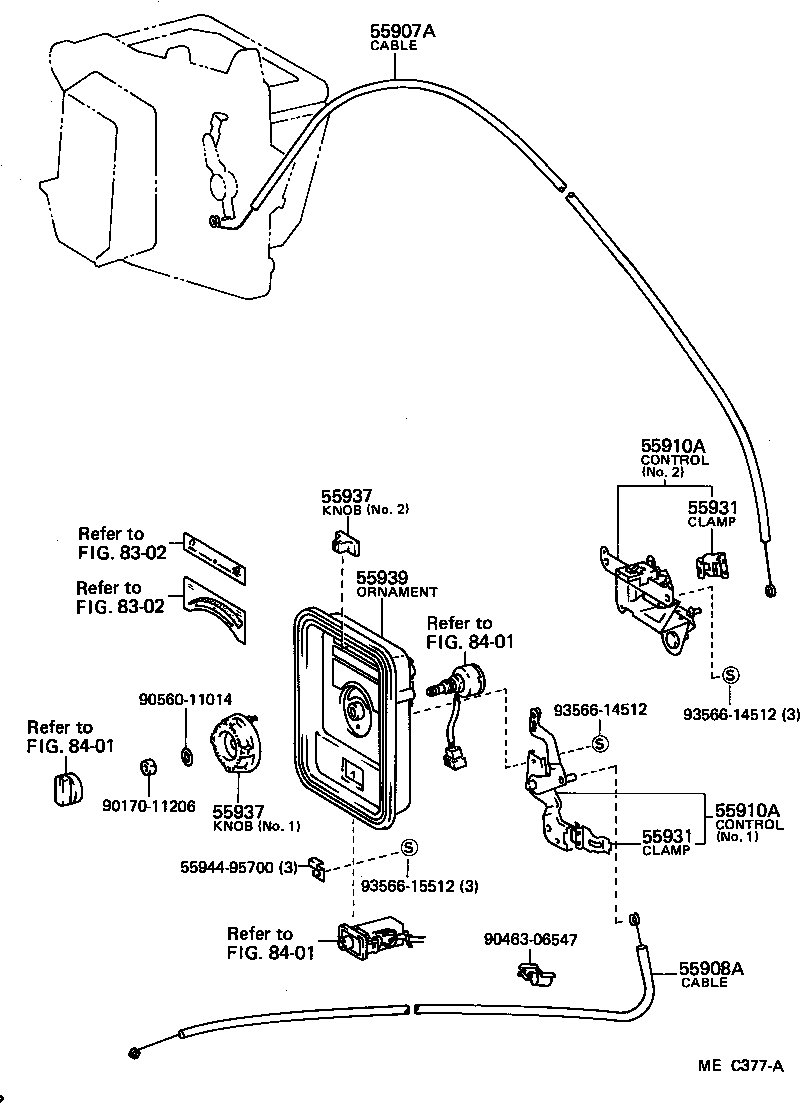

ILLUST NO. 2 OF 4(8210-8508)WG..CS7,DLX,FXV,GXL,MTP,S,SW,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-95704 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) RR HEATER |
1 | ||
| 55907-95707 |
CM20,KM21,YM20,21..V,WG FR HEATER |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95704 |
CM2#,KM21,YM2# FR HEATER |
1 | ||
| 55908-95705 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) RR HEATER |
1 | ||
| 55910A - CONTROL ASSY, REAR HEATER | ||||
| 55910-95715 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) NO.2 |
1 | ||
| 55910-95716 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) NO.1 |
1 | ||
| 55910A - CONTROL ASSY, REAR HEATER | ||||
| 55910-95715 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) NO.2 |
1 | ||
| 55910-95716 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) NO.1 |
1 | ||
| 55931 - CLAMP, HEATER CONTROL WIRE | ||||
| 55933-24010 |
CM2#,KM21,YM2# |
4 | ||
| 55933-22020 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) |
2 | ||
| 55931 - CLAMP, HEATER CONTROL WIRE | ||||
| 55933-24010 |
CM2#,KM21,YM2# |
4 | ||
| 55933-22020 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) |
2 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-95704 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) RR HEATER,NO.2 |
1 | ||
| 55905-95703 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) RR HEATER,NO.1 |
1 | ||
| 55905-12070 |
CM2#,KM21,YM2# FR HEATER |
4 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-95704 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) RR HEATER,NO.2 |
1 | ||
| 55905-95703 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) RR HEATER,NO.1 |
1 | ||
| 55905-12070 |
CM2#,KM21,YM2# FR HEATER |
4 | ||
| 55939 - ORNAMENT, HEATER CONTROL | ||||
| 55519-95710 |
CM2#,KM21,YM2# FR HEATER |
1 | ||
| 55939-9570506 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) BROWN,RR HEATER,BROWN |
1 | ||
| 55939-9570504 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) BLUE GRAY,RR HEATER,BLUE |
1 | ||
| 55519-95714 |
CM2#,KM21,YM2# FR HEATER |
1 | ||
| Common parts | ||||
| 55944-95700 | ||||
| 90170-11206 | ||||
| 90463-06547 | ||||
| 90560-11014 | ||||
| 93566-14512 | ||||
| 93566-15512 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||

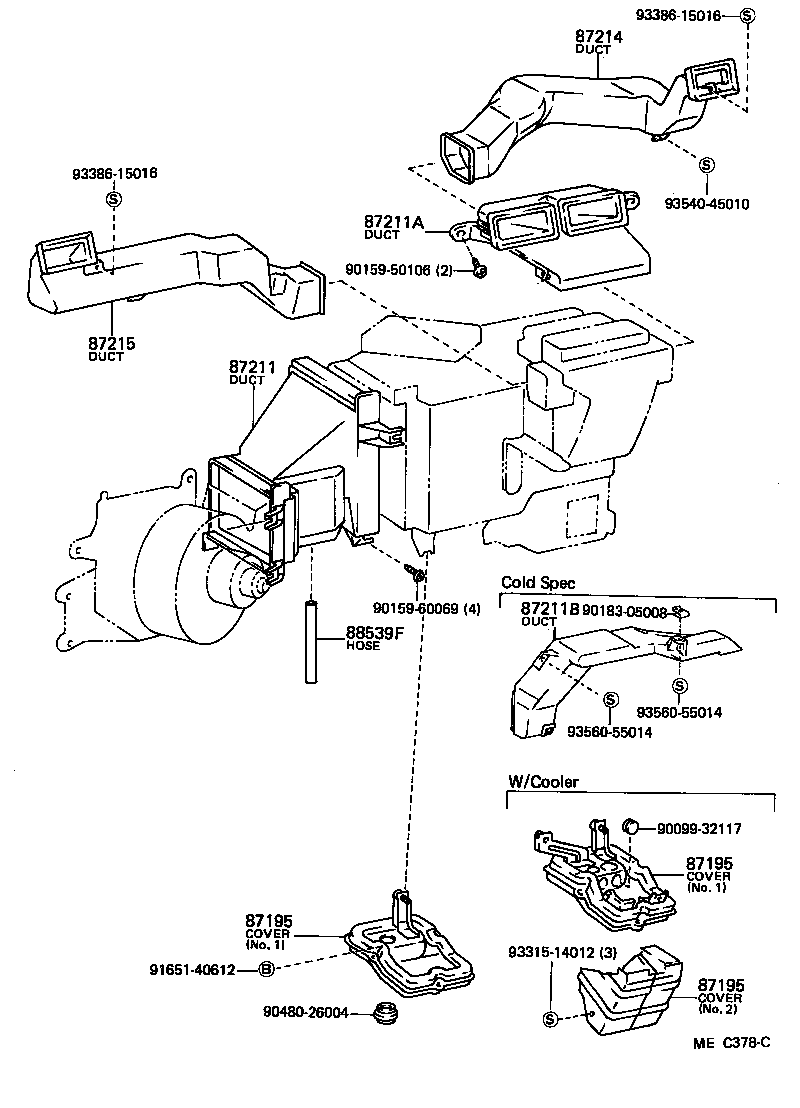

ILLUST NO. 3 OF 4(8210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87195 - COVER, HOLE | ||||
| 88896-95706 |
CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL W/COOLER,NO.1 |
1 | ||
| 88899-95709 |
CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL W/COOLER,NO.2 |
1 | ||
| 87195-95703 |
CM2#,KM21,YM2# NO.1 |
1 | ||
| 87195 - COVER, HOLE | ||||
| 88896-95706 |
CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL W/COOLER,NO.1 |
1 | ||
| 88899-95709 |
CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL W/COOLER,NO.2 |
1 | ||
| 87195-95703 |
CM2#,KM21,YM2# NO.1 |
1 | ||
| 87195 - COVER, HOLE | ||||
| 88896-95706 |
CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL W/COOLER,NO.1 |
1 | ||
| 88899-95709 |
CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL W/COOLER,NO.2 |
1 | ||
| 87195-95703 |
CM2#,KM21,YM2# NO.1 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-95701 |
CM2#,KM21,YM2# |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 55086-95700 |
CM20,25,KM21,YM2# |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87211-95711 |
CM20,YM21..FXV,GXL COLD SPEC |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55084-95700 |
CM20,25,KM21,YM2# |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55085-95700 |
CM20,25,KM21,YM2# |
1 | ||
| 88539F - HOSE, DRAIN | ||||
| 88539-14010 |
CM2#,KM21,YM2# |
1 | ||
| Common parts | ||||
| 90099-32117 | ||||
| 90159-50106 | ||||
| 90159-60069 | ||||
| 90183-05008 | ||||
| 90480-26004 | ||||
| 91651-40612 | ||||
| 93315-14012 | ||||
| 93386-15016 | ||||
| 93540-45010 | ||||
| 93560-55014 | ||||

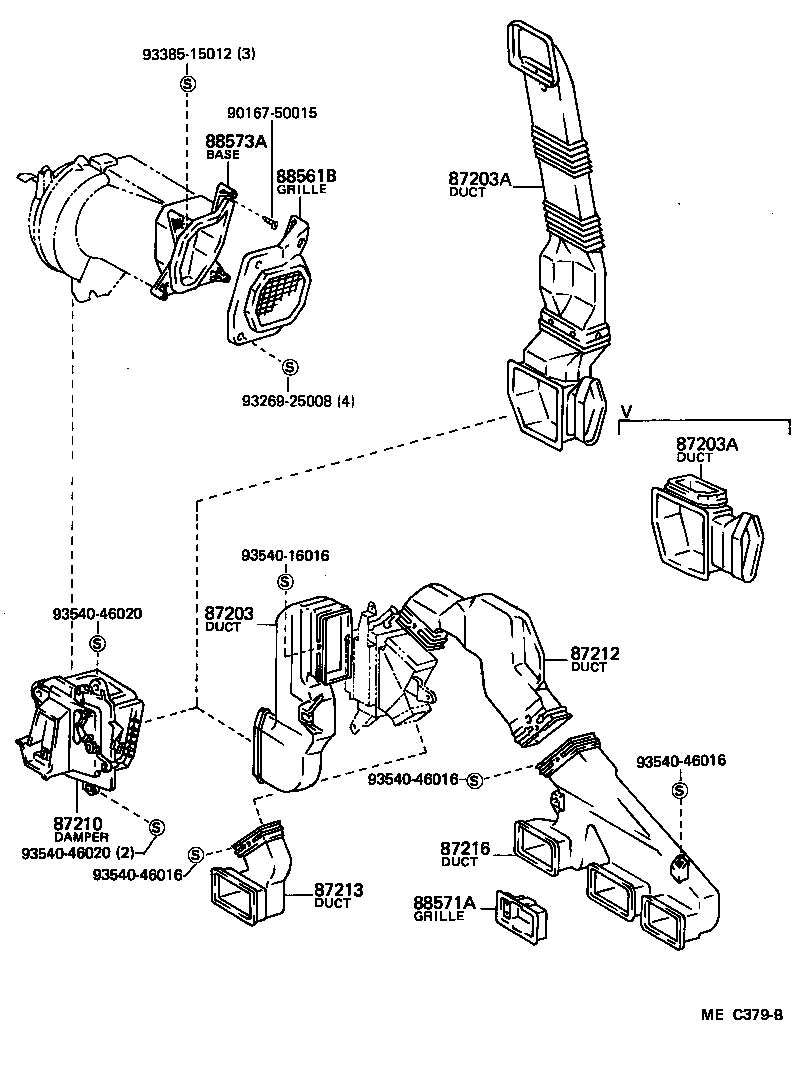

ILLUST NO. 4 OF 4(8210-8508)YM20..V4D..ST ; (8210-8508)HRF,MRF..07S,08S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87203 - DUCT, HEATER AIR, REAR NO.1 | ||||
| 87211-95704 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) |
1 | ||
| 87203A - DUCT ASSY, HEATER AIR, REAR | ||||
| 87211-95712 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) |
1 | ||
| 87203A - DUCT ASSY, HEATER AIR, REAR | ||||
| 87211-95712 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) |
1 | ||
| 87210 - DAMPER ASSY, AIR | ||||
| 87210-95704 |
CM20,YM21..WG..(HRF,SRF) |
1 | ||
| 87210-95705 |
CM20,YM21..HRF..(FXV,GXL) W/SUN ROOF |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87211-95705 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87211-95708 |
CM20,YM21..CS7,FXV,GXL,MTP,S,XL |
1 | ||
| 87216 - DUCT, HEATER INTERIOR AIR (TO REAR) | ||||
| 87211-95709 |
CM20,YM21..CS7,FXV,GXL,MTP,S,XL |
1 | ||
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88561-9570103 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) SHADOW GRAY,SHADOW GRAY |
1 | ||
| 88561-9570106 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) BROWN,BROWN |
1 | ||
| 88561-9570104 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) GRAY BLUE,BLUE GRAY |
1 | ||
| 88571A - GRILLE, AIR OUTLET | ||||
| 87125-9570006 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) BROWN,BROWN |
4 | ||
| 87125-9570003 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) SHADOW GRAY,SHADOW GRAY |
4 | ||
| 87125-9570004 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) GRAY BLUE,BLUE GRAY |
4 | ||
| 88573A - BASE, GRILLE | ||||
| 88573-95701 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) |
1 | ||
| Common parts | ||||
| 90167-50015 | ||||
| 93269-25008 | ||||
| 93385-15012 | ||||
| 93540-16016 | ||||
| 93540-46016 | ||||
| 93540-46020 | ||||

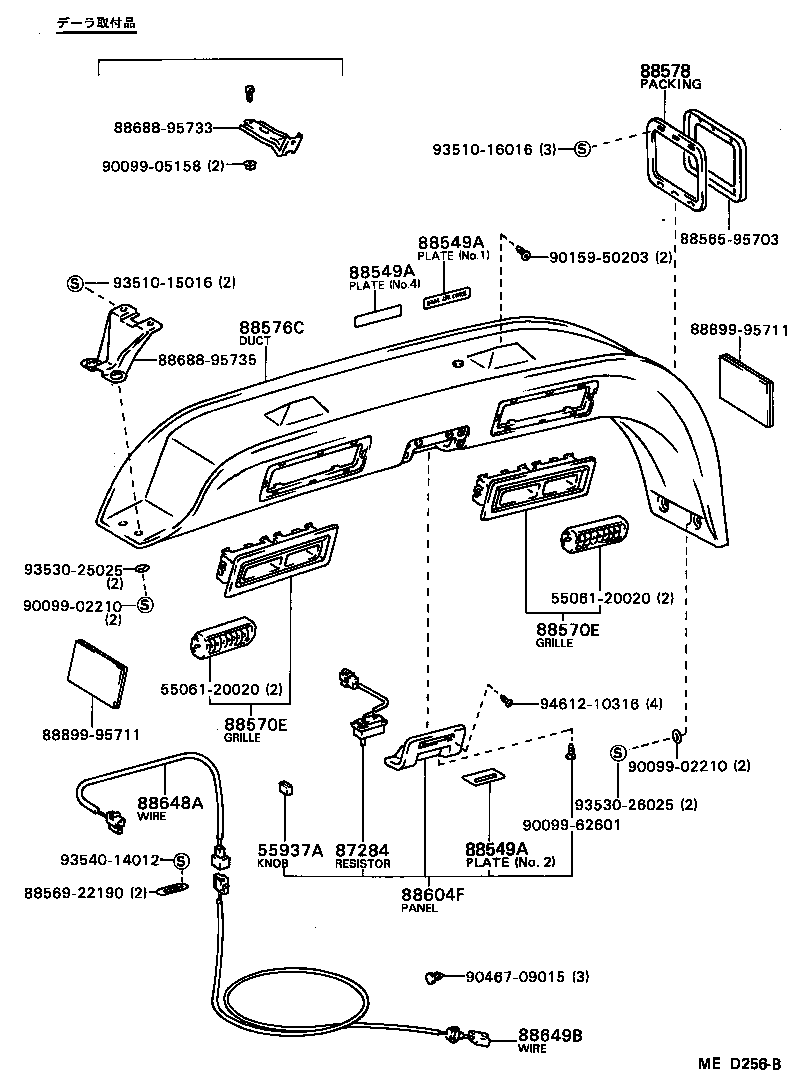

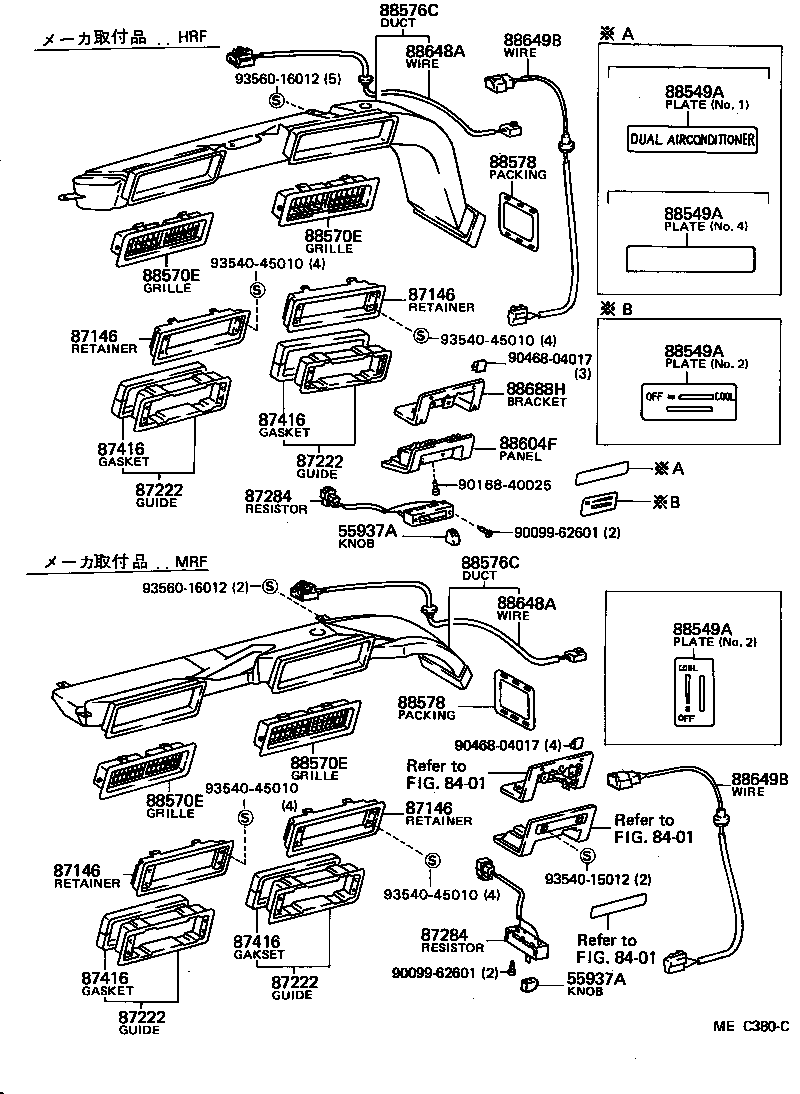

ILLUST NO. 4 OF 4(8210-8508)HRF,MRF..FXV,GXL,MTP,S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55937A - KNOB, COOLER CONTROL LEVER | ||||
| 88611-95700 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) |
1 | ||
| 55937A - KNOB, COOLER CONTROL LEVER | ||||
| 88611-95700 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) |
1 | ||
| 87146 - RETAINER, GRILLE | ||||
| 87146-95700 |
CM20,YM21..HRF..(FXV,GXL,MTP) |
2 | ||
| 87146 - RETAINER, GRILLE | ||||
| 87146-95700 |
CM20,YM21..HRF..(FXV,GXL,MTP) |
2 | ||
| 87146 - RETAINER, GRILLE | ||||
| 87146-95700 |
CM20,YM21..HRF..(FXV,GXL,MTP) |
2 | ||
| 87146 - RETAINER, GRILLE | ||||
| 87146-95700 |
CM20,YM21..HRF..(FXV,GXL,MTP) |
2 | ||
| 87222 - GUIDE, AIR DUCT, REAR | ||||
| 87215-95700 |
CM20,YM21..HRF..(FXV,GXL,MTP) |
2 | ||
| 87222 - GUIDE, AIR DUCT, REAR | ||||
| 87215-95700 |
CM20,YM21..HRF..(FXV,GXL,MTP) |
2 | ||
| 87222 - GUIDE, AIR DUCT, REAR | ||||
| 87215-95700 |
CM20,YM21..HRF..(FXV,GXL,MTP) |
2 | ||
| 87222 - GUIDE, AIR DUCT, REAR | ||||
| 87215-95700 |
CM20,YM21..HRF..(FXV,GXL,MTP) |
2 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88610-95707 |
CM20,YM21..HRF..(FXV,GXL,MTP) W/TWIN MOON ROOF |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88610-95707 |
CM20,YM21..HRF..(FXV,GXL,MTP) W/TWIN MOON ROOF |
1 | ||
| 87416 - GASKET, AIR DUCT | ||||
| 88578-95707 |
CM20,YM21..HRF..(FXV,GXL,MTP) |
2 | ||
| 87416 - GASKET, AIR DUCT | ||||
| 88578-95707 |
CM20,YM21..HRF..(FXV,GXL,MTP) |
2 | ||
| 87416 - GASKET, AIR DUCT | ||||
| 88578-95707 |
CM20,YM21..HRF..(FXV,GXL,MTP) |
2 | ||
| 87416 - GASKET, AIR DUCT | ||||
| 88578-95707 |
CM20,YM21..HRF..(FXV,GXL,MTP) |
2 | ||
| 88549A - PLATE, CAUTION | ||||
| 88549-95710 |
CM20,YM21..HRF..(FXV,GXL,MTP) NO.1,W/COOLER,TWIN MOON ROOF |
1 | ||
| 86325-9570008 |
CM20,YM21..HRF..(FXV,GXL,MTP) NO.4,W/O COOLER,IVORY,IVORY |
1 | ||
| 88549-95712 |
CM20,YM21..HRF..(FXV,GXL,MTP) NO.2,W/COOLER,TWIN MOON ROOF |
1 | ||
| 88549-95716 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) NO.4,W/COOLER |
1 | ||
| 86325-9570003 |
CM20,YM21..HRF..(FXV,GXL,MTP) NO.4,W/O COOLER,GRAY,GRAY |
1 | ||
| 88549A - PLATE, CAUTION | ||||
| 88549-95710 |
CM20,YM21..HRF..(FXV,GXL,MTP) NO.1,W/COOLER,TWIN MOON ROOF |
1 | ||
| 86325-9570008 |
CM20,YM21..HRF..(FXV,GXL,MTP) NO.4,W/O COOLER,IVORY,IVORY |
1 | ||
| 88549-95712 |
CM20,YM21..HRF..(FXV,GXL,MTP) NO.2,W/COOLER,TWIN MOON ROOF |
1 | ||
| 88549-95716 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) NO.4,W/COOLER |
1 | ||
| 86325-9570003 |
CM20,YM21..HRF..(FXV,GXL,MTP) NO.4,W/O COOLER,GRAY,GRAY |
1 | ||
| 88549A - PLATE, CAUTION | ||||
| 88549-95710 |
CM20,YM21..HRF..(FXV,GXL,MTP) NO.1,W/COOLER,TWIN MOON ROOF |
1 | ||
| 86325-9570008 |
CM20,YM21..HRF..(FXV,GXL,MTP) NO.4,W/O COOLER,IVORY,IVORY |
1 | ||
| 88549-95712 |
CM20,YM21..HRF..(FXV,GXL,MTP) NO.2,W/COOLER,TWIN MOON ROOF |
1 | ||
| 88549-95716 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) NO.4,W/COOLER |
1 | ||
| 86325-9570003 |
CM20,YM21..HRF..(FXV,GXL,MTP) NO.4,W/O COOLER,GRAY,GRAY |
1 | ||
| 88549A - PLATE, CAUTION | ||||
| 88549-95710 |
CM20,YM21..HRF..(FXV,GXL,MTP) NO.1,W/COOLER,TWIN MOON ROOF |
1 | ||
| 86325-9570008 |
CM20,YM21..HRF..(FXV,GXL,MTP) NO.4,W/O COOLER,IVORY,IVORY |
1 | ||
| 88549-95712 |
CM20,YM21..HRF..(FXV,GXL,MTP) NO.2,W/COOLER,TWIN MOON ROOF |
1 | ||
| 88549-95716 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) NO.4,W/COOLER |
1 | ||
| 86325-9570003 |
CM20,YM21..HRF..(FXV,GXL,MTP) NO.4,W/O COOLER,GRAY,GRAY |
1 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-9570203 |
CM20,YM21..(HRF,MRF)..(FXV,GXL,MTP,S) GRAY,W/RR HEATER,GRAY |
2 | ||
| 88570-9570208 |
CM20,YM21..(HRF,MRF)..(FXV,GXL,MTP,S) IVORY,W/RR HEATER,IVORY |
2 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-9570203 |
CM20,YM21..(HRF,MRF)..(FXV,GXL,MTP,S) GRAY,W/RR HEATER,GRAY |
2 | ||
| 88570-9570208 |
CM20,YM21..(HRF,MRF)..(FXV,GXL,MTP,S) IVORY,W/RR HEATER,IVORY |
2 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-9570203 |
CM20,YM21..(HRF,MRF)..(FXV,GXL,MTP,S) GRAY,W/RR HEATER,GRAY |
2 | ||
| 88570-9570208 |
CM20,YM21..(HRF,MRF)..(FXV,GXL,MTP,S) IVORY,W/RR HEATER,IVORY |
2 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-9570203 |
CM20,YM21..(HRF,MRF)..(FXV,GXL,MTP,S) GRAY,W/RR HEATER,GRAY |
2 | ||
| 88570-9570208 |
CM20,YM21..(HRF,MRF)..(FXV,GXL,MTP,S) IVORY,W/RR HEATER,IVORY |
2 | ||
| 88576C - DUCT, COOLER AIR, NO.1 | ||||
| 88576-95707 |
CM20,YM21..HRF..(FXV,GXL,MTP) W/TWIN MOON ROOF |
1 | ||
| 88576C - DUCT, COOLER AIR, NO.1 | ||||
| 88576-95707 |
CM20,YM21..HRF..(FXV,GXL,MTP) W/TWIN MOON ROOF |
1 | ||
| 88578 - PAKING, COOLER AIR DUCT | ||||
| 88578-95701 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) |
1 | ||
| 88578 - PAKING, COOLER AIR DUCT | ||||
| 88578-95701 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) |
1 | ||
| 88604F - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88619-9570008 |
CM20,YM21..HRF..(FXV,GXL,MTP) IVORY,W/TWIN MOON ROOF,IVORY |
1 | ||
| 88619-9570003 |
CM20,YM21..HRF..(FXV,GXL,MTP) GRAY,W/TWIN MOON ROOF,GRAY |
1 | ||
| 88648A - WIRING, COOLER | ||||
| 88648-95705 |
CM20,YM21..HRF..(FXV,GXL,MTP) W/TWIN MOON ROOF |
1 | ||
| 88648A - WIRING, COOLER | ||||
| 88648-95705 |
CM20,YM21..HRF..(FXV,GXL,MTP) W/TWIN MOON ROOF |
1 | ||
| 88649B - WIRING, COOLER | ||||
| 88648-95708 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) |
1 | ||
| 88649B - WIRING, COOLER | ||||
| 88648-95708 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) |
1 | ||
| 88688H - BRACKET, COOLER AIR DUCT, NO.1 | ||||
| 88438-95701 |
CM20,YM21..HRF..(FXV,GXL,MTP) |
1 | ||
| Common parts | ||||
| 90099-62601 | ||||
| 90168-40025 | ||||
| 90468-04017 | ||||
| 93540-15012 | ||||
| 93540-45010 | ||||
| 93560-16012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF 4(8210-8508)WG..CS7,DLX,FXV,GXL,MTP,S,SW,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55937A - KNOB, COOLER CONTROL LEVER | ||||
| 88611-95700 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88610-95707 |
CM20,YM21..HRF..(FXV,GXL,MTP) W/TWIN MOON ROOF |
1 | ||
| 88549A - PLATE, CAUTION | ||||
| 88549-95710 |
CM20,YM21..HRF..(FXV,GXL,MTP) NO.1,W/COOLER,TWIN MOON ROOF |
1 | ||
| 86325-9570008 |
CM20,YM21..HRF..(FXV,GXL,MTP) NO.4,W/O COOLER,IVORY,IVORY |
1 | ||
| 88549-95712 |
CM20,YM21..HRF..(FXV,GXL,MTP) NO.2,W/COOLER,TWIN MOON ROOF |
1 | ||
| 88549-95716 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) NO.4,W/COOLER |
1 | ||
| 86325-9570003 |
CM20,YM21..HRF..(FXV,GXL,MTP) NO.4,W/O COOLER,GRAY,GRAY |
1 | ||
| 88549A - PLATE, CAUTION | ||||
| 88549-95710 |
CM20,YM21..HRF..(FXV,GXL,MTP) NO.1,W/COOLER,TWIN MOON ROOF |
1 | ||
| 86325-9570008 |
CM20,YM21..HRF..(FXV,GXL,MTP) NO.4,W/O COOLER,IVORY,IVORY |
1 | ||
| 88549-95712 |
CM20,YM21..HRF..(FXV,GXL,MTP) NO.2,W/COOLER,TWIN MOON ROOF |
1 | ||
| 88549-95716 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) NO.4,W/COOLER |
1 | ||
| 86325-9570003 |
CM20,YM21..HRF..(FXV,GXL,MTP) NO.4,W/O COOLER,GRAY,GRAY |
1 | ||
| 88549A - PLATE, CAUTION | ||||
| 88549-95710 |
CM20,YM21..HRF..(FXV,GXL,MTP) NO.1,W/COOLER,TWIN MOON ROOF |
1 | ||
| 86325-9570008 |
CM20,YM21..HRF..(FXV,GXL,MTP) NO.4,W/O COOLER,IVORY,IVORY |
1 | ||
| 88549-95712 |
CM20,YM21..HRF..(FXV,GXL,MTP) NO.2,W/COOLER,TWIN MOON ROOF |
1 | ||
| 88549-95716 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) NO.4,W/COOLER |
1 | ||
| 86325-9570003 |
CM20,YM21..HRF..(FXV,GXL,MTP) NO.4,W/O COOLER,GRAY,GRAY |
1 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-9570203 |
CM20,YM21..(HRF,MRF)..(FXV,GXL,MTP,S) GRAY,W/RR HEATER,GRAY |
2 | ||
| 88570-9570208 |
CM20,YM21..(HRF,MRF)..(FXV,GXL,MTP,S) IVORY,W/RR HEATER,IVORY |
2 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-9570203 |
CM20,YM21..(HRF,MRF)..(FXV,GXL,MTP,S) GRAY,W/RR HEATER,GRAY |
2 | ||
| 88570-9570208 |
CM20,YM21..(HRF,MRF)..(FXV,GXL,MTP,S) IVORY,W/RR HEATER,IVORY |
2 | ||
| 88576C - DUCT, COOLER AIR, NO.1 | ||||
| 88576-95707 |
CM20,YM21..HRF..(FXV,GXL,MTP) W/TWIN MOON ROOF |
1 | ||
| 88578 - PAKING, COOLER AIR DUCT | ||||
| 88578-95701 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) |
1 | ||
| 88604F - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88619-9570008 |
CM20,YM21..HRF..(FXV,GXL,MTP) IVORY,W/TWIN MOON ROOF,IVORY |
1 | ||
| 88619-9570003 |
CM20,YM21..HRF..(FXV,GXL,MTP) GRAY,W/TWIN MOON ROOF,GRAY |
1 | ||
| 88648A - WIRING, COOLER | ||||
| 88648-95705 |
CM20,YM21..HRF..(FXV,GXL,MTP) W/TWIN MOON ROOF |
1 | ||
| 88649B - WIRING, COOLER | ||||
| 88648-95708 |
CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL) |
1 | ||
| Common parts | ||||
| 55061-20020 | ||||
| 88565-95703 | ||||
| 88569-22190 | ||||
| 88688-95733 | ||||
| 88688-95735 | ||||
| 88899-95711 | ||||
| 90099-02210 | ||||
| 90099-05158 | ||||
| 90099-62601 | ||||
| 90159-50203 | ||||
| 90467-09015 | ||||
| 93510-15016 | ||||
| 93510-16016 | ||||
| 93530-25025 | ||||
| 93530-26025 | ||||
| 93540-14012 | ||||
| 94612-10316 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
