YM21G-MQZ (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 2YU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )1YJ,2YU

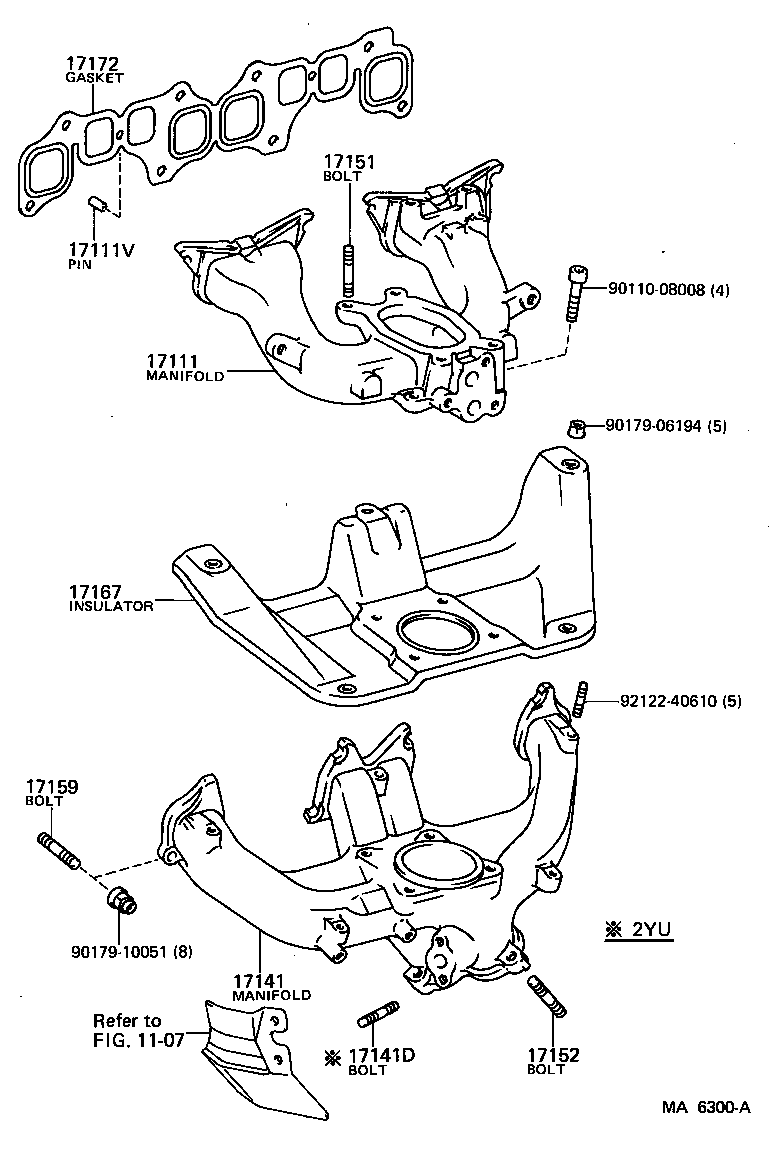

Click highlighted areas on diagram

diagram 1107 17111 17111V 17141 17141D 17151 17152 17159 17167 17172 9011008008 9017906194 9017910051 9212240610
Part # Description Qty Price
17141 - MANIFOLD, EXHAUST
17141-71010

2YU..YM21

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08128

2YU..YM21

L=28,S=8&17

 2
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-71010

1YJ,2YU..YM2#

 1
Common parts
90110-08008
90179-06194
90179-10051
92122-40610
Linked diagrams
1107
