YM21G-HXZ (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 2YU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8210-8508)3FC

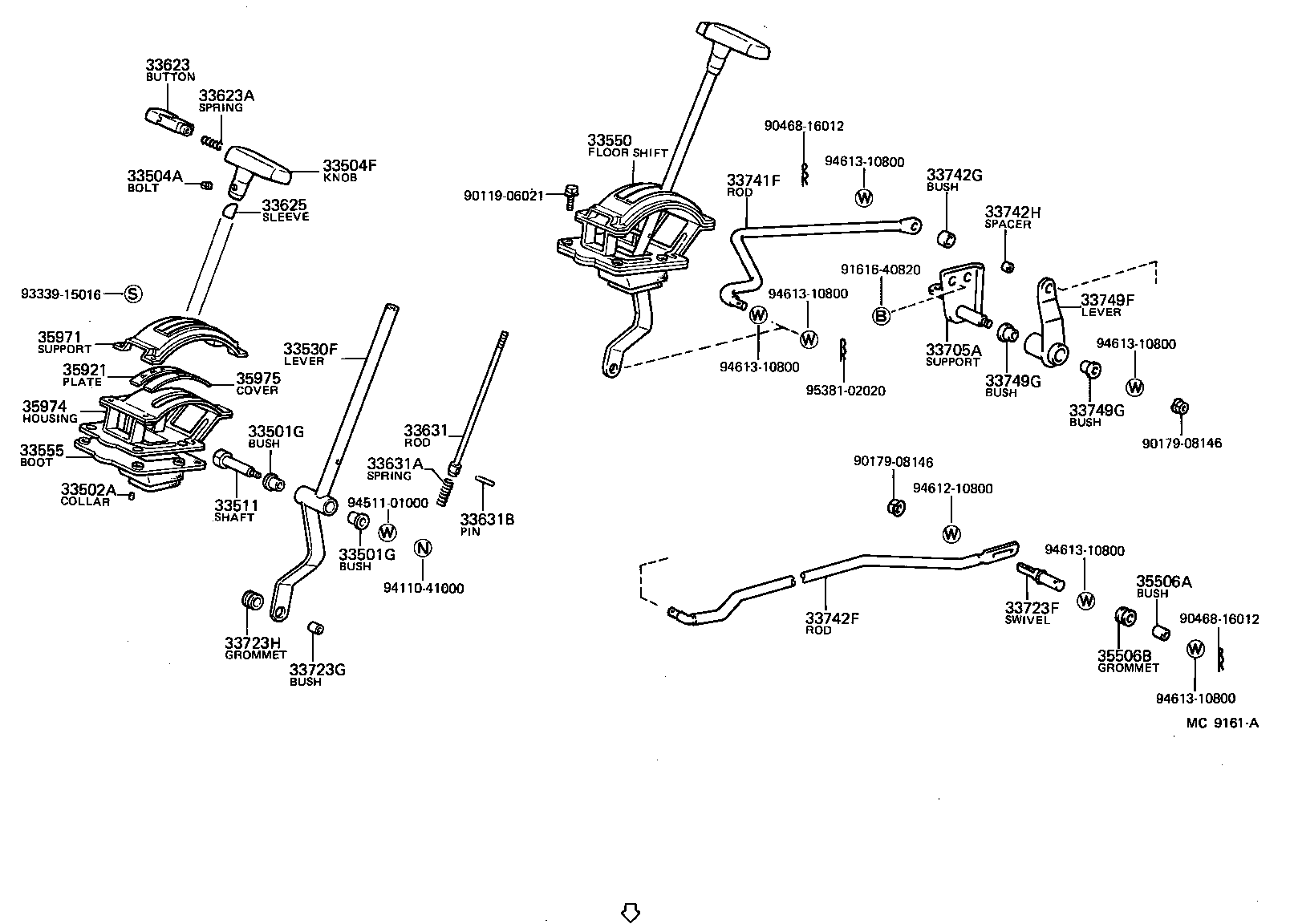

Click highlighted areas on diagram

diagram 33501G 33501G 33502A 33504A 33504F 33511 33530F 33550 33555 33623 33623A 33625 33631 33631A 33631B 33705A 33723F 33723G 33723H 33741F 33742F 33742G 33742H 33749F 33749G 33749G 35506A 35506B 35921 35971 35974 35975 9011906021 9017908146 9017908146 9046816012 9046816012 9161640820 9333915016 9411041000 9451101000 9461210800 9461310800 9461310800 9461310800 9461310800 9461310800 9461310800 9538102020
Part # Description Qty Price
33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING)
90149-40004

YM20,21..3FC

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-1601016

YM21..3FC

BROWN,BROWN

 1
33504-2005213

YM21..S

SHADOW GRAY,GRAY

 1
33542-1601004

YM21..3FC

BLUE GRAY,BLUE

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33503-27041

YM20,21..3FC

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-2701106

YM21..3FC

BROWN,BROWN

 1
33550-2701104

YM21..3FC

BLUE GRAY,BLUE

 1
33555 - BOOT, SHIFT LEVER
33555-14030

YM20,21..3FC

 1
33623 - BUTTON, SHIFT LEVER KNOB
33623-1204036

YM21..3FC

BROWN,BROWN

 1
33623-1204024

YM21..3FC

BLUE GRAY,BLUE

 1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-08017

YM20,21..3FC

 1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-09009

YM20,21..3FC

 1
33705A - SUPPORT SUB-ASSY, CROSS SHAFT
33705-27012

YM20,21..3FC

 1
33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90389-08005

YM20,21..3FC

 1
33741F - ROD, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33741-27041

YM20,21..3FC

 1
33742F - ROD, GEAR SHIFTING, NO.2(FOR FLOOR SHIFT)
33742-27061

YM20,21..3FC

 1
33749F - LEVER, GEAR SHIFT, NO.3 (FOR FLOOR SHIFT)
33749-27041

YM20,21..3FC

 1
33749G - BUSH (FOR FLOOR SHIFT GEAR SHIFTING LEVER)
90386-15110

CM20,TM20,YM20,21..3FC,4F,5F

 2
33749G - BUSH (FOR FLOOR SHIFT GEAR SHIFTING LEVER)
90386-15110

CM20,TM20,YM20,21..3FC,4F,5F

 2
Common parts
90119-06021
90179-08146
90468-16012
91616-40820
93339-15016
94110-41000
94511-01000
94612-10800
94613-10800
95381-02020
