YM21G-HX (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 2YU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8210-8508)YM21

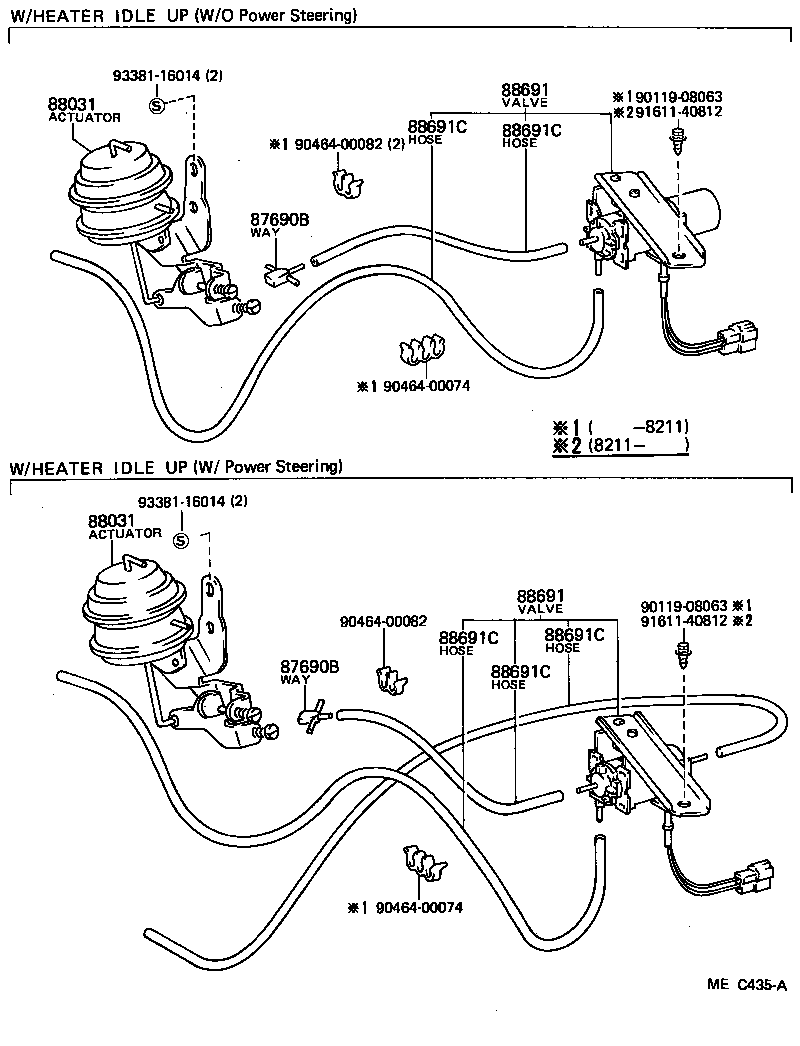

Click highlighted areas on diagram

diagram 87690B 87690B 88031 88031 88691 88691 88691C 88691C 88691C 88691C 88691C 9011908063 9011908063 9046400074 9046400074 9046400082 9046400082 9161140812 9161140812 9338116014 9338116014
Part # Description Qty Price
87690B - WAY, 3
90413-04005

YM2#

 1
87690B - WAY, 3
90413-04005

YM2#

 1
88031 - ACTUATOR SET, IDLE-UP
88031-28010

YM21..CS7,DLX,FXV,GXL,MTP,S,SW,XL

W/COOLER IDLE UP

 1
21908-71010

YM21..05S,06S,08S,09S

W/HEATER IDLE UP

 1
88031 - ACTUATOR SET, IDLE-UP
88031-28010

YM21..CS7,DLX,FXV,GXL,MTP,S,SW,XL

W/COOLER IDLE UP

 1
21908-71010

YM21..05S,06S,08S,09S

W/HEATER IDLE UP

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95713

YM21..FXV,GXL,MTP,S,XL

W/PS

 1
88690-95722

YM21..05S,06S,08S,09S

W/HEATER IDLE UP

 1
88690-95714

YM21

W/HEATER IDLE UP

 1
88690-95723

YM21..CS7,FXV,GXL,MTP,S,SW,XL

W/PS

 1
88690-95719

YM21..CS7,DLX,FXV,GXL,MTP,S,SW,XL

W/COOLER IDLE UP

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95713

YM21..FXV,GXL,MTP,S,XL

W/PS

 1
88690-95722

YM21..05S,06S,08S,09S

W/HEATER IDLE UP

 1
88690-95714

YM21

W/HEATER IDLE UP

 1
88690-95723

YM21..CS7,FXV,GXL,MTP,S,SW,XL

W/PS

 1
88690-95719

YM21..CS7,DLX,FXV,GXL,MTP,S,SW,XL

W/COOLER IDLE UP

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10160

YM21

*H,L=480,ﾏｰｸ=#1,*HIU

 1
95411-10030

YM21..05S,06S,08S,09S

*H,L=140,ﾏｰｸ=#0,*HIU

 1
95411-10130

YM21

*H,L=240,ﾏｰｸ=#1,*HIU

 1
95411-10030

YM21

*H,L=200,ﾏｰｸ=#0,*HIU

 1
95411-10130

YM21..CS7,FXV,GXL,MTP,S,SW,XL

*H,L=180,ﾏｰｸ=#1,*HIU,W/PS

 1
95411-10030

YM21..CS7,FXV,GXL,MTP,S,SW,XL

*H,L=80,ﾏｰｸ=#0,*HIU,W/PS

 1
95411-10160

YM21..FXV,GXL,MTP,S,XL

*H,L=390,ﾏｰｸ=#1,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10160

YM21

*H,L=480,ﾏｰｸ=#1,*HIU

 1
95411-10030

YM21..05S,06S,08S,09S

*H,L=140,ﾏｰｸ=#0,*HIU

 1
95411-10130

YM21

*H,L=240,ﾏｰｸ=#1,*HIU

 1
95411-10030

YM21

*H,L=200,ﾏｰｸ=#0,*HIU

 1
95411-10130

YM21..CS7,FXV,GXL,MTP,S,SW,XL

*H,L=180,ﾏｰｸ=#1,*HIU,W/PS

 1
95411-10030

YM21..CS7,FXV,GXL,MTP,S,SW,XL

*H,L=80,ﾏｰｸ=#0,*HIU,W/PS

 1
95411-10160

YM21..FXV,GXL,MTP,S,XL

*H,L=390,ﾏｰｸ=#1,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10160

YM21

*H,L=480,ﾏｰｸ=#1,*HIU

 1
95411-10030

YM21..05S,06S,08S,09S

*H,L=140,ﾏｰｸ=#0,*HIU

 1
95411-10130

YM21

*H,L=240,ﾏｰｸ=#1,*HIU

 1
95411-10030

YM21

*H,L=200,ﾏｰｸ=#0,*HIU

 1
95411-10130

YM21..CS7,FXV,GXL,MTP,S,SW,XL

*H,L=180,ﾏｰｸ=#1,*HIU,W/PS

 1
95411-10030

YM21..CS7,FXV,GXL,MTP,S,SW,XL

*H,L=80,ﾏｰｸ=#0,*HIU,W/PS

 1
95411-10160

YM21..FXV,GXL,MTP,S,XL

*H,L=390,ﾏｰｸ=#1,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10160

YM21

*H,L=480,ﾏｰｸ=#1,*HIU

 1
95411-10030

YM21..05S,06S,08S,09S

*H,L=140,ﾏｰｸ=#0,*HIU

 1
95411-10130

YM21

*H,L=240,ﾏｰｸ=#1,*HIU

 1
95411-10030

YM21

*H,L=200,ﾏｰｸ=#0,*HIU

 1
95411-10130

YM21..CS7,FXV,GXL,MTP,S,SW,XL

*H,L=180,ﾏｰｸ=#1,*HIU,W/PS

 1
95411-10030

YM21..CS7,FXV,GXL,MTP,S,SW,XL

*H,L=80,ﾏｰｸ=#0,*HIU,W/PS

 1
95411-10160

YM21..FXV,GXL,MTP,S,XL

*H,L=390,ﾏｰｸ=#1,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10160

YM21

*H,L=480,ﾏｰｸ=#1,*HIU

 1
95411-10030

YM21..05S,06S,08S,09S

*H,L=140,ﾏｰｸ=#0,*HIU

 1
95411-10130

YM21

*H,L=240,ﾏｰｸ=#1,*HIU

 1
95411-10030

YM21

*H,L=200,ﾏｰｸ=#0,*HIU

 1
95411-10130

YM21..CS7,FXV,GXL,MTP,S,SW,XL

*H,L=180,ﾏｰｸ=#1,*HIU,W/PS

 1
95411-10030

YM21..CS7,FXV,GXL,MTP,S,SW,XL

*H,L=80,ﾏｰｸ=#0,*HIU,W/PS

 1
95411-10160

YM21..FXV,GXL,MTP,S,XL

*H,L=390,ﾏｰｸ=#1,W/PS

 1
Common parts
90119-08063
90464-00074
90464-00082
91611-40812
93381-16014

(8210- )KM21,YM2#

Click highlighted areas on diagram

diagram 8271112200 88031 88031 88691 88691 88691 88691C 88691C 9040451093 9041304001 9046400074 9046400074 9046400082 9161160812
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-28010

YM21..CS7,DLX,FXV,GXL,MTP,S,SW,XL

W/COOLER IDLE UP

 1
21908-71010

YM21..05S,06S,08S,09S

W/HEATER IDLE UP

 1
88031 - ACTUATOR SET, IDLE-UP
88031-28010

YM21..CS7,DLX,FXV,GXL,MTP,S,SW,XL

W/COOLER IDLE UP

 1
21908-71010

YM21..05S,06S,08S,09S

W/HEATER IDLE UP

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95713

YM21..FXV,GXL,MTP,S,XL

W/PS

 1
88690-95722

YM21..05S,06S,08S,09S

W/HEATER IDLE UP

 1
88690-95714

YM21

W/HEATER IDLE UP

 1
88690-95723

YM21..CS7,FXV,GXL,MTP,S,SW,XL

W/PS

 1
88690-95719

YM21..CS7,DLX,FXV,GXL,MTP,S,SW,XL

W/COOLER IDLE UP

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95713

YM21..FXV,GXL,MTP,S,XL

W/PS

 1
88690-95722

YM21..05S,06S,08S,09S

W/HEATER IDLE UP

 1
88690-95714

YM21

W/HEATER IDLE UP

 1
88690-95723

YM21..CS7,FXV,GXL,MTP,S,SW,XL

W/PS

 1
88690-95719

YM21..CS7,DLX,FXV,GXL,MTP,S,SW,XL

W/COOLER IDLE UP

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95713

YM21..FXV,GXL,MTP,S,XL

W/PS

 1
88690-95722

YM21..05S,06S,08S,09S

W/HEATER IDLE UP

 1
88690-95714

YM21

W/HEATER IDLE UP

 1
88690-95723

YM21..CS7,FXV,GXL,MTP,S,SW,XL

W/PS

 1
88690-95719

YM21..CS7,DLX,FXV,GXL,MTP,S,SW,XL

W/COOLER IDLE UP

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10160

YM21

*H,L=480,ﾏｰｸ=#1,*HIU

 1
95411-10030

YM21..05S,06S,08S,09S

*H,L=140,ﾏｰｸ=#0,*HIU

 1
95411-10130

YM21

*H,L=240,ﾏｰｸ=#1,*HIU

 1
95411-10030

YM21

*H,L=200,ﾏｰｸ=#0,*HIU

 1
95411-10130

YM21..CS7,FXV,GXL,MTP,S,SW,XL

*H,L=180,ﾏｰｸ=#1,*HIU,W/PS

 1
95411-10030

YM21..CS7,FXV,GXL,MTP,S,SW,XL

*H,L=80,ﾏｰｸ=#0,*HIU,W/PS

 1
95411-10160

YM21..FXV,GXL,MTP,S,XL

*H,L=390,ﾏｰｸ=#1,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10160

YM21

*H,L=480,ﾏｰｸ=#1,*HIU

 1
95411-10030

YM21..05S,06S,08S,09S

*H,L=140,ﾏｰｸ=#0,*HIU

 1
95411-10130

YM21

*H,L=240,ﾏｰｸ=#1,*HIU

 1
95411-10030

YM21

*H,L=200,ﾏｰｸ=#0,*HIU

 1
95411-10130

YM21..CS7,FXV,GXL,MTP,S,SW,XL

*H,L=180,ﾏｰｸ=#1,*HIU,W/PS

 1
95411-10030

YM21..CS7,FXV,GXL,MTP,S,SW,XL

*H,L=80,ﾏｰｸ=#0,*HIU,W/PS

 1
95411-10160

YM21..FXV,GXL,MTP,S,XL

*H,L=390,ﾏｰｸ=#1,W/PS

 1
Common parts
82711-12200
90404-51093
90413-04001
90464-00074
90464-00082
91611-60812
