YM21G-HX (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 2YU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )1YJ,2YU

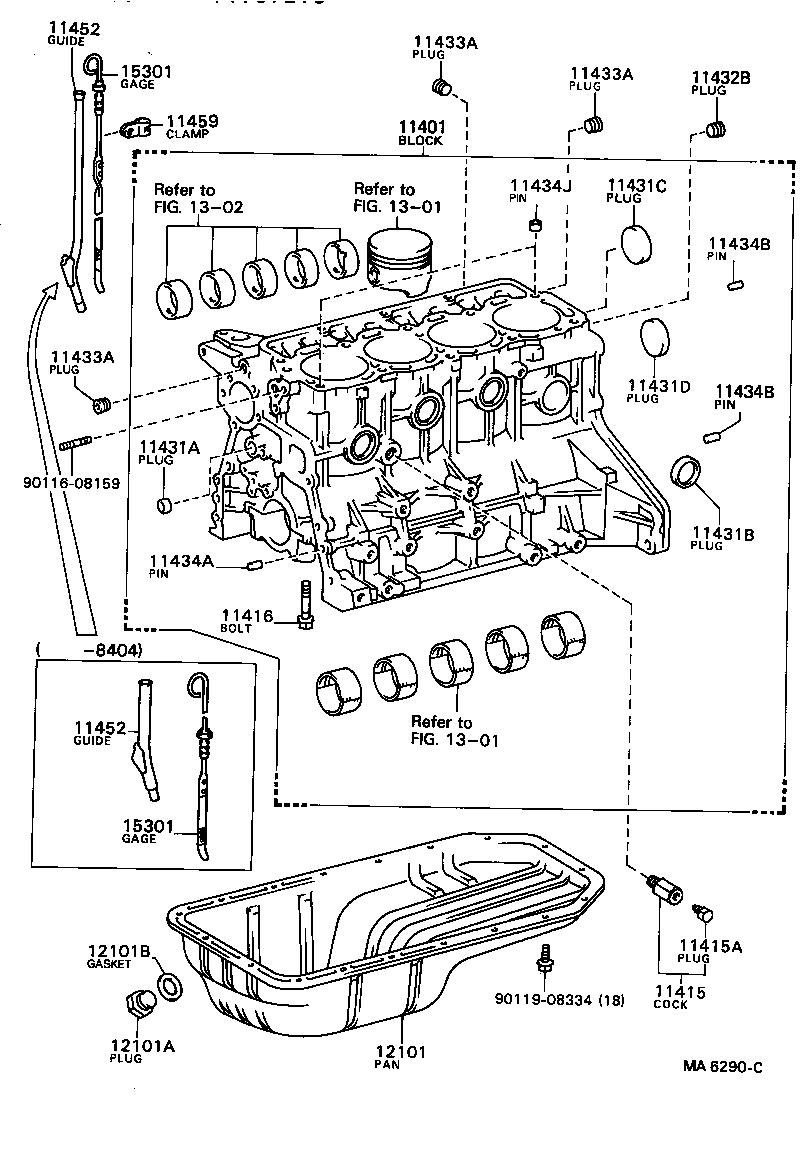

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11431A 11431B 11431C 11431D 11432B 11433A 11433A 11433A 11434A 11434B 11434B 11434J 11452 11452 11459 12101 12101A 12101B 1301 1301 1302 15301 15301 9011608159 9011908334
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-79065

2YU..YM21

 1
11401-79066

2YU..YM21

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96431-03833

1YJ,2YU..YM2#

 1
90910-09070

1YJ,2YU..YM2#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09072

1YJ,2YU..YM2#

 1
96431-23814

1YJ,2YU..YM2#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02032

1YJ,2YU..YM2#

*12-1.25PX62-21

 10
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90344-53002

1YJ,2YU..YM2#

 1
11433A - PLUG, STRAIGHT, NO.1
90344-51005

1YJ,2YU..YM2#

 3
90344-51014

1YJ,2YU..YM2#

 3
11433A - PLUG, STRAIGHT, NO.1
90344-51005

1YJ,2YU..YM2#

 3
90344-51014

1YJ,2YU..YM2#

 3
11433A - PLUG, STRAIGHT, NO.1
90344-51005

1YJ,2YU..YM2#

 3
90344-51014

1YJ,2YU..YM2#

 3
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

1YJ,2YU..YM2#

長さ=18,外径=8,L=18,OD=8

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-08120

1YJ,2YU..YM2#

長さ=18,外径=8,L=18,OD=8

 2
90250-10113

1YJ,2YU..YM2#

長さ=22,外径=10,L=22,OD=10

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-08120

1YJ,2YU..YM2#

長さ=18,外径=8,L=18,OD=8

 2
90250-10113

1YJ,2YU..YM2#

長さ=22,外径=10,L=22,OD=10

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-71010

1YJ,2YU..YM2#

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-71010

1YJ,2YU..YM2#

 1
12101 - PAN SUB-ASSY, OIL
12101-71010

1YJ,2YU..YM2#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

1YJ,2YU..YM2#

*18-1.5PX12-10

 1
90341-18089

1YJ,2YU..YM2#

*18-1.5PX12-10

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12009

1YJ,2YU..YM2#

ID=12

 1
90430-18244

1YJ,2YU..YM2#

ID=18

 1
90430-18244

1YJ,2YU..YM2#

ID=18

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-71010

1YJ,2YU..YM2#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-71010

1YJ,2YU..YM2#

 1
Common parts
90116-08159
90119-08334
Linked diagrams
1301
1302
