YM21G-HSZ (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 2YU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )1YJ,2YU

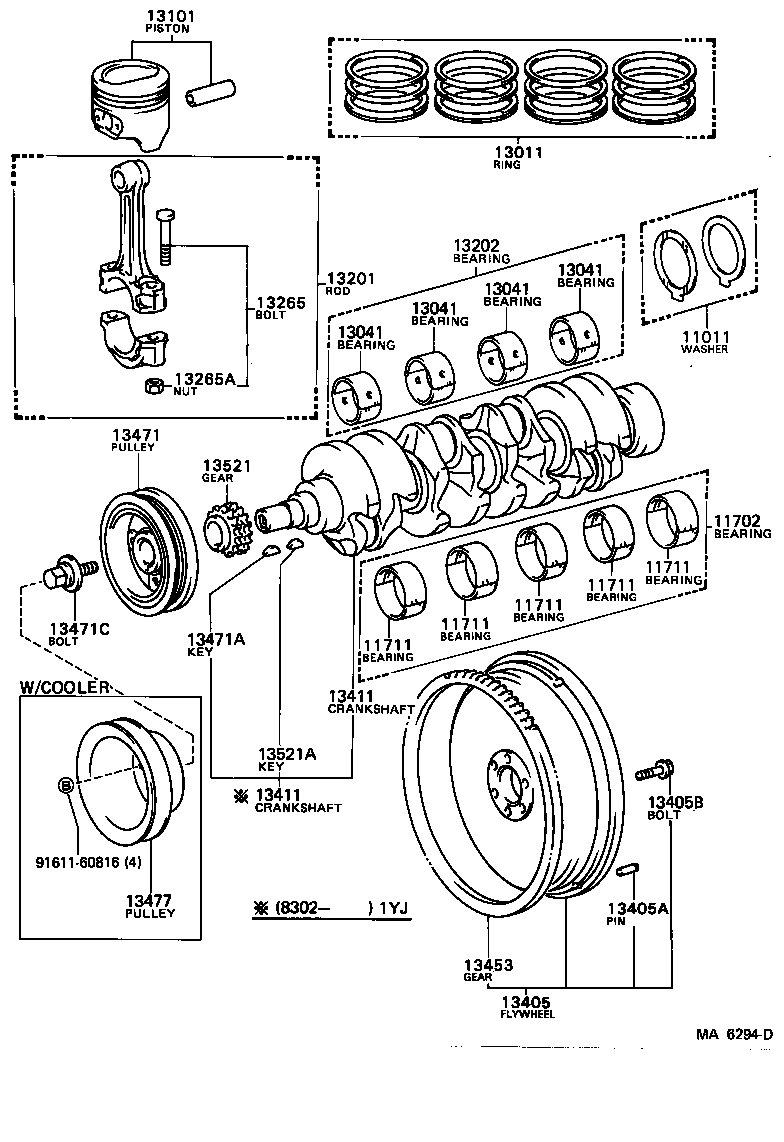

Click highlighted areas on diagram

diagram 11011 11702 11711 11711 11711 11711 11711 13011 13041 13041 13041 13041 13101 13201 13202 13265 13265A 13405 13405A 13405B 13411 13411 13453 13471 13471A 13471C 13477 13521 13521A 9161160816
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-25010

1YJ,2YU..YM2#

STD

 1
13101 - PISTON SUB-ASSY, W/PIN
13103-72010

2YU..YM21

O/S 0.50,O/S 0.50

 4
13104-72010

2YU..YM21

O/S 0.75,O/S 0.75

 4
13105-72010

2YU..YM21

O/S 1.00,O/S 1.00

 4
13101-72010

2YU..YM21

STD,STD

 4
13265 - BOLT, CONNECTING ROD
13265-29025

1YJ,2YU..YM2#

 8
13411 - CRANKSHAFT
13411-72010

2YU..YM21

 1
13411 - CRANKSHAFT
13411-72010

2YU..YM21

 1
13471 - PULLEY, CRANKSHAFT
13408-71010

1YJ,2YU..YM2#

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05010

1YJ,2YU..YM2#

 1
13477 - PULLEY, CRANKSHAFT, NO.2
88451-28010

2YU..YM21..CS7,DLX,FXV,GXL,MTP,S,SW,XL

W/*ODAC

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-33010

1YJ,2YU..YM2#

N=18

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

1YJ,2YU..YM2#

 1
Common parts
91611-60816
