YM21G-HQZ (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 2YU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8210-8508)FXV

Click highlighted areas on diagram

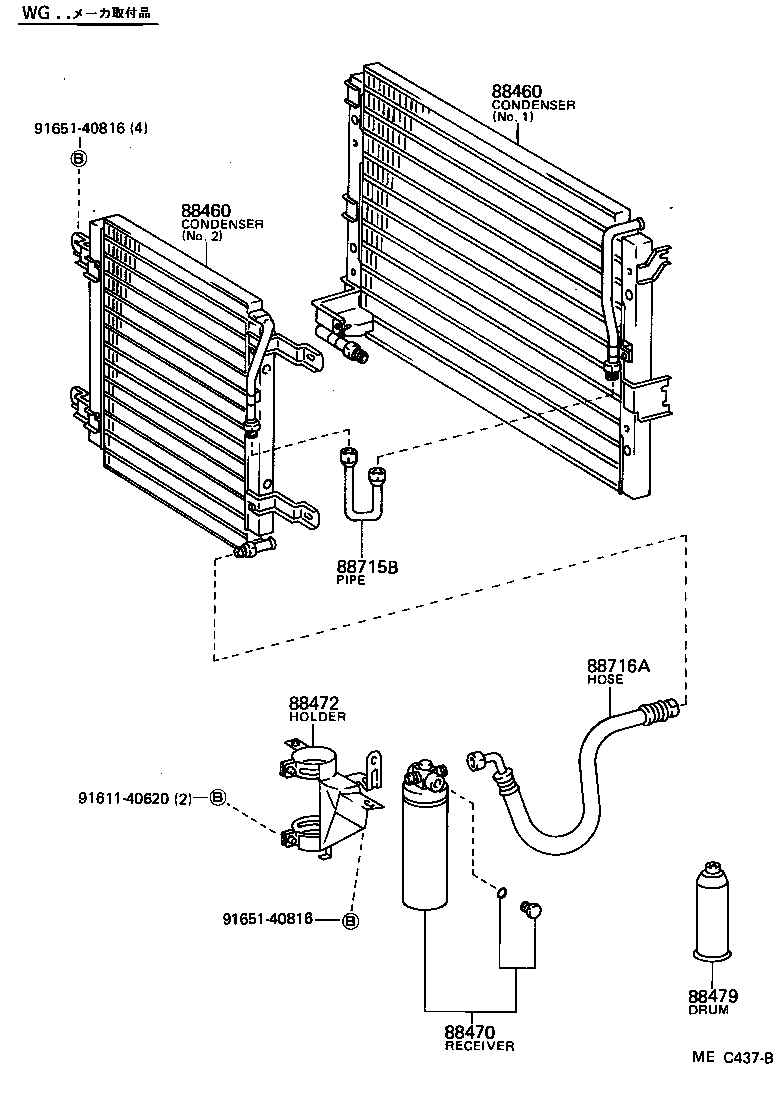

diagram 88460 88460 88470 88472 88479 88715B 88716A 9161140620 9165140816 9165140816
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-95708

CM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

NO.2

 1
88460-95707

CM2#,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

NO.1

 1
88460 - CONDENSER ASSY, COOLER
88460-95708

CM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

NO.2

 1
88460-95707

CM2#,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

NO.1

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95700

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95702

CM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

CM2#,KM2#,TM20,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

400G

 4
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88716-95727

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88721-87001

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
Common parts
91611-40620
91651-40816

ILLUST NO. 2 OF 2(8210-8508)FXV

Click highlighted areas on diagram

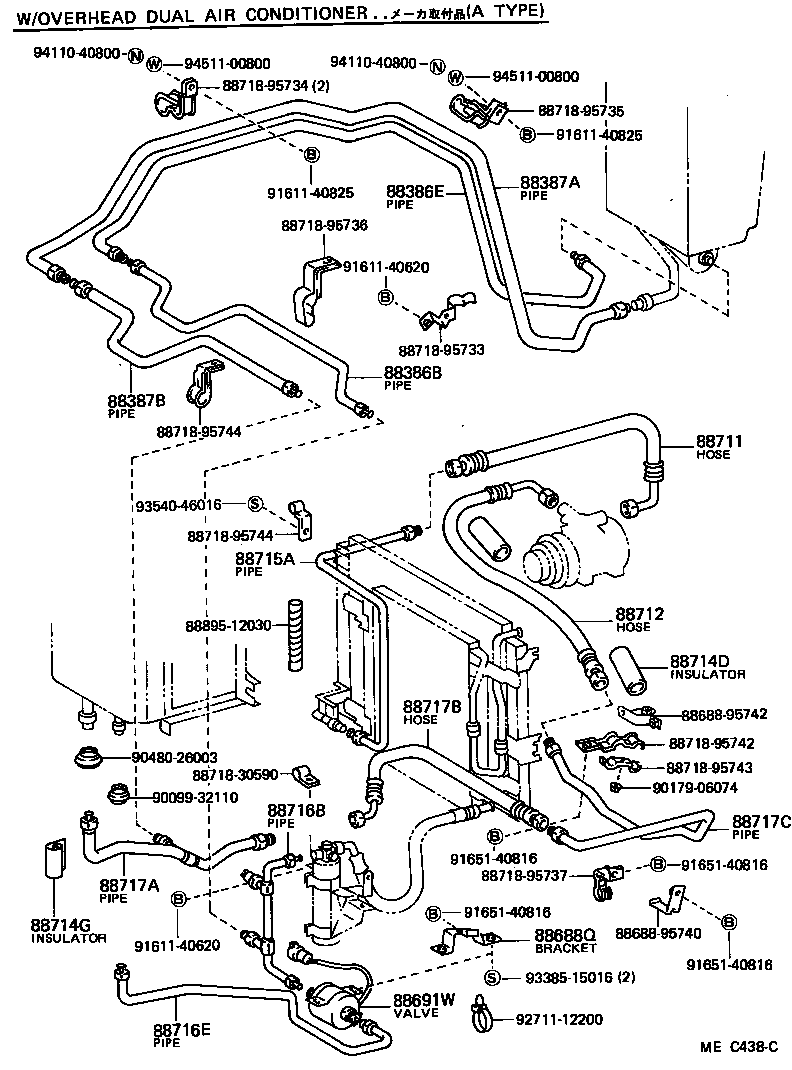

diagram 88386B 88386E 88387A 88387B 8868895740 8868895742 88688Q 88691W 88711 88712 88714D 88714G 88715A 88716B 88716E 88717A 88717B 88717C 8871830590 8871895733 8871895734 8871895735 8871895736 8871895737 8871895742 8871895743 8871895744 8871895744 8889512030 9009932110 9017906074 9048026003 9161140620 9161140620 9161140825 9161140825 9165140816 9165140816 9165140816 9165140816 9271112200 9338515016 9354046016 9411040800 9411040800 9451100800 9451100800
Part # Description Qty Price
88386B - PIPE, REAR COOLER REFRIGERANT LIQUID, B
88716-95721

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
88386E - PIPE, REAR COOLER REFRIGERANT LIQUID, E (TO COOLER UNIT
88716-95720

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
88387A - PIPE, RR COOLER REFRIGERANT SUCTION, A (FROM COOLER UNI
88717-95714

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
88387B - PIPE, REAR COOLER REFRIGERANT SUCTION, B
88717-95715

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
88688Q - BRACKET (FOR MAGNET VALVE)
88688-95736

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
88691W - VALVE, MAGNET
88691-95702

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95713

YM20,21..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14510

YM20,21..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88714D - INSULATOR, COOLER REFRIGERANT HOSE, NO.2
88714-20030

CM2#,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

L=180,OD=38

 8
88714G - INSULATOR, COOLER REFRIGERANT PIPE, NO.1
88592-30190

CM2#,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 2
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-95700

YM20,21..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95726

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-95724

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

W/*ODAC

 1
88716-95722

CM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95718

YM21..FXV

W/*ODAC,A TYPE

 1
88717-95717

KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
88717-95719

YM21..FXV

W/*ODAC,A TYPE

 1
88717-95719

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

W/*ODAC,B TYPE

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88712-87002

YM20,21..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-95720

KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
Common parts
88688-95740
88688-95742
88718-30590
88718-95733
88718-95734
88718-95735
88718-95736
88718-95737
88718-95742
88718-95743
88718-95744
88895-12030
90099-32110
90179-06074
90480-26003
91611-40620
91611-40825
91651-40816
92711-12200
93385-15016
93540-46016
94110-40800
94511-00800

ILLUST NO. 1 OF 2(8210- )

Click highlighted areas on diagram

diagram 5307395701 5307495701 5372995701 88460 88460 88460 88470 88470B 88472 8857895704 88715B 88716A 8889595710 8889595711 8889595714 9338516035 9338518016 9338518020 9338518020 9356014010 9356014010 9356014010
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-95708

CM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

NO.2

 1
88460-95707

CM2#,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

NO.1

 1
88460 - CONDENSER ASSY, COOLER
88460-95708

CM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

NO.2

 1
88460-95707

CM2#,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

NO.1

 1
88460 - CONDENSER ASSY, COOLER
88460-95708

CM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

NO.2

 1
88460-95707

CM2#,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

NO.1

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95700

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95702

CM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88716-95727

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88721-87001

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
Common parts
53073-95701
53074-95701
53729-95701
88578-95704
88895-95710
88895-95711
88895-95714
93385-16035
93385-18016
93385-18020
93560-14010

ILLUST NO. 2 OF 2(8210-8508)

Click highlighted areas on diagram

diagram 8271195704 8837530270 8837530270 88386B 88386E 88387A 88387B 88479 88645H 8868895740 8868895742 88688Q 88691W 88711 88711 88712 88712 8871422030 88714D 88714D 88714G 88715A 88716B 88716E 88717A 88717B 88717C 8871830590 8871895733 8871895734 8871895735 8871895735 8871895736 8871895737 8871895737 8871895742 8871895743 8871895744 8871895745 8871895747 8889512030 9009900930 9009900930 9009914044 9009914044 9009914044 9009914044 9009914045 9009914045 9009914045 9009914045 9009914045 9009914045 9009914046 9009914046 9009914046 9009914056 9009932110 9017908123 9017908123 9048026003 9338516010 9338516020 9338516020 9338518016 9338518016 9338518020 9338518020 9338518020 9338518020 9338518020 9338518020 9338518020 9338518020 9338518030 9338518030
Part # Description Qty Price
88386B - PIPE, REAR COOLER REFRIGERANT LIQUID, B
88716-95721

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
88386E - PIPE, REAR COOLER REFRIGERANT LIQUID, E (TO COOLER UNIT
88716-95720

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
88387A - PIPE, RR COOLER REFRIGERANT SUCTION, A (FROM COOLER UNI
88717-95714

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
88387B - PIPE, REAR COOLER REFRIGERANT SUCTION, B
88717-95715

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

CM2#,KM2#,TM20,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

400G

 4
88645H - SWITCH, PRESSURE NO.1
88645-12020

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
88688Q - BRACKET (FOR MAGNET VALVE)
88688-95736

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
88691W - VALVE, MAGNET
88691-95702

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95713

YM20,21..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95713

YM20,21..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14510

YM20,21..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14510

YM20,21..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88714D - INSULATOR, COOLER REFRIGERANT HOSE, NO.2
88714-20030

CM2#,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

L=180,OD=38

 8
88714D - INSULATOR, COOLER REFRIGERANT HOSE, NO.2
88714-20030

CM2#,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

L=180,OD=38

 8
88714G - INSULATOR, COOLER REFRIGERANT PIPE, NO.1
88592-30190

CM2#,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 2
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-95700

YM20,21..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95726

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-95724

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

W/*ODAC

 1
88716-95722

CM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95718

YM21..FXV

W/*ODAC,A TYPE

 1
88717-95717

KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
88717-95719

YM21..FXV

W/*ODAC,A TYPE

 1
88717-95719

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

W/*ODAC,B TYPE

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88712-87002

YM20,21..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-95720

KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
Common parts
82711-95704
88375-30270
88688-95740
88688-95742
88714-22030
88718-30590
88718-95733
88718-95734
88718-95735
88718-95736
88718-95737
88718-95742
88718-95743
88718-95744
88718-95745
88718-95747
88895-12030
90099-00930
90099-14044
90099-14045
90099-14046
90099-14056
90099-32110
90179-08123
90480-26003
93385-16010
93385-16020
93385-18016
93385-18020
93385-18030

ILLUST NO. 2 OF 2(8210- )

Click highlighted areas on diagram

diagram 8837530270 8837532070 88470 88470 88470B 88470B 88472 88472 88479 88479 8859230190 8859230190 88711 88711 88712 88712 88714 88714 8871414010 8871414010 8871420030 8871420030 8871422030 8871422030 8871422030 8871422030 88714A 88716A 88716E 88717A 8871830590 8871860050 8871895746 8871895747 8871895747 8889512030 8889512030 9009914044 9009914044 9009914044 9009914044 9009914044 9009914045 9009914045 9009914045 9009914046 9009914046 9009932092 9009932110 9017908123 9048026003 9048026004 9338516020 9338516020 9338516020 9338518020 9338518020 9338518020 9338518020 9338518020 9338616016
Part # Description Qty Price
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95700

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95700

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95702

CM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95702

CM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

CM2#,KM2#,TM20,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

400G

 4
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

CM2#,KM2#,TM20,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

400G

 4
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95713

YM20,21..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95713

YM20,21..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14510

YM20,21..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14510

YM20,21..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88721-87001

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-95724

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

W/*ODAC

 1
88716-95722

CM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95718

YM21..FXV

W/*ODAC,A TYPE

 1
88717-95717

KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
88717-95719

YM21..FXV

W/*ODAC,A TYPE

 1
88717-95719

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

W/*ODAC,B TYPE

 1
Common parts
88375-30270
88375-32070
88592-30190
88714-14010
88714-20030
88714-22030
88718-30590
88718-60050
88718-95746
88718-95747
88895-12030
90099-14044
90099-14045
90099-14046
90099-32092
90099-32110
90179-08123
90480-26003
90480-26004
93385-16020
93385-18020
93386-16016

ILLUST NO. 2 OF 2(8210- )

Click highlighted areas on diagram

diagram 1338516020 8271195704 8837530270 88470 88470 88470B 88470B 88472 88472 88479 88479 8868895740 8868895742 88711 88711 88712 88712 8871414010 8871422030 88714A 88714D 88714D 88714G 88714G 88715A 88716A 88716A 88716B 88716E 88717A 88717B 88717C 8871830590 8871860050 8871895737 8871895737 8871895741 8871895742 8871895743 8871895744 8871895746 8873530270 8889512030 8889512030 9009914044 9009914044 9009914044 9009914044 9009914044 9009914045 9009914045 9009914045 9009914045 9009914046 9009914046 9009914046 9009932092 9009932110 9017908123 9048026003 9048026004 9338516020 9338516020 9338518016 9338518016 9338518020 9338518020 9338518020 9338518020 9338518020 9338518020 9338518020 9338616016
Part # Description Qty Price
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95700

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95700

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95702

CM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95702

CM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

CM2#,KM2#,TM20,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

400G

 4
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

CM2#,KM2#,TM20,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

400G

 4
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95713

YM20,21..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95713

YM20,21..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14510

YM20,21..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14510

YM20,21..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88714D - INSULATOR, COOLER REFRIGERANT HOSE, NO.2
88714-20030

CM2#,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

L=180,OD=38

 8
88714D - INSULATOR, COOLER REFRIGERANT HOSE, NO.2
88714-20030

CM2#,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

L=180,OD=38

 8
88714G - INSULATOR, COOLER REFRIGERANT PIPE, NO.1
88592-30190

CM2#,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 2
88714G - INSULATOR, COOLER REFRIGERANT PIPE, NO.1
88592-30190

CM2#,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 2
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-95700

YM20,21..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88721-87001

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88721-87001

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95726

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-95724

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

W/*ODAC

 1
88716-95722

CM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95718

YM21..FXV

W/*ODAC,A TYPE

 1
88717-95717

KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
88717-95719

YM21..FXV

W/*ODAC,A TYPE

 1
88717-95719

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

W/*ODAC,B TYPE

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88712-87002

YM20,21..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-95720

KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
Common parts
13385-16020
82711-95704
88375-30270
88688-95740
88688-95742
88714-14010
88714-22030
88718-30590
88718-60050
88718-95737
88718-95741
88718-95742
88718-95743
88718-95744
88718-95746
88735-30270
88895-12030
90099-14044
90099-14045
90099-14046
90099-32092
90099-32110
90179-08123
90480-26003
90480-26004
93385-16020
93385-18016
93385-18020
93386-16016

ILLUST NO. 2 OF 2(8210- )

Click highlighted areas on diagram

diagram 8271195704 8271195704 88470 88470 88470B 88470B 88472 88472 88479 88479 88711 88711 88712 88712 8871422030 8871422030 8871495702 8871495702 88714A 88714D 88714D 88714D 88714G 88714G 88716A 88716A 88716B 88716E 88717A 8871830590 8871860050 8871895745 8871895746 8871895747 8871895747 8871895748 8873530270 8873530270 8889512030 9009914044 9009914044 9009914044 9009914044 9009914044 9009914045 9009914045 9009914045 9009914046 9009914046 9009932092 9009932110 9017908123 9048026003 9048026003 9338516020 9338516020 9338516020 9338518020 9338518020 9338518020 9338518020 9338518020 9338518020 9338518020 9338616016
Part # Description Qty Price
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95700

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95700

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95702

CM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95702

CM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

CM2#,KM2#,TM20,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

400G

 4
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

CM2#,KM2#,TM20,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

400G

 4
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95713

YM20,21..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95713

YM20,21..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14510

YM20,21..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14510

YM20,21..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88714D - INSULATOR, COOLER REFRIGERANT HOSE, NO.2
88714-20030

CM2#,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

L=180,OD=38

 8
88714D - INSULATOR, COOLER REFRIGERANT HOSE, NO.2
88714-20030

CM2#,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

L=180,OD=38

 8
88714D - INSULATOR, COOLER REFRIGERANT HOSE, NO.2
88714-20030

CM2#,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

L=180,OD=38

 8
88714G - INSULATOR, COOLER REFRIGERANT PIPE, NO.1
88592-30190

CM2#,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 2
88714G - INSULATOR, COOLER REFRIGERANT PIPE, NO.1
88592-30190

CM2#,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 2
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88721-87001

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88721-87001

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95726

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-95724

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

W/*ODAC

 1
88716-95722

CM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95718

YM21..FXV

W/*ODAC,A TYPE

 1
88717-95717

KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
88717-95719

YM21..FXV

W/*ODAC,A TYPE

 1
88717-95719

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

W/*ODAC,B TYPE

 1
Common parts
82711-95704
88714-22030
88714-95702
88718-30590
88718-60050
88718-95745
88718-95746
88718-95747
88718-95748
88735-30270
88895-12030
90099-14044
90099-14045
90099-14046
90099-32092
90099-32110
90179-08123
90480-26003
93385-16020
93385-18020
93386-16016
