YM21G-HQZ (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 2YU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8210-8508)2YU

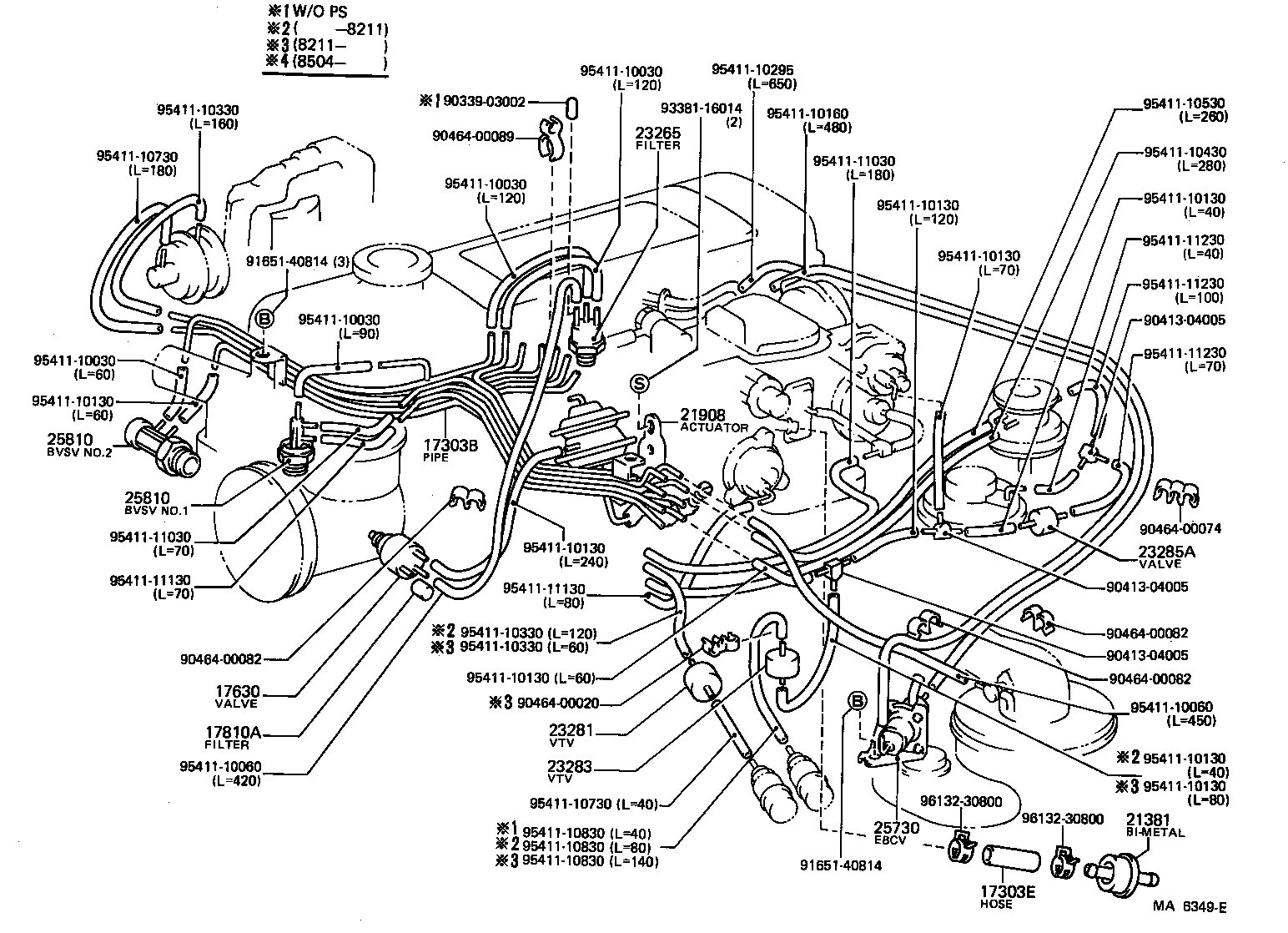

Click highlighted areas on diagram

diagram 17303B 17303E 17630 17810A 21381 21908 23265 23281 23283 23285A 25730 25810 25810 9033903002 9041304005 9041304005 9041304005 9046400020 9046400074 9046400082 9046400082 9046400082 9046400089 9165140814 9165140814 9338116014 9541110030 9541110030 9541110030 9541110030 9541110060 9541110060 9541110130 9541110130 9541110130 9541110130 9541110130 9541110130 9541110130 9541110130 9541110160 9541110295 9541110330 9541110330 9541110330 9541110430 9541110530 9541110730 9541110730 9541110830 9541110830 9541110830 9541111030 9541111030 9541111130 9541111130 9541111230 9541111230 9541111230 9613230800 9613230800
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-71010

2YU..YM21

 1
21381 - BIMETAL, THERMOSTATIC
21381-71010

1YJ,2YU..YM2#

 1
21908 - ACTUATOR SUB-ASSY, IDLE-UP
21908-71010

2YU..YM21..HRF..XL;2YU..YM21..05S,06S,07S,08S

W/PS

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01027

2YU..YM21

 1
23283 - VALVE, VACUUM TRANSMITTING, NO.3
90925-01027

2YU..YM21

 1
23285A - VALVE, CHECK, NO.1
90917-10049

2YU..YM21

 1
25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL
25730-71010

2YU..YM21

 1
25810 - VALVE ASSY, BIMETAL
25810-27010

2YU..YM21

NO.1

 1
25820-37010

2YU..YM21

NO.2

 1
25810 - VALVE ASSY, BIMETAL
25810-27010

2YU..YM21

NO.1

 1
25820-37010

2YU..YM21

NO.2

 1
Common parts
90339-03002
90413-04005
90464-00020
90464-00074
90464-00082
90464-00089
91651-40814
93381-16014
95411-10030
95411-10060
95411-10130
95411-10160
95411-10295
95411-10330
95411-10430
95411-10530
95411-10730
95411-10830
95411-11030
95411-11130
95411-11230
96132-30800
