YM21G-HQZ (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 2YU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )1YJ,2YU

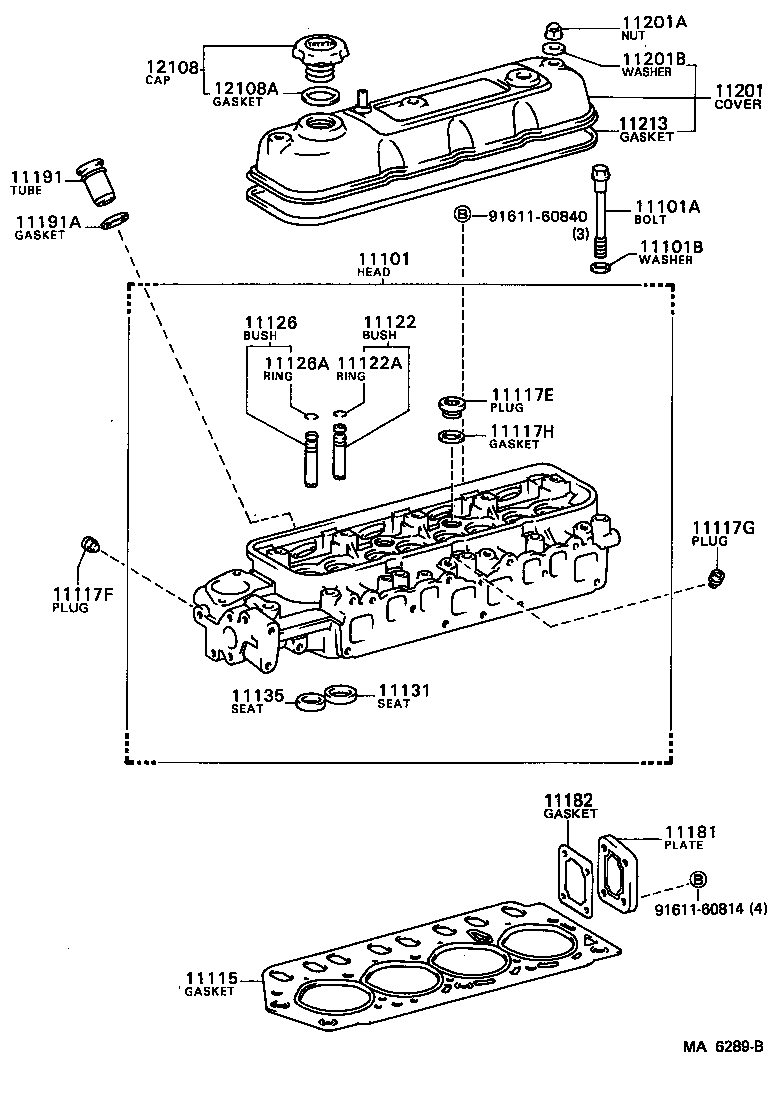

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11115 11117E 11117F 11117G 11117H 11122 11122A 11126 11126A 11131 11135 11181 11182 11191 11191A 11201 11201A 11201B 11213 12108 12108A 9161160814 9161160840
Part # Description Qty Price
11115 - GASKET, CYLINDER HEAD
11115-71010

1YJ,2YU..YM2#

 1
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

1YJ,2YU..YM2#

 4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

1YJ,2YU..YM2#

 4
11191 - TUBE, SPARK PLUG
11191-22010

1YJ,2YU..YM2#

 4
11191A - GASKET(FOR SPARK PLUG TUBE)
90430-31141

1YJ,2YU..YM2#

 4
12108 - CAP SUB-ASSY, OIL FILLER
12180-71010

1YJ,2YU..YM2#

 1
12108A - GASKET(FOR OIL FILLER CAP)
12195-71010

1YJ,2YU..YM2#

 1
Common parts
91611-60814
91611-60840
