YM20V-QNZT (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1YJ
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )YM20,21..MTM

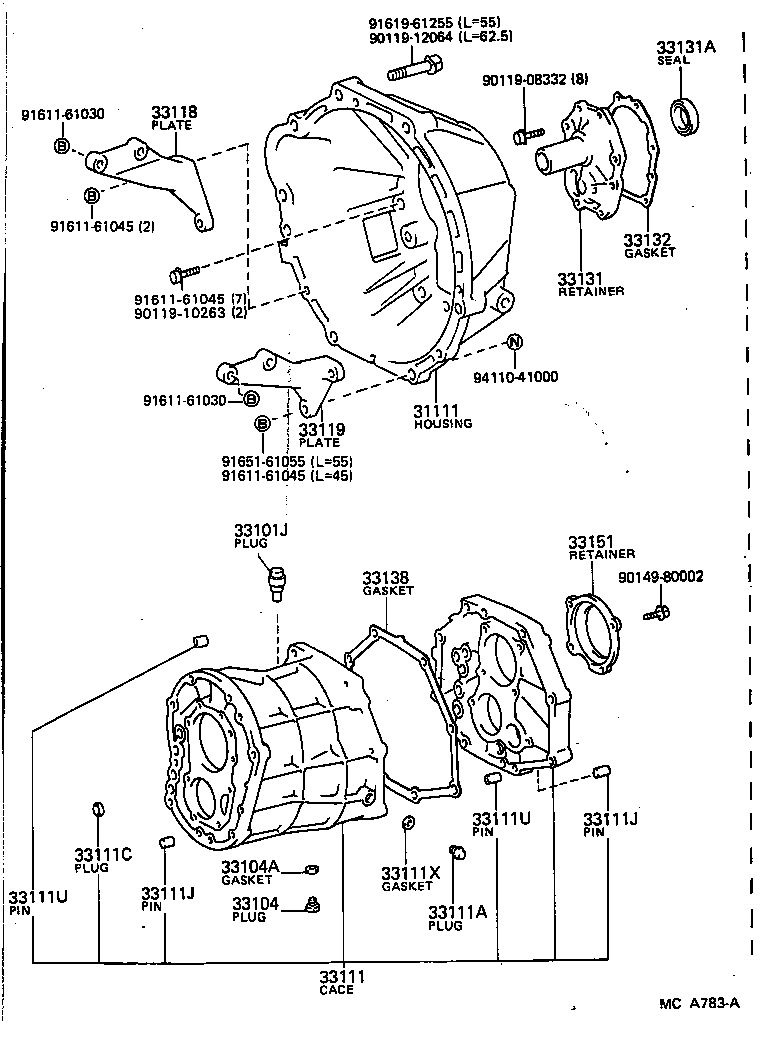

Click highlighted areas on diagram

diagram 31111 33101J 33104 33104A 33111 33111A 33111C 33111J 33111J 33111U 33111U 33111X 33118 33119 33131 33131A 33132 33138 33151 9011908332 9011910263 9011912064 9014980002 9161161030 9161161030 9161161045 9161161045 9161161045 9161961255 9165161055 9411041000
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-30180

YM20,21..MTM

 1
33101J - PLUG, BREATHER
90930-03075

CM2#,YM20,21..MTM

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

CM2#,KM2#,TM20,YM2#..MTM

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002

CM2#,YM20,21..MTM

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-28010

CM2#,YM20,21..MTM

 1
Common parts
90119-08332
90119-10263
90119-12064
90149-80002
91611-61030
91611-61045
91619-61255
91651-61055
94110-41000
