YM20V-QNZFT (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1YJ
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(7910-8508)V

Click highlighted areas on diagram

diagram 70021 70022 70023 70024 71350 71360 71514 71809 71812 71948 72701 9015960126 9020213066 9044628284 9044628284 9095001217 9161160816 9161160816 9165161022 9353054016 9451100800
Part # Description Qty Price
70021 - CUSHION ASSY, NO.2 SEAT
71410-95762

KM21,YM20..VSG..SUP

VL PRINT

 1
70022 - BACK ASSY, NO.2 SEAT
71450-95746

KM21,YM20..VSG..SUP

VL PRINT

 1
70023 - COVER ASSY, NO.2 SEAT CUSHION
71408-95744

KM21,YM20..VSG..SUP

VL PRINT

 1
70024 - COVER ASSY, NO.2 SEAT BACK
71409-95744

KM21,YM20..VSG..SUP

VL PRINT

 1
71350 - LINK ASSY, REAR SEAT BACK CUSHION, RH
71480-95716

CM20,KM21,YM20..05S,06S

 1
71360 - LINK ASSY, REAR SEAT BACK CUSHION, LH
71490-95704

CM20,KM21,YM20..05S,06S

 1
71514 - PIN, REAR SEAT BACK STOPPER
71447-95701

CM20,KM2#,YM20..05S,06S

 1
71809 - STOPPER SUB-ASSY, REAR SEAT BACK, LH
71440-95717

CM20,YM20..06S..WT

 1
71948 - PROTECTOR, PASSENGER SEAT BACK
71498-9570305

CM20,KM21,YM20,21..05S,06S

BEIGE,BEIGE

 3
72701 - BRACKET SUB-ASSY, REAR SEAT BACK STOPPER
71448-9570305

CM20,KM21,YM20..05S,06S

BEIGE,BEIGE

 1
Common parts
90159-60126
90202-13066
90446-28284
90950-01217
91611-60816
91651-61022
93530-54016
94511-00800

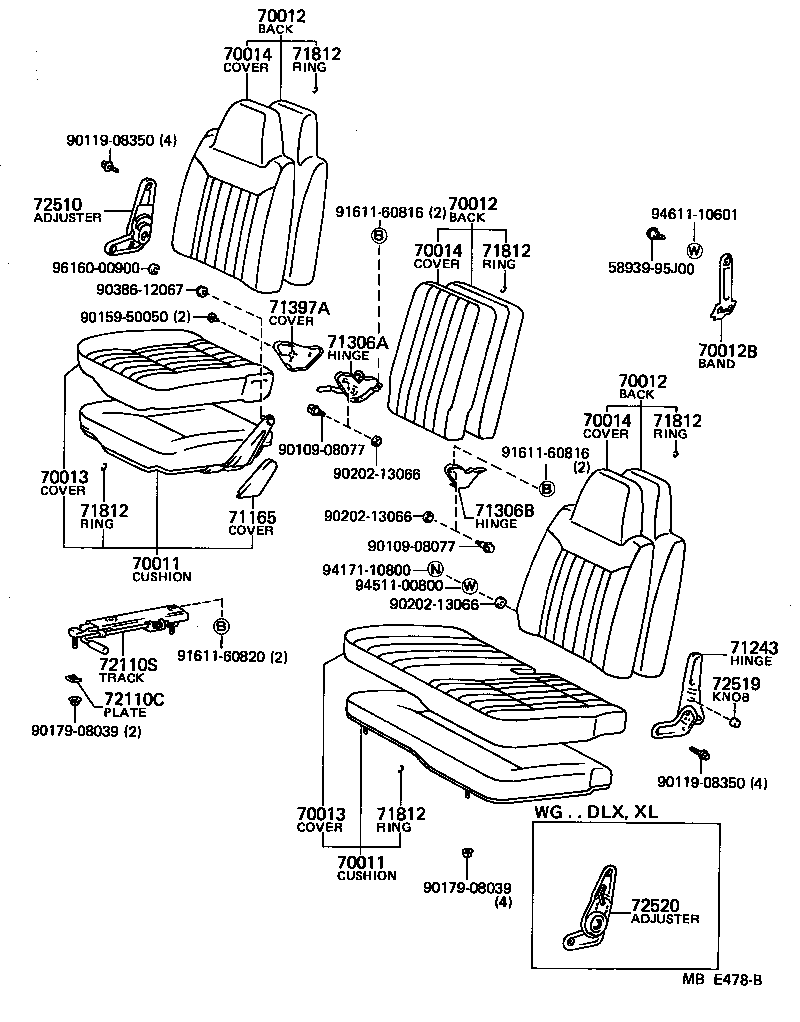

ILLUST NO. 1 OF 2(8210-8508)HRF,SRF..5H

Click highlighted areas on diagram

diagram 5893995J00 70011 70011 70012 70012 70012 70012B 70013 70013 70014 70014 70014 71165 71243 71306A 71306B 71397A 71812 71812 71812 71812 71812 72110C 72110S 72510 72519 72520 9010908077 9010908077 9011908350 9011908350 9015950050 9017908039 9017908039 9020213066 9020213066 9020213066 9038612067 9161160816 9161160816 9161160820 9417110800 9451100800 9461110601 9616000900
Part # Description Qty Price
70011 - CUSHION ASSY, NO.1 SEAT
71110-95734

KM21,YM20..VSG..SUP

RH,VL PRINT

 1
71210-95739

YM20..06S

LH,VL PRINT

 1
70011 - CUSHION ASSY, NO.1 SEAT
71110-95734

KM21,YM20..VSG..SUP

RH,VL PRINT

 1
71210-95739

YM20..06S

LH,VL PRINT

 1
70012 - BACK ASSY, NO.1 SEAT
71150-95736

YM20..VSG

RH,VL PRINT

 1
71250-95745

YM20..VSG

LH,VL PRINT

 1
71350-95705

YM20..06S

CTR,VL PRINT

 1
70012 - BACK ASSY, NO.1 SEAT
71150-95736

YM20..VSG

RH,VL PRINT

 1
71250-95745

YM20..VSG

LH,VL PRINT

 1
71350-95705

YM20..06S

CTR,VL PRINT

 1
70012 - BACK ASSY, NO.1 SEAT
71150-95736

YM20..VSG

RH,VL PRINT

 1
71250-95745

YM20..VSG

LH,VL PRINT

 1
71350-95705

YM20..06S

CTR,VL PRINT

 1
70012B - BAND, ENGINE SERVICE HOLE COVER SUPPORT
58936-9570305

CM20,YM20..V

BEIGE,BEIGE

 1
70013 - COVER ASSY, NO.1 SEAT CUSHION
71108-95735

KM21,YM20..VSG..SUP

RH,VL PRINT

 1
71208-95742

YM20..06S

LH,VL PRINT

 1
70013 - COVER ASSY, NO.1 SEAT CUSHION
71108-95735

KM21,YM20..VSG..SUP

RH,VL PRINT

 1
71208-95742

YM20..06S

LH,VL PRINT

 1
70014 - COVER ASSY, NO.1 SEAT BACK
71109-95735

KM21,YM20..VSG..SUP

RH,VL PRINT

 1
71209-95738

YM20..VSG

LH,VL PRINT

 1
71390-95703

YM20..06S

CTR,VL PRINT

 1
70014 - COVER ASSY, NO.1 SEAT BACK
71109-95735

KM21,YM20..VSG..SUP

RH,VL PRINT

 1
71209-95738

YM20..VSG

LH,VL PRINT

 1
71390-95703

YM20..06S

CTR,VL PRINT

 1
70014 - COVER ASSY, NO.1 SEAT BACK
71109-95735

KM21,YM20..VSG..SUP

RH,VL PRINT

 1
71209-95738

YM20..VSG

LH,VL PRINT

 1
71390-95703

YM20..06S

CTR,VL PRINT

 1
71243 - HINGE, PASSENGER SEAT BACK, LH
71290-95703

CM20,YM20..V

 1
71306A - HINGE SUB-ASSY, CENTER SEAT, RH
71307-9570205

YM20..5H

BEIGE,BEIGE

 1
71306B - HINGE SUB-ASSY, CENTER SEAT, LH
71394-9570205

YM20..5H

BEIGE,BEIGE

 1
71397A - COVER, CENTER SEAT HINGE
71397-9570105

YM20..5H

BEIGE,BEIGE

 1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-95706

KM21,YM20..SUP

 1
72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM
71245-95701

CM20,YM20..V

 1
Common parts
58939-95J00
90109-08077
90119-08350
90159-50050
90179-08039
90202-13066
90386-12067
91611-60816
91611-60820
94171-10800
94511-00800
94611-10601
96160-00900
