YM20V-QNZFT (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1YJ
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

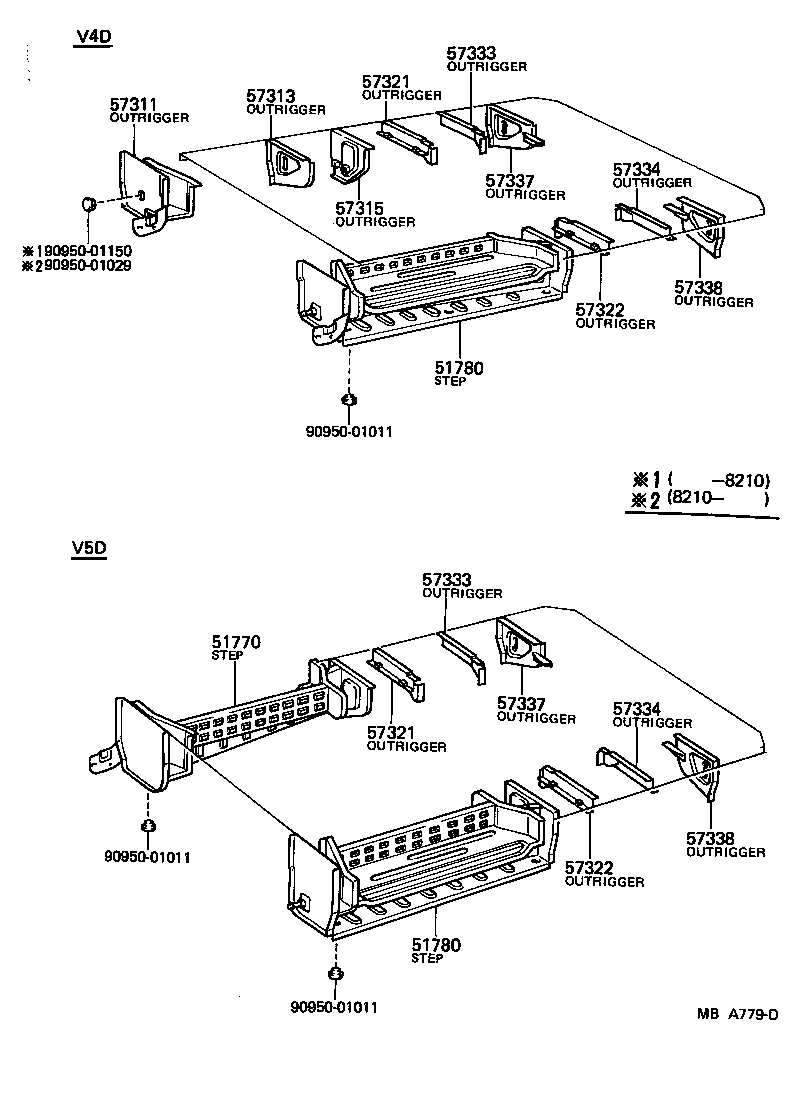

ILLUST NO. 2 OF 2(7910-8508)HRF..WT

Click highlighted areas on diagram

diagram 51770 51780 51780 57311 57313 57315 57321 57321 57322 57322 57333 57333 57334 57334 57337 57337 57338 57338 9095001011 9095001011 9095001011 9095001029 9095001150
Part # Description Qty Price
51770 - STEP ASSY, FRONT, RH
58303-95702

YM20..V5D..WT

 1
51780 - STEP ASSY, FRONT, LH
58306-95705

CM20,YM20..HRF..WT

 1
51780 - STEP ASSY, FRONT, LH
58306-95705

CM20,YM20..HRF..WT

 1
57321 - OUTRIGGER, NO.4 RH
57407-95700

KM2#,YM20..HRF..WT

 1
57321 - OUTRIGGER, NO.4 RH
57407-95700

KM2#,YM20..HRF..WT

 1
57322 - OUTRIGGER, NO.4 LH
57408-95701

CM20,KM2#,YM20..HRF..WT

 1
57322 - OUTRIGGER, NO.4 LH
57408-95701

CM20,KM2#,YM20..HRF..WT

 1
57333 - OUTRIGGER, NO.5 RH
57408-95702

KM2#,YM20..HRF..WT

 1
57333 - OUTRIGGER, NO.5 RH
57408-95702

KM2#,YM20..HRF..WT

 1
57334 - OUTRIGGER, NO.5 LH
57407-95700

CM20,KM2#,YM20..HRF..WT

 1
57334 - OUTRIGGER, NO.5 LH
57407-95700

CM20,KM2#,YM20..HRF..WT

 1
57337 - OUTRIGGER, REAR RH
57305-95701

CM20,KM2#,YM20..HRF..WT

 1
57337 - OUTRIGGER, REAR RH
57305-95701

CM20,KM2#,YM20..HRF..WT

 1
57338 - OUTRIGGER, REAR LH
57306-95701

CM20,KM2#,YM20..HRF..WT

 1
57338 - OUTRIGGER, REAR LH
57306-95701

CM20,KM2#,YM20..HRF..WT

 1
Common parts
90950-01011
90950-01029
90950-01150

ILLUST NO. 1 OF 2(7910-8508)KM2#..V ; (8210-8508)YM20..WT

Click highlighted areas on diagram

diagram 53893 53893 53894 53894 57413 57413 57414 57414 57415 57415 57416 57416 57606 57606 57606A 57606A 57606A 57606A 57655 57655 58311 58311 9011906012 9011906012 9015960096 9015960096 9018906008 9018906008 9095001006 9095001011 9095001011 9095001011 9095001056 9095001056 9095001056 9095001056 9095001056 9095001056 9095001127 9095001127 9095001203 9095001203 9095001217 9165140816 9165140816 9165540620 9331216012
Part # Description Qty Price
57413 - RAIL, FLOOR SIDE, CENTER RH
57413-95706

KM2#,YM20..V5D..WT

 1
57413 - RAIL, FLOOR SIDE, CENTER RH
57413-95706

KM2#,YM20..V5D..WT

 1
57414 - RAIL, FLOOR SIDE, CENTER LH
57414-95705

CM20,KM2#,YM20..HRF..WT

 1
57414 - RAIL, FLOOR SIDE, CENTER LH
57414-95705

CM20,KM2#,YM20..HRF..WT

 1
57415 - RAIL, FLOOR SIDE, REAR RH
57045-95701

CM20,KM2#,YM20..HRF..WT

 1
57415 - RAIL, FLOOR SIDE, REAR RH
57045-95701

CM20,KM2#,YM20..HRF..WT

 1
57416 - RAIL, FLOOR SIDE, REAR LH
57046-95701

CM20,KM2#,YM20..HRF..WT

 1
57416 - RAIL, FLOOR SIDE, REAR LH
57046-95701

CM20,KM2#,YM20..HRF..WT

 1
57606 - CROSSMEMBER SUB-ASSY, REAR FLOOR REAR, INNER
57607-95703

CM20,KM2#,YM20..HRF..WT

 1
57606 - CROSSMEMBER SUB-ASSY, REAR FLOOR REAR, INNER
57607-95703

CM20,KM2#,YM20..HRF..WT

 1
57606A - DUST PROOF(FOR REAR CROSSMEMBER)
57614-95700

CM20,KM2#,TM20,YM20,21..V,WG

 2
57606A - DUST PROOF(FOR REAR CROSSMEMBER)
57614-95700

CM20,KM2#,TM20,YM20,21..V,WG

 2
57606A - DUST PROOF(FOR REAR CROSSMEMBER)
57614-95700

CM20,KM2#,TM20,YM20,21..V,WG

 2
57606A - DUST PROOF(FOR REAR CROSSMEMBER)
57614-95700

CM20,KM2#,TM20,YM20,21..V,WG

 2
57655 - MEMBER, REAR FLOOR CROSS, NO.5
57708-95702

CM20,KM2#,TM20,YM20,21..V,WG

 1
57655 - MEMBER, REAR FLOOR CROSS, NO.5
57708-95702

CM20,KM2#,TM20,YM20,21..V,WG

 1
58311 - PAN, REAR FLOOR
58311-95760

YM20..V5D..WT

 1
58311 - PAN, REAR FLOOR
58311-95760

YM20..V5D..WT

 1
Common parts
90119-06012
90159-60096
90189-06008
90950-01006
90950-01011
90950-01056
90950-01127
90950-01203
90950-01217
91651-40816
91655-40620
93312-16012
