Toyota Lite/townace truck YM20V CONTROL SHAFT & CROSSSHAFT

Manufacturers Home
Toyota
JP
LITE/TOWNACE TRUCK
YM20V-QNZFT (1982)
3311 - CONTROL SHAFT & CROSSSHAFT

YM20V-QNZFT (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985

Engine 1YJ

Transmission 5H MTM

Displacement 2500cc

Power 168 HP (125 kW)

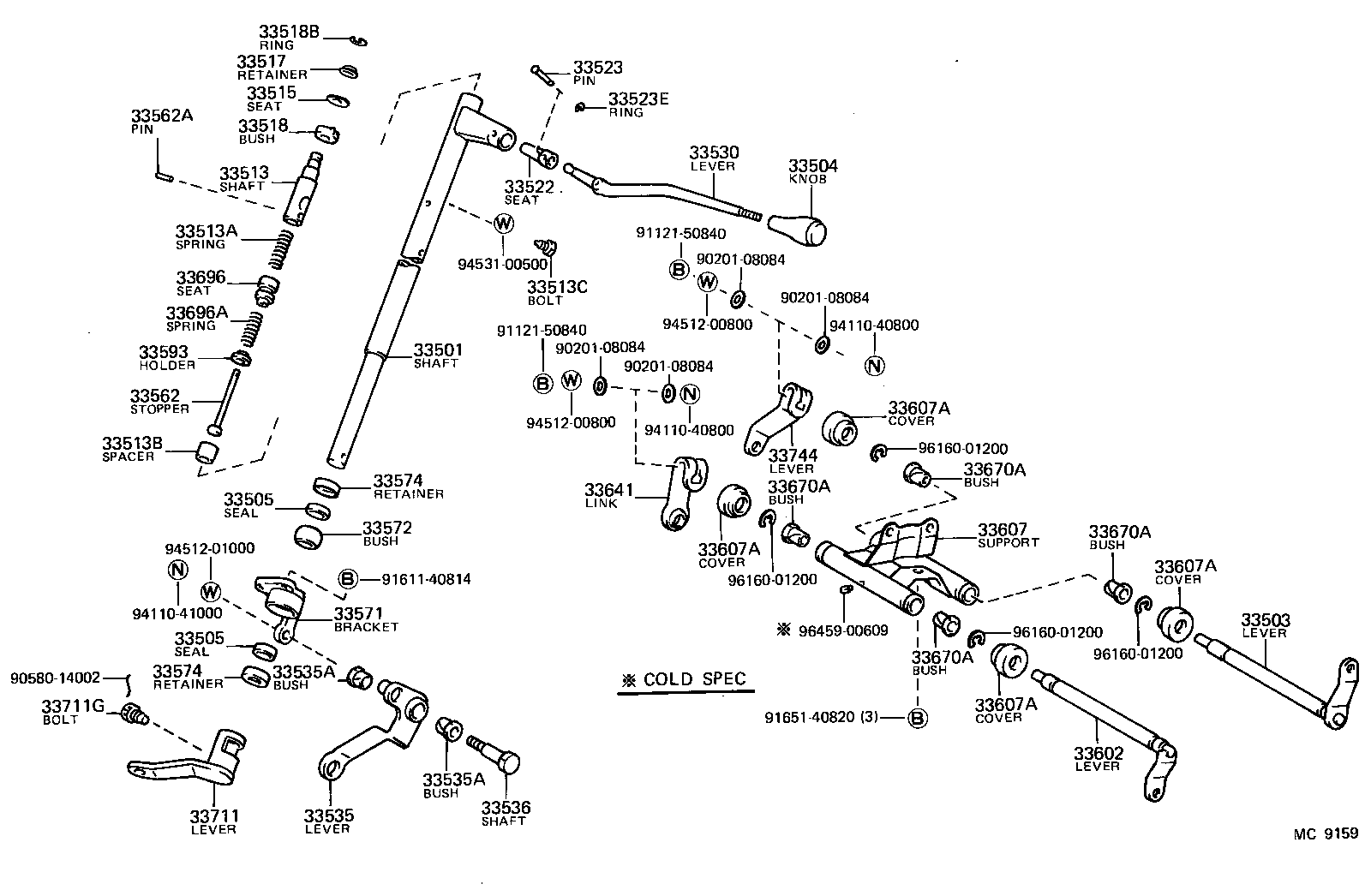

ILLUST NO. 1 OF 2(8210- )5H

Click highlighted areas on diagram

Part #	Description	Period	Qty
33503 - LEVER SUB-ASSY, SHIFT(FOR COLUMN SHIFT)
33503-27020	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	1
33504 - KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)
33504-30110	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	1
33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)
90303-17005	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	2
33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)
90303-17005	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	2
33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)
90501-14395	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	1
33515 - SEAT, CONTROL SHAFT UPPER
33515-30010	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	1
33517 - RETAINER, CONTROL SHAFT UPPER SPRING
33517-30010	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	1
33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)
90523-06019	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	1
33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)
33522-35010	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	1
33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT)
90249-07001	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	1
33523E - RING, E (FOR SHIFT LEVER PIN)
96160-00500	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	1
33535A - BUSH (FOR CONTROL SELECT LEVER)
90386-13007	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	2
33535A - BUSH (FOR CONTROL SELECT LEVER)
90386-13007	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	2
33536 - SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)
33536-25010	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	1
33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)
33572-36010	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	1
33574 - RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)
33574-25010	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	2
33574 - RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)
33574-25010	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	2
33607A - COVER, DUST (FOR CONTROL SUPPORT)
33775-28020	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	4
33607A - COVER, DUST (FOR CONTROL SUPPORT)
33775-28020	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	4
33607A - COVER, DUST (FOR CONTROL SUPPORT)
33775-28020	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	4
33607A - COVER, DUST (FOR CONTROL SUPPORT)
33775-28020	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	4
33670A - BUSH (FOR CONTROL ROD SUPPORT)
90386-15082	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	4
33670A - BUSH (FOR CONTROL ROD SUPPORT)
90386-15082	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	4
33670A - BUSH (FOR CONTROL ROD SUPPORT)
90386-15082	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	4
33670A - BUSH (FOR CONTROL ROD SUPPORT)
90386-15082	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	4
33711G - BOLT, CONTROL SHAFT LEVER LOCK
33218-35010	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	1
33744 - LEVER, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)
33744-27020	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	1
Common parts
90201-08084
90580-14002
91121-50840
91611-40814
91651-40820
94110-40800
94110-41000
94512-00800
94512-01000
94531-00500
96160-01200
96459-00609

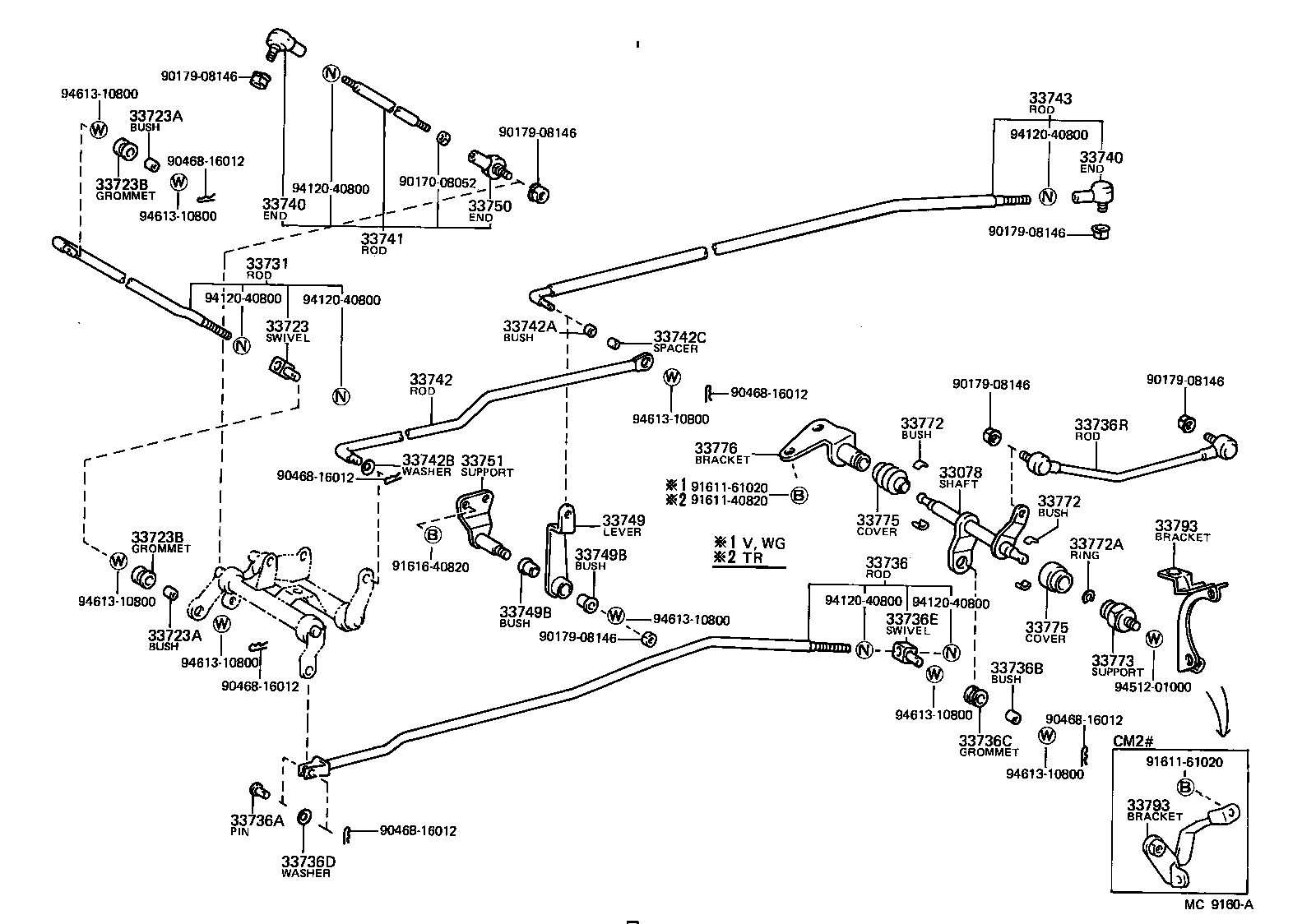

ILLUST NO. 2 OF 2(8210- )5H

Click highlighted areas on diagram

Part #	Description	Period	Qty
33078 - SHAFT SUB-ASSY, CROSS, NO.2(FOR COLUMN SHIFT)
33078-27020	CM20,YM20..WT	10/1982 - 08/1985	1
33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)
33723-10020	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	1
33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT)
90389-08005	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	2
33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT)
90389-08005	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	2
33723B - GROMMET (FOR COLUMN SHIFT CONTROL SHAFT)
90480-17177	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	2
33723B - GROMMET (FOR COLUMN SHIFT CONTROL SHAFT)
90480-17177	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	2
33736B - BUSH(FOR GEAR SELECTING ROD, NO.2)
90389-08005	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	1
33736C - GROMMET(FOR GEAR SELECTING ROD, NO.2)
90480-17177	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	1
33736E - SWIVEL, CONNECTING ROD
33723-10020	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	1
33736R - ROD, GEAR SELECTING, NO.3(FOR COLUMN SHIFT)
33790-27090	YM20,21..5H	10/1982 - 08/1985	1
33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT)
33740-35011	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	2
33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT)
33740-35011	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	2
33742A - BUSH(FOR SHIFTING ROD NO.2)
90385-10063	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	1
33742B - WASHER, WAVE(FOR SHIFTING NO.2 ROD)
90206-08016	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	1
33742C - SPACER(FOR SHIFTING, NO.2 ROD)
90560-08366	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	1
33743 - ROD, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT)
33840-27080	YM20,21..5H	10/1982 - 08/1985	1
33749B - BUSH (FOR COLUMN SHIFT GEAR SHIFTING LEVER)
90386-13007	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	2
33749B - BUSH (FOR COLUMN SHIFT GEAR SHIFTING LEVER)
90386-13007	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	2
33750 - END, CONNECTING ROD, NO.2 (FOR COLUMN SHIFT)
33750-35011	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	1
33751 - SUPPORT, GEAR SHIFT LINK LEVER (FOR COLUMN SHIFT)
33705-27020	CM2#,KM2#,TM20,YM2#..4H,5H	10/1979 - 09/1986	1
33776 - BRACKET, CROSS SHAFT, NO.1 (FOR COLUMN SHIFT)
33776-27040	CM20,YM20..WT	10/1982 - 08/1985	1
Common parts
90170-08052
90179-08146
90468-16012
91611-40820
91611-61020
91616-40820
94120-40800
94512-01000
94613-10800

YM20V-QNZFT (1982)

ILLUST NO. 1 OF 2(8210- )5H

ILLUST NO. 2 OF 2(8210- )5H
