YM20V-QNZFT (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1YJ
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )1C,1YJ

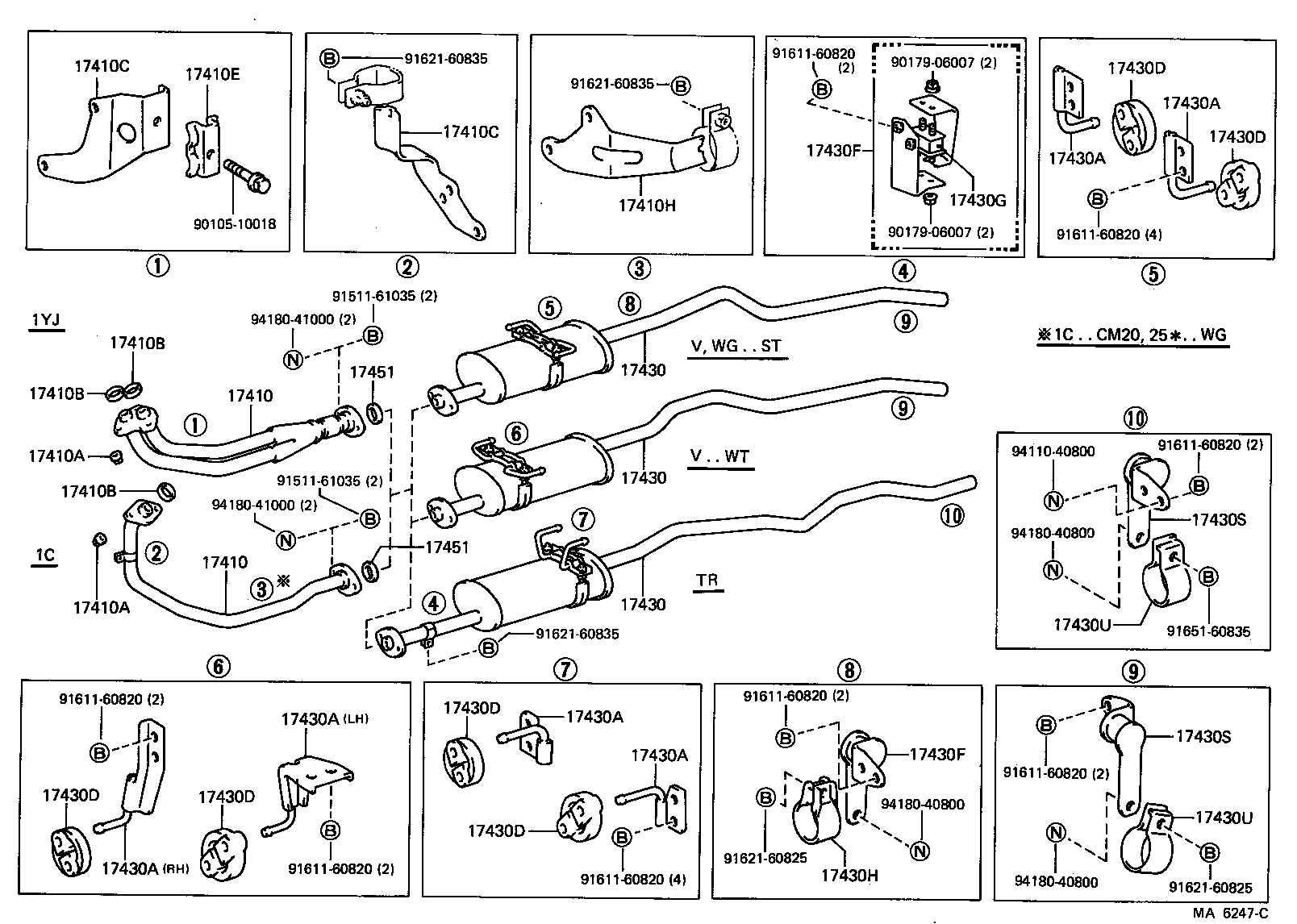

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17410B 17410C 17410C 17410E 17410H 17430 17430 17430 17430A 17430A 17430A 17430A 17430A 17430A 17430D 17430D 17430D 17430D 17430D 17430D 17430F 17430F 17430G 17430H 17430S 17430S 17430U 17430U 17451 17451 9010510018 9017906007 9017906007 9151161035 9151161035 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9162160825 9162160825 9162160835 9162160835 9162160835 9165160835 9411040800 9418040800 9418040800 9418040800 9418041000 9418041000
Part # Description Qty Price
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

13TU,1C,4KJ,1YJ,2YU..CM2#,KM2#,TM20,YM2#

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

13TU,1C,4KJ,1YJ,2YU..CM2#,KM2#,TM20,YM2#

 3
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-72010

1YJ,2YU..YM2#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-72010

1YJ,2YU..YM2#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-71030

1C,1YJ..CM20,YM20..HRF..WT

 1
17430-71030

1YJ..YM20..WT

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-71030

1C,1YJ..CM20,YM20..HRF..WT

 1
17430-71030

1YJ..YM20..WT

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-71030

1C,1YJ..CM20,YM20..HRF..WT

 1
17430-71030

1YJ..YM20..WT

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17566-71020

1C,1YJ..CM20,YM20..HRF..WT

RH

 1
17572-71010

1C,1YJ..CM20,YM20..HRF..WT

LH

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17566-71020

1C,1YJ..CM20,YM20..HRF..WT

RH

 1
17572-71010

1C,1YJ..CM20,YM20..HRF..WT

LH

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17566-71020

1C,1YJ..CM20,YM20..HRF..WT

RH

 1
17572-71010

1C,1YJ..CM20,YM20..HRF..WT

LH

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17566-71020

1C,1YJ..CM20,YM20..HRF..WT

RH

 1
17572-71010

1C,1YJ..CM20,YM20..HRF..WT

LH

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17566-71020

1C,1YJ..CM20,YM20..HRF..WT

RH

 1
17572-71010

1C,1YJ..CM20,YM20..HRF..WT

LH

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17566-71020

1C,1YJ..CM20,YM20..HRF..WT

RH

 1
17572-71010

1C,1YJ..CM20,YM20..HRF..WT

LH

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-15010

1C,1YJ..CM20,YM20..V,WG

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-15010

1C,1YJ..CM20,YM20..V,WG

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-15010

1C,1YJ..CM20,YM20..V,WG

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-15010

1C,1YJ..CM20,YM20..V,WG

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-15010

1C,1YJ..CM20,YM20..V,WG

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-15010

1C,1YJ..CM20,YM20..V,WG

 2
17451 - GASKET, EXHAUST PIPE
90917-06001

1C,4KJ,1YJ..CM2#,KM2#,YM20,25

 1
17451 - GASKET, EXHAUST PIPE
90917-06001

1C,4KJ,1YJ..CM2#,KM2#,YM20,25

 1
Common parts
90105-10018
90179-06007
91511-61035
91611-60820
91621-60825
91621-60835
91651-60835
94110-40800
94180-40800
94180-41000
