YM20V-QNZFT (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1YJ
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )1YJ,2YU

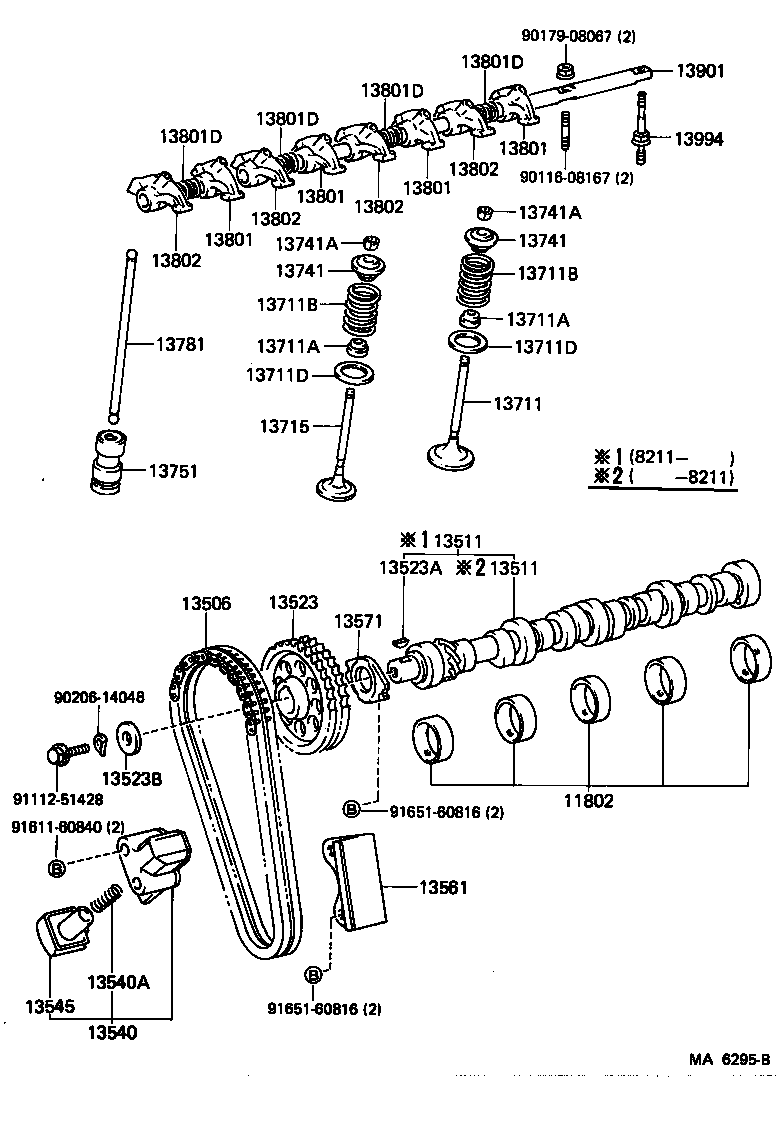

Click highlighted areas on diagram

diagram 11802 13506 13511 13511 13523 13523A 13523B 13540 13540A 13545 13561 13571 13711 13711A 13711A 13711B 13711B 13711D 13711D 13715 13741 13741 13741A 13741A 13751 13781 13801 13801 13801 13801 13801D 13801D 13801D 13801D 13802 13802 13802 13802 13901 13994 9011608167 9017908067 9020614048 9111251428 9161160840 9165160816 9165160816
Part # Description Qty Price
13506 - CHAIN SUB-ASSY
13506-25010

1YJ,2YU..YM2#

 1
13511 - CAMSHAFT
13511-71010

1YJ,2YU..YM2#

 1
13511 - CAMSHAFT
13511-71010

1YJ,2YU..YM2#

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13522-33010

1YJ,2YU..YM2#

N=36

 1
13523A - KEY, WOODRUFF(FOR TIMING GEAR)
90280-05010

1YJ,2YU..YM2#

 1
13523B - WASHER, PLATE(FOR TIMING GEAR)
90201-14293

1YJ,2YU..YM2#

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-25010

1YJ,2YU..YM2#

 1
13545 - PLUNGER, CHAIN TENSIONER
13545-25010

1YJ,2YU..YM2#

 1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-25010

1YJ,2YU..YM2#

 1
Common parts
90116-08167
90179-08067
90206-14048
91112-51428
91611-60840
91651-60816
