YM20V-QNZF (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1YJ
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

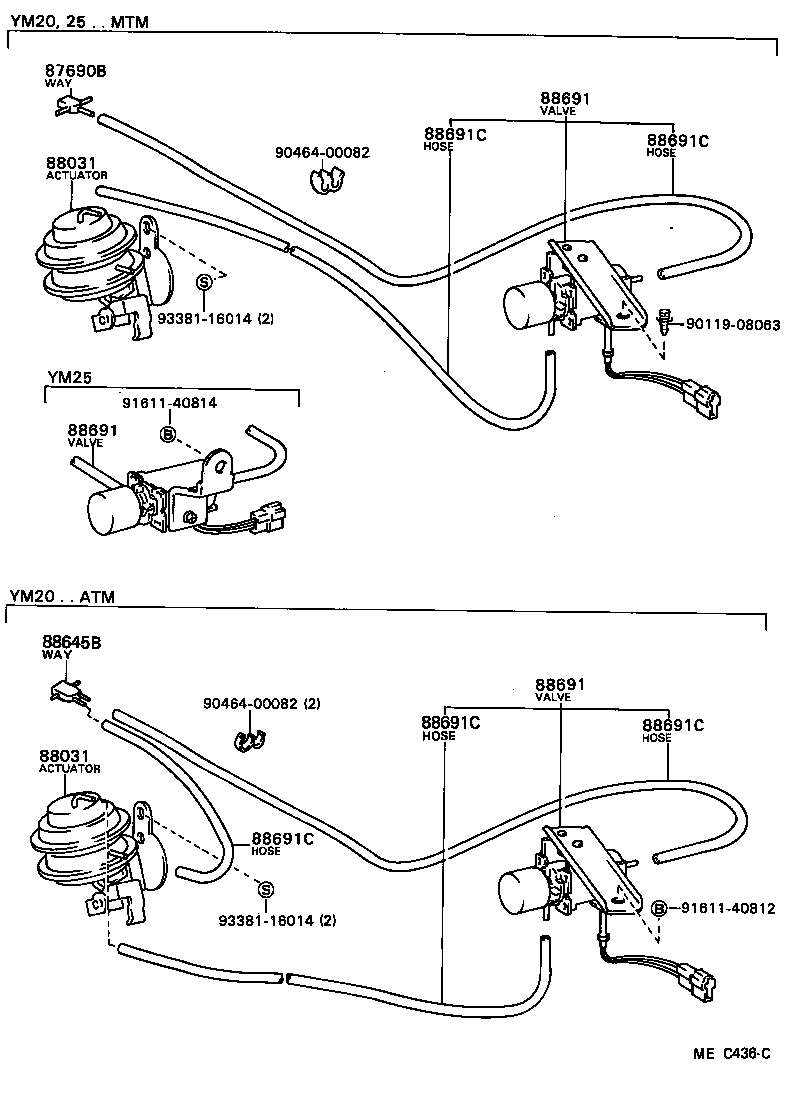

(8210- )YM20,25

Click highlighted areas on diagram

diagram 87690B 88031 88031 88645B 88691 88691 88691 88691C 88691C 88691C 88691C 88691C 9011908063 9046400082 9046400082 9161140812 9161140814 9338116014 9338116014
Part # Description Qty Price
87690B - WAY, 3
90413-04005

YM2#

 1
88031 - ACTUATOR SET, IDLE-UP
21908-71020

YM20,25

W/HEATER IDLE UP

 1
88031 - ACTUATOR SET, IDLE-UP
21908-71020

YM20,25

W/HEATER IDLE UP

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95715

YM20

 1
88690-95725

YM20

W/PS

 1
88691-12050

YM20,25

W/COOLER IDLE UP

 1
88690-95724

YM20

W/HEATER IDLE UP

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95715

YM20

 1
88690-95725

YM20

W/PS

 1
88691-12050

YM20,25

W/COOLER IDLE UP

 1
88690-95724

YM20

W/HEATER IDLE UP

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95715

YM20

 1
88690-95725

YM20

W/PS

 1
88691-12050

YM20,25

W/COOLER IDLE UP

 1
88690-95724

YM20

W/HEATER IDLE UP

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10860

YM20

*H,L=420,MARK=#8

 1
95411-19960

YM20

*H,L=480,ﾏｰｸ=#*

 1
95411-19960

YM20

*H,L=330,ﾏｰｸ=#*

 1
95411-10830

YM20

MARK=#8

 1
95411-19930

YM20

*H,L=180,ﾏｰｸ=#*,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10860

YM20

*H,L=420,MARK=#8

 1
95411-19960

YM20

*H,L=480,ﾏｰｸ=#*

 1
95411-19960

YM20

*H,L=330,ﾏｰｸ=#*

 1
95411-10830

YM20

MARK=#8

 1
95411-19930

YM20

*H,L=180,ﾏｰｸ=#*,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10860

YM20

*H,L=420,MARK=#8

 1
95411-19960

YM20

*H,L=480,ﾏｰｸ=#*

 1
95411-19960

YM20

*H,L=330,ﾏｰｸ=#*

 1
95411-10830

YM20

MARK=#8

 1
95411-19930

YM20

*H,L=180,ﾏｰｸ=#*,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10860

YM20

*H,L=420,MARK=#8

 1
95411-19960

YM20

*H,L=480,ﾏｰｸ=#*

 1
95411-19960

YM20

*H,L=330,ﾏｰｸ=#*

 1
95411-10830

YM20

MARK=#8

 1
95411-19930

YM20

*H,L=180,ﾏｰｸ=#*,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10860

YM20

*H,L=420,MARK=#8

 1
95411-19960

YM20

*H,L=480,ﾏｰｸ=#*

 1
95411-19960

YM20

*H,L=330,ﾏｰｸ=#*

 1
95411-10830

YM20

MARK=#8

 1
95411-19930

YM20

*H,L=180,ﾏｰｸ=#*,W/PS

 1
Common parts
90119-08063
90464-00082
91611-40812
91611-40814
93381-16014

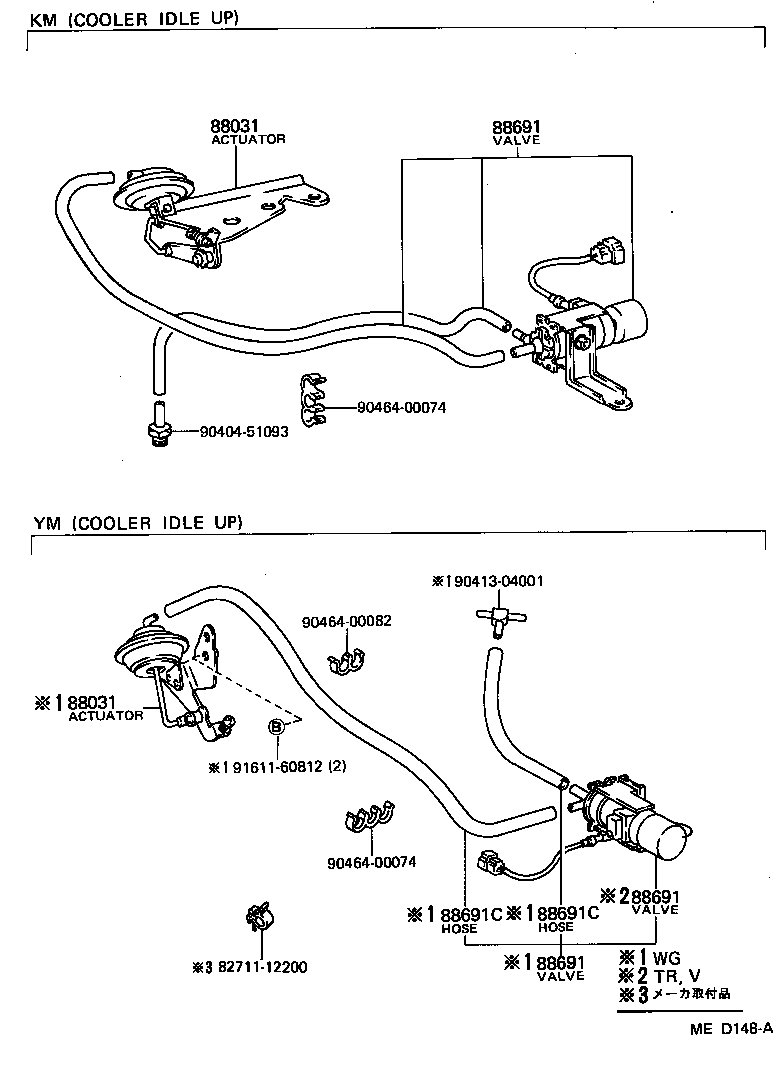

(8210- )KM21,YM2#

Click highlighted areas on diagram

diagram 8271112200 88031 88031 88691 88691 88691 88691C 88691C 9040451093 9041304001 9046400074 9046400074 9046400082 9161160812
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
21908-71020

YM20,25

W/HEATER IDLE UP

 1
88031 - ACTUATOR SET, IDLE-UP
21908-71020

YM20,25

W/HEATER IDLE UP

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95715

YM20

 1
88690-95725

YM20

W/PS

 1
88691-12050

YM20,25

W/COOLER IDLE UP

 1
88690-95724

YM20

W/HEATER IDLE UP

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95715

YM20

 1
88690-95725

YM20

W/PS

 1
88691-12050

YM20,25

W/COOLER IDLE UP

 1
88690-95724

YM20

W/HEATER IDLE UP

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95715

YM20

 1
88690-95725

YM20

W/PS

 1
88691-12050

YM20,25

W/COOLER IDLE UP

 1
88690-95724

YM20

W/HEATER IDLE UP

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10860

YM20

*H,L=420,MARK=#8

 1
95411-19960

YM20

*H,L=480,ﾏｰｸ=#*

 1
95411-19960

YM20

*H,L=330,ﾏｰｸ=#*

 1
95411-10830

YM20

MARK=#8

 1
95411-19930

YM20

*H,L=180,ﾏｰｸ=#*,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10860

YM20

*H,L=420,MARK=#8

 1
95411-19960

YM20

*H,L=480,ﾏｰｸ=#*

 1
95411-19960

YM20

*H,L=330,ﾏｰｸ=#*

 1
95411-10830

YM20

MARK=#8

 1
95411-19930

YM20

*H,L=180,ﾏｰｸ=#*,W/PS

 1
Common parts
82711-12200
90404-51093
90413-04001
90464-00074
90464-00082
91611-60812
