YM20V-QNZF (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1YJ
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

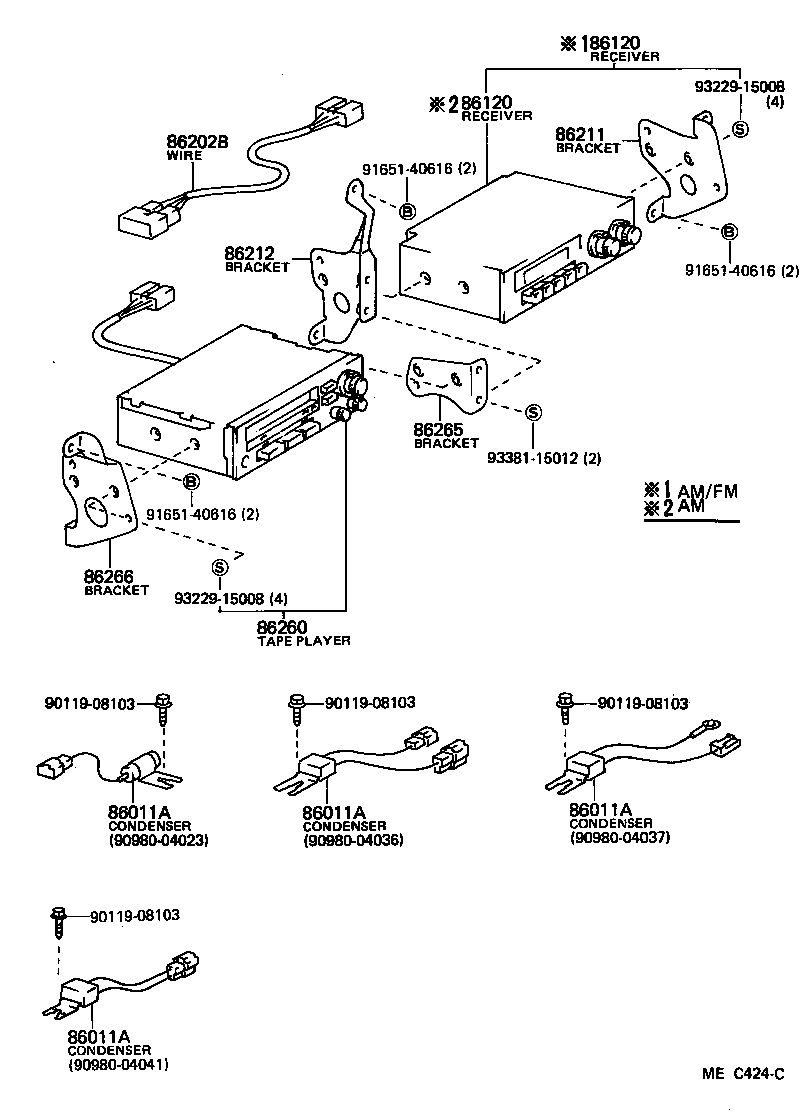

ILLUST NO. 1 OF 2(8210- )DLX,FXV,GXL,MTP,S,SUP,SW,XL

Click highlighted areas on diagram

diagram 86011A 86011A 86011A 86011A 86120 86120 86202B 86211 86212 86260 86265 86266 9011908103 9011908103 9011908103 9011908103 9098004023 9098004036 9098004037 9098004041 9165140616 9165140616 9165140616 9322915008 9322915008 9338115012
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04023

CM2#,KM2#,TM20,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

REGULATOR

 1
90980-04036

YM20,25

IGUNITER

 1
86011A - CONDENSER, RADIO SETTING
90980-04023

CM2#,KM2#,TM20,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

REGULATOR

 1
90980-04036

YM20,25

IGUNITER

 1
86011A - CONDENSER, RADIO SETTING
90980-04023

CM2#,KM2#,TM20,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

REGULATOR

 1
90980-04036

YM20,25

IGUNITER

 1
86011A - CONDENSER, RADIO SETTING
90980-04023

CM2#,KM2#,TM20,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

REGULATOR

 1
90980-04036

YM20,25

IGUNITER

 1
86120 - RECEIVER ASSY, RADIO
86120-14420

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

AM

 1
86120-14421

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

AM

 1
86120 - RECEIVER ASSY, RADIO
86120-14420

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

AM

 1
86120-14421

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

AM

 1
86202B - WIRE, TAPE PLAYER
86203-95706

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
86211 - BRACKET, RADIO, NO.1
86211-95706

CM2#,KM21,YM2#

AM

 1
86212 - BRACKET, RADIO, NO.2
86212-95701

CM2#,KM21,YM2#

 1
86260 - TAPE PLAYER ASSY
86260-19015

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
86265 - BRACKET, TAPE PLAYER, NO.1
86238-95703

CM2#,KM21,YM2#

 1
86266 - BRACKET, TAPE PLAYER, NO.2
86239-95702

CM2#,KM21,YM2#

 1
Common parts
90119-08103
90980-04023
90980-04036
90980-04037
90980-04041
91651-40616
93229-15008
93381-15012
