YM20V-QNZF (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1YJ
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210-8508)1YJ,2YU..YM20,21

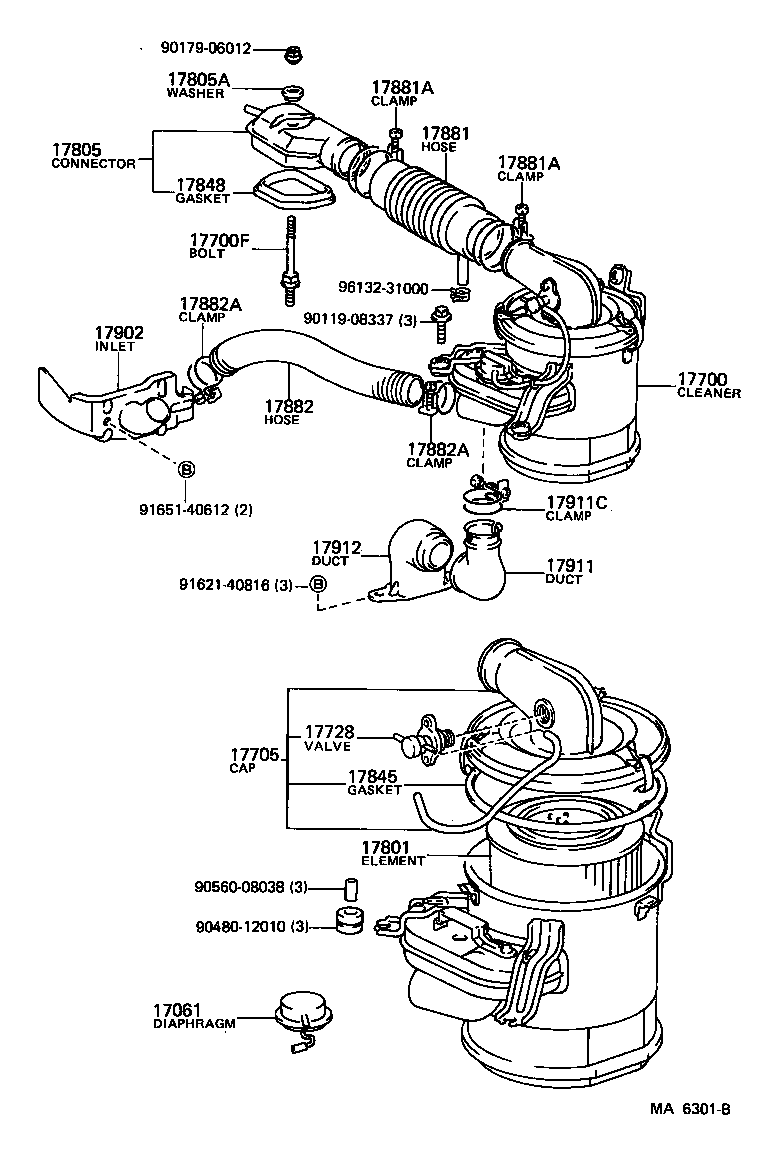

Click highlighted areas on diagram

diagram 17061 17700 17700F 17705 17728 17801 17805 17805A 17845 17848 17881 17881A 17881A 17882 17882A 17882A 17902 17911 17911C 17912 9011908337 9017906012 9048012010 9056008038 9162140816 9165140612 9613231000
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-26010

1YJ,2YU..YM2#

 1
17700 - CLEANER ASSY, AIR
17700-71020

1YJ,2YU..YM20,21

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-71010

1YJ,2YU..YM2#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-71040

1YJ..YM20

 1
17882 - HOSE, AIR CLEANER, NO.2
17881-23020

1YJ,2YU..YM20,21

 1
17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1
17895-71020

1YJ,2YU..YM20,21

 1
17911C - CLAMP, COOL AIR INTAKE DUCT, NO.1
96111-10570

1YJ,2YU..YM20,21

 1
17912 - DUCT, COOL AIR INTAKE, NO.2
17762-95702

1YJ,2YU..YM20,21

 1
Common parts
90119-08337
90179-06012
90480-12010
90560-08038
91621-40816
91651-40612
96132-31000
