YM20V-QNZ (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1YJ
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210-8508)1YJ

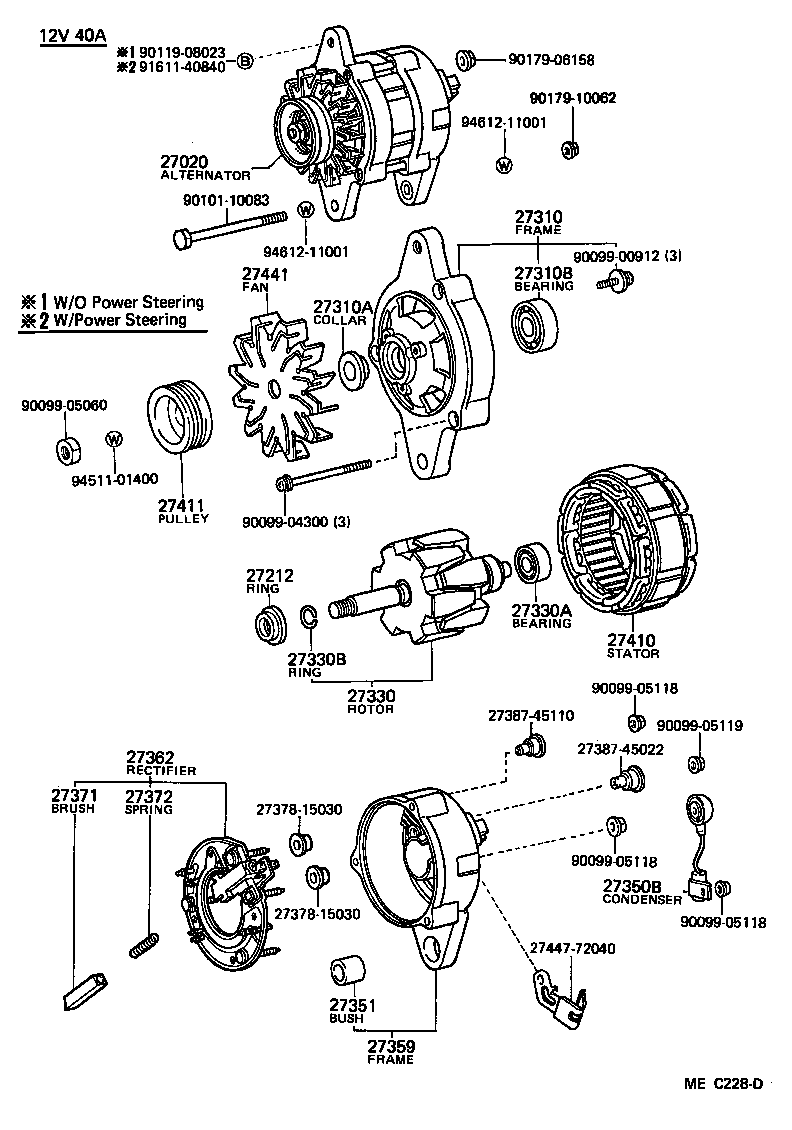

Click highlighted areas on diagram

diagram 27020 27212 27310 27310A 27310B 27330 27330A 27330B 27350B 27351 27359 27362 27371 27372 2737815030 2737815030 2738745022 2738745110 27410 27411 27441 2744772040 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9010110083 9011908023 9017906158 9017910062 9161140840 9451101400 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-72030

1YJ..YM20,25

12V 40A,12V 40A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27212-39050

4KJ,1YJ..KM2#,YM20,25

12V 40A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-15030

1YJ..YM20,25

12V 40A

 1
27310-72030

1YJ..YM20,25

12V 40A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-63030

1YJ,2YU..YM2#

12V 40A,55A

 1
27412-31040

13TU,4KJ,1YJ,2YU..KM2#,TM20,YM2#

12V 40A,50A,55A

 1
27412-63030

1YJ..YM20,25

12V 40A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10142

1YJ..YM20,25

12V 40A

 1
90099-10126

4KJ,1YJ..KM2#,YM20,25

12V 40A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-26050

4KJ,1YJ..KM2#,YM20,25

12V 40A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10111

4KJ,1YJ..KM2#,YM20,25

12V 40A

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07048

4KJ,1YJ..KM2#,YM20,25

12V 40A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

4KJ,1YJ,2YU..KM21,YM2#

12V 40A,55A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-72030

1YJ..YM20,25

12V 40A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-18011

4KJ,1YJ..KM21,YM20,25

12V 40A

 1
27410 - STATOR ASSY, ALTERNATOR
27410-15030

4KJ,1YJ..KM2#,YM20,25

12V 40A

 1
27411 - PULLEY, ALTERNATOR
27411-72040

1YJ,2YU..YM2#

12V 40A,55A

 1
27441 - FAN, ALTERNATOR
27441-34030

13TU,4KJ,1YJ..KM2#,TM20,YM20,25

12V 40A,50A

 1
Common parts
27378-15030
27387-45022
27387-45110
27447-72040
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10083
90119-08023
90179-06158
90179-10062
91611-40840
94511-01400
94612-11001
