YM20V-QNF (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1YJ
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )1YJ,2YU

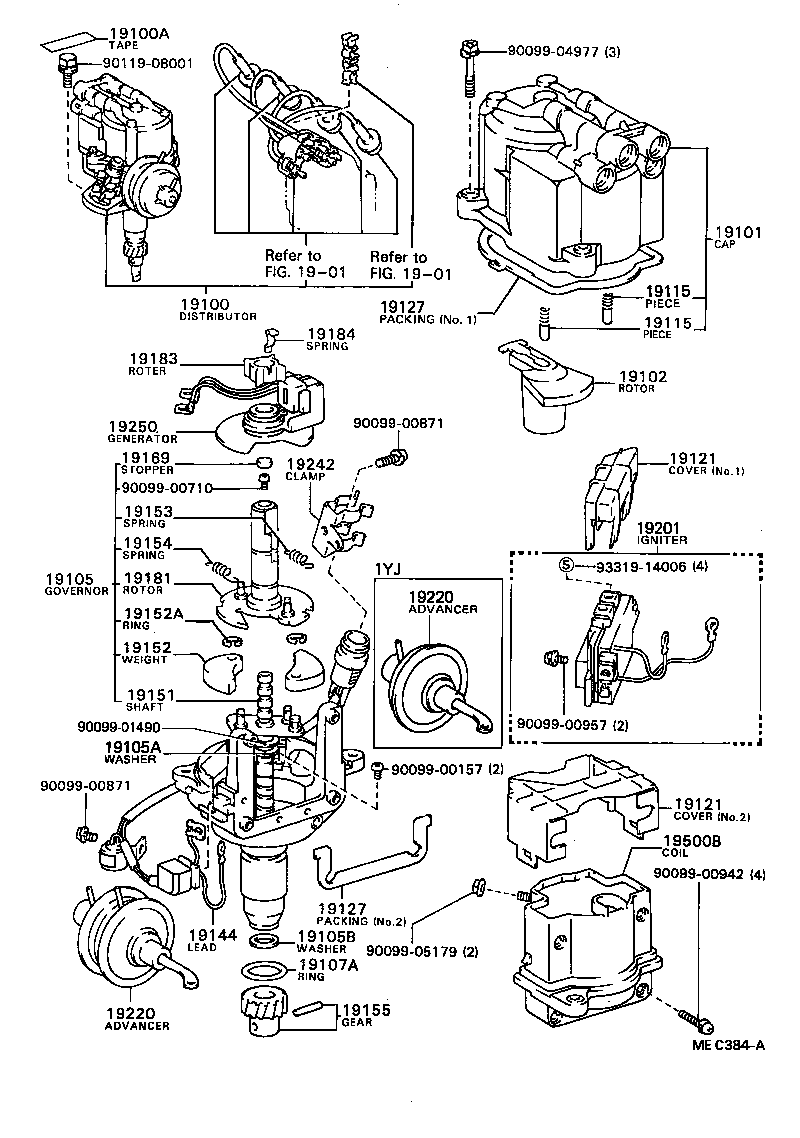

Click highlighted areas on diagram

diagram 1901 1901 19100 19100A 19101 19102 19105 19105A 19105B 19107A 19115 19115 19121 19121 19127 19127 19144 19151 19152 19152A 19153 19154 19155 19169 19181 19183 19184 19201 19220 19220 19242 19250 19500B 9009900157 9009900710 9009900871 9009900871 9009900942 9009900957 9009901490 9009904977 9009905179 9011908001 9331914006
Part # Description Qty Price
19100A - TAPE, SEALING
90919-24004

1YJ,2YU..YM2#

L=70

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

1YJ,2YU..YM2#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

1YJ,2YU..YM2#

 2
19115-63010

1YJ,2YU..YM2#

 2
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

1YJ,2YU..YM2#

 2
19115-63010

1YJ,2YU..YM2#

 2
19144 - LEAD, DISTRIBUTOR BREAKER
19144-71010

1YJ,2YU..YM2#

 1
19152 - WEIGHT, GOVERNOR
19152-35030

1YJ,2YU..YM2#

 2
19152-63010

1YJ,2YU..YM2#

 2
19169 - STOPPER, CAM GREASE
19169-32010

1YJ,2YU..YM2#

 1
19250 - GENERATOR ASSY, SIGNAL
19251-63010

1YJ,2YU..YM2#

 1
Common parts
90099-00157
90099-00710
90099-00871
90099-00942
90099-00957
90099-01490
90099-04977
90099-05179
90119-08001
93319-14006
Linked diagrams
1901
