YM20V-HNZ (1982)
Toyota Lite/Townace Truck
ILLUST NO. 2 OF 6(8210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29295 |
CM2#,KM21,YM2#..03S,05S,06S,08S,09S |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-29145 |
CM2#,KM21,YM2#..03S,05S,06S,08S,09S |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-27070 |
CM2#,KM21,YM2#..CS7,DLX,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-29115 |
CM2#,KM21,YM2#..03S,05S,06S,08S,09S |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-14110 |
CM2#,KM21,YM2# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-29585 |
CM2#,KM21,YM2#..CS7,DLX,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-95701 |
CM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL) |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-95701 |
CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-95702 |
CM2#,KM21,YM2# |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
CM2#,KM21,YM2# 14V 1.4W |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-87009 |
YM20..V4D..ST RR,NO.1 |
1 | ||
| 84730-95703 |
YM20..V4D..ST FR |
1 | ||
| 84730-95701 |
YM20..V4D..ST RR,NO.2 |
1 | ||
| 84732B - BULB, REAR HEATER BLOWER SWITCH | ||||
| 90981-11024 |
YM20..V4D..ST 12V 1.4W,FR |
1 | ||
| 90981-16022 |
YM20..V4D..ST 24V 1.4W,RR |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-24010 |
CM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL) |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10110 |
CM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL) 12V 1.12W |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-95702 |
YM20..V4D..ST |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-95703 |
CM2#,KM21,YM2#..CS7,DLX,MTP,S,SUP,SW,XL |
1 | ||
| 88601J - SWITCH ASSY, HEATER CONTROL(FOR HEATER IDLE-UP) | ||||
| 88610-95706 |
CM25,YM2#;CM20..V4D;CM20..TR,WG |
1 | ||
| 88610-95706 |
YM2# |
1 | ||
| Common parts | ||||
| 82711-14530 | ||||
| 90201-07004 | ||||
| 90461-08548 | ||||
| 90461-08549 | ||||
| 90461-12206 | ||||
| 90463-05023 | ||||
| 90463-15003 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||
| 93566-14512 | ||||
ILLUST NO. 3 OF 6(8210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-13040 |
13TU,1C,4KJ,1YJ,2YU..CM2#,KM2#,TM20,YM2# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
CM20,25,KM2#,TM20,YM2# 10A,10A |
8 | ||
| 90982-09003 |
CM2#,KM2#,TM20,YM2# 15A,15A |
11 | ||
| 90982-09005 |
CM2#,KM21,YM2# 7.5A,7.5A |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82661-95700 |
CM2#,KM21,YM2# |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 82650A - BREAKER ASSY, WIRING CIRCUIT, NO.2 | ||||
| 82650-20011 |
CM2#,KM21,YM2# 30A,30A,W/FR HEATER |
1 | ||
| 82650-35010 |
YM20..V4D..ST 20A,20A,W/RR HEATER |
1 | ||
| 82650-35010 |
CM2#,KM21,YM2# 20A,20A,W/FR HEATER |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-95701 |
KM21,YM20,21..FXV,SUP |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82672-95701 |
CM20,YM20,21..FXV,GXL,MTP,S,SUP,XL |
1 | ||
| 82672-95701 |
CM2#,KM21,YM2# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
YM20..V4D..ST W/RR HEATER |
1 | ||
| 90987-02004 |
CM2#,KM21,YM2# W/FR HEATER |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
YM20..V4D..ST W/RR HEATER |
1 | ||
| 90987-02004 |
CM2#,KM21,YM2# W/FR HEATER |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-95J00 |
CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 86690 - BUZZER ASSY, SPEED INDICATOR | ||||
| 86650-95701 |
CM20,KM21,YM20,21..V,WG |
1 | ||
| 86690 - BUZZER ASSY, SPEED INDICATOR | ||||
| 86650-95701 |
CM20,KM21,YM20,21..V,WG |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-27050 |
YM20,25 |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-27050 |
YM20,25 |
1 | ||
| Common parts | ||||
| 91611-40812 | ||||
| 91621-40616 | ||||
| 91656-40616 | ||||
| 93385-18016 | ||||
| 93540-55010 | ||||
| 93590-55012 | ||||
| Linked diagrams | ||||
| 8202 | ||||

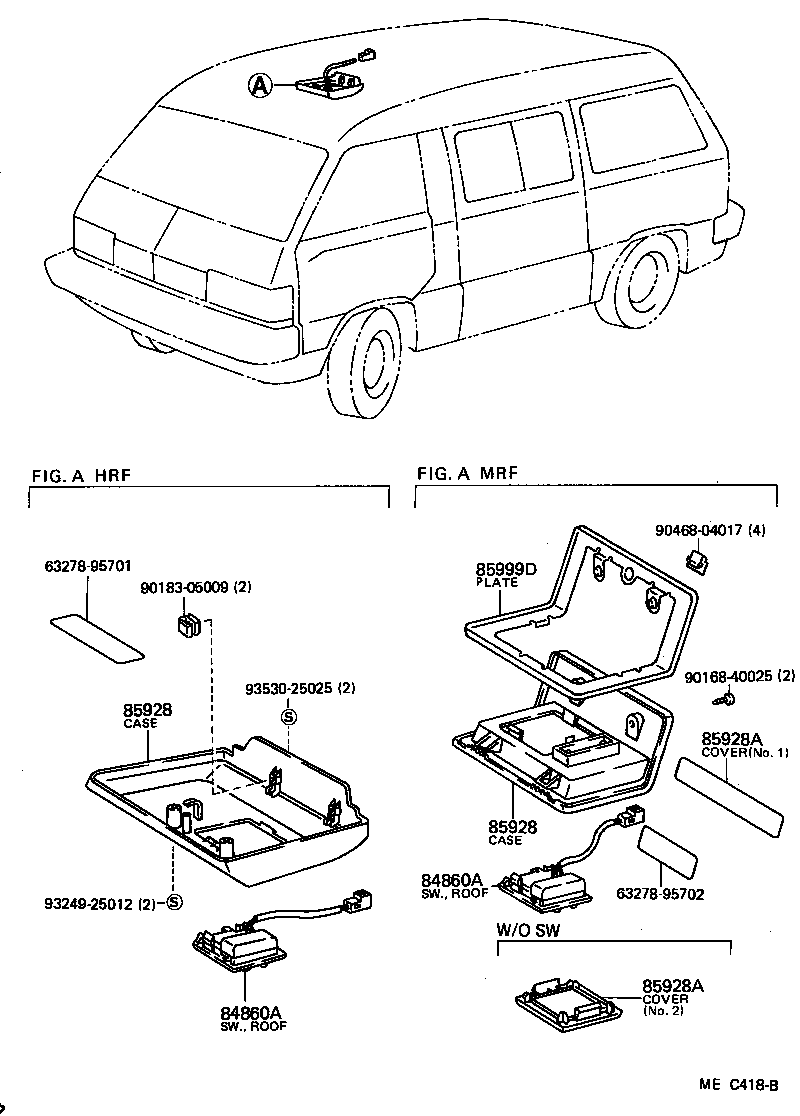

ILLUST NO. 6 OF 6(8210-8508)HRF,MRF..FXV,GXL,S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 63278-95701 | ||||
| 63278-95702 | ||||
| 90168-40025 | ||||
| 90183-05009 | ||||
| 90468-04017 | ||||
| 93249-25012 | ||||
| 93530-25025 | ||||
