YM20V-HNZ (1982)
Toyota Lite/Townace Truck
Production
Oct 1982
-
Aug 1985
Engine
1YJ
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8210-8508)3FC

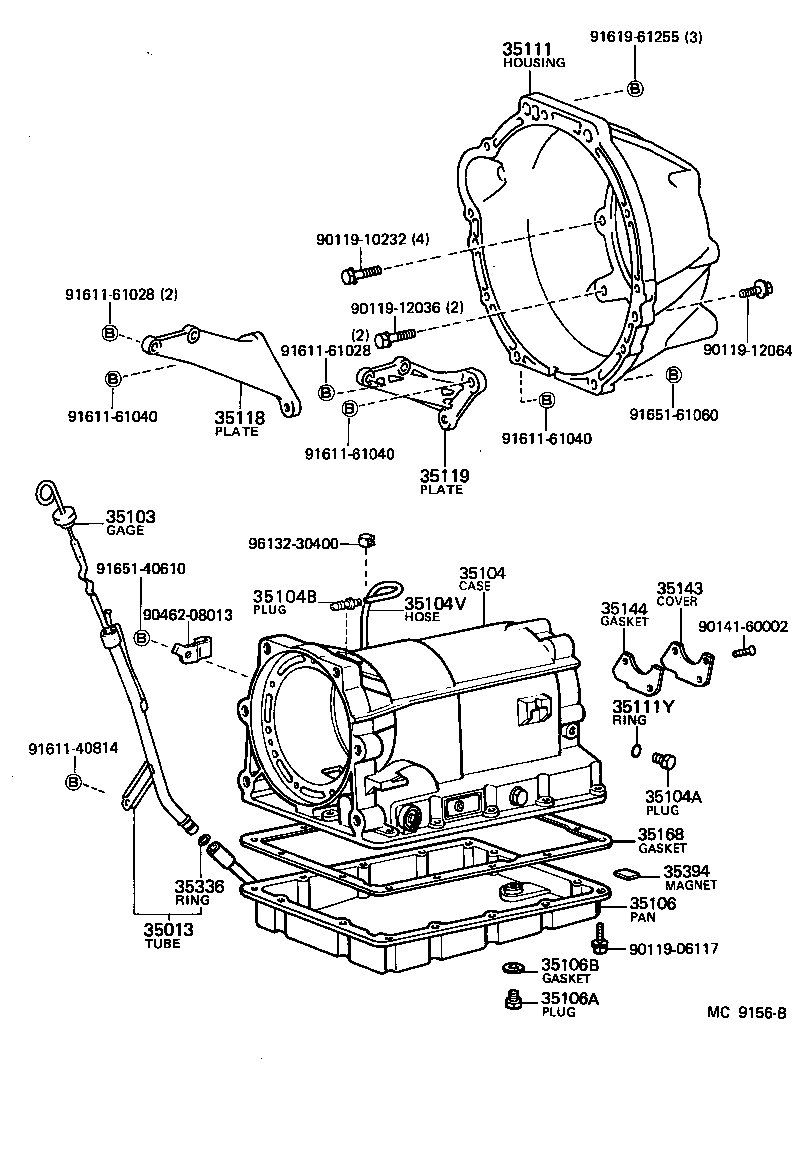

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-27010 |
YM20,21..3FC |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-40014 |
YM20,21..3FC |
1 | ||
| 35103-40013 |
YM20,21..3FC |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-22026 |
YM20,21..3FC |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-14020 |
YM20,21..3FC |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10006 |
YM20,21..3FC |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-27010 |
YM20,21..3FC |
1 | ||
| 35118 - PLATE, STIFENER, RH (ATM) | ||||
| 33118-28010 |
YM20,21..3FC |
1 | ||
| 35119 - PLATE, STIFENER, LH (ATM) | ||||
| 33119-28010 |
YM20,21..3FC |
1 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-22011 |
YM20,21..3FC |
1 | ||
| Common parts | ||||
| 90119-06117 | ||||
| 90119-10232 | ||||
| 90119-12036 | ||||
| 90119-12064 | ||||
| 90141-60002 | ||||
| 90462-08013 | ||||
| 91611-40814 | ||||
| 91611-61028 | ||||
| 91611-61040 | ||||
| 91619-61255 | ||||
| 91651-40610 | ||||
| 91651-61060 | ||||
| 96132-30400 | ||||
