YM20V-HNZ (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1YJ
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )1YJ,2YU

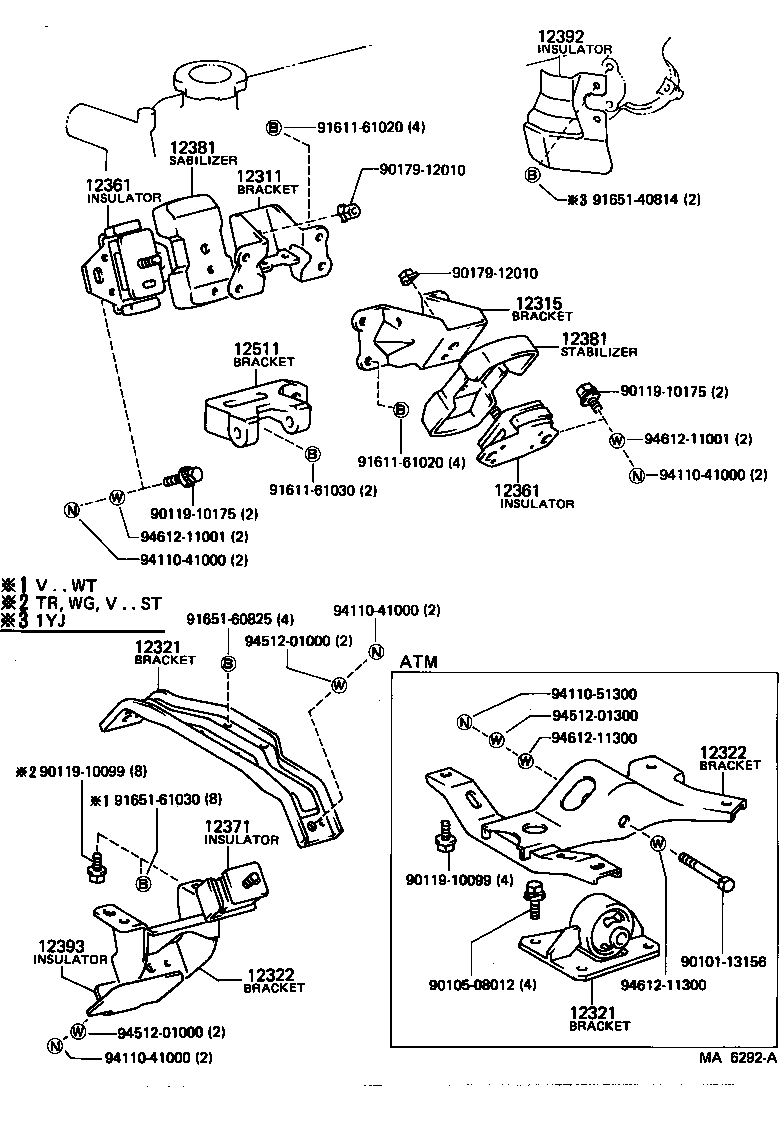

Click highlighted areas on diagram

diagram 12311 12315 12321 12321 12322 12322 12361 12361 12371 12381 12381 12392 12393 12511 9010113156 9010508012 9011910099 9011910099 9011910175 9011910175 9017912010 9017912010 9161161020 9161161020 9161161030 9165140814 9165160825 9165161030 9411041000 9411041000 9411041000 9411041000 9411051300 9451201000 9451201000 9451201300 9461211001 9461211001 9461211300 9461211300
Part # Description Qty Price
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-38130

1YJ,2YU..YM2#

TOYO GOMU

 2
12361-38120

1YJ,2YU..YM2#

MARUYASU

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-38130

1YJ,2YU..YM2#

TOYO GOMU

 2
12361-38120

1YJ,2YU..YM2#

MARUYASU

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-71020

1YJ,2YU..YM2#

 2
12381-73010

1YJ,2YU..YM2#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-71020

1YJ,2YU..YM2#

 2
12381-73010

1YJ,2YU..YM2#

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-71010

1YJ,2YU..YM2#

 1
Common parts
90101-13156
90105-08012
90119-10099
90119-10175
90179-12010
91611-61020
91611-61030
91651-40814
91651-60825
91651-61030
94110-41000
94110-51300
94512-01000
94512-01300
94612-11001
94612-11300
