YM20V-HN (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1YJ
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8210- )YM2#

Click highlighted areas on diagram

diagram 1149371010 1149371010 1717572010 1717572010 87240 87240 87245A 87245A 87245B 87245B 87245C 87245E 87245E 87246A 87246A 87246B 87246E 87246E 87248A 87248A 87248B 87248B 87249A 87249B 87249B 8726328010 8726328010 8726328011 8726328011 87265 87265 9017908035 9017908146 9017908146 9046024039 9046024039 9046024039 9046024039 9046108346 9046108471 9046110240 9046110240 9046110262 9046110367 9092901033 9092901033 9092901033 9092901033 9161140814 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140835 9161140835 9165140812 9165140812 9165140814 9165140814 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-95705

CM20,KM21,YM20,21..V,WG

 1
87240 - VALVE ASSY, HEATER WATER
87240-95705

CM20,KM21,YM20,21..V,WG

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95714

YM20,21

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95714

YM20,21

 1
87245B - HOSE, HEATER WATER, INLET B
87245-95713

YM20,21

 1
87245B - HOSE, HEATER WATER, INLET B
87245-95713

YM20,21

 1
87245C - HOSE, HEATER WATER ,INLET C
99552-31000

YM20,21

*H,L=820

 1
99556-30820

YM20,21

*H,L=820

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95715

CM20,KM21,YM20,21..V,WG

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95715

CM20,KM21,YM20,21..V,WG

 1
87246A - HOSE, HEATER WATER, OUTLET A
99552-31000

KM2#,TM20,YM20,21

*H,L=940

 1
99552-31000

KM21,YM20,21..V,WG

*H,L=940

 1
99556-30940

KM21,YM20,21..V,WG

*H,L=940

 1
87246A - HOSE, HEATER WATER, OUTLET A
99552-31000

KM2#,TM20,YM20,21

*H,L=940

 1
99552-31000

KM21,YM20,21..V,WG

*H,L=940

 1
99556-30940

KM21,YM20,21..V,WG

*H,L=940

 1
87246B - HOSE, HEATER WATER, OUTLET B
99552-30700

YM20..V4D..ST

W/RR HEATER,*H,L=490

 1
99556-30500

YM20..V4D..ST

*H,L=490,W/RR HEATER

 1
87246E - HOSE, HEATER WATER, OUTLET E
99556-30800

YM20,21..DLX,STD,SUP,SW

*H,L=800

 1
87245-95716

YM20..V4D..ST

W/RR HEATER

 1
99552-31000

YM20,21..DLX,STD,SUP,SW

*H,L=800

 1
87246E - HOSE, HEATER WATER, OUTLET E
99556-30800

YM20,21..DLX,STD,SUP,SW

*H,L=800

 1
87245-95716

YM20..V4D..ST

W/RR HEATER

 1
99552-31000

YM20,21..DLX,STD,SUP,SW

*H,L=800

 1
87248A - PIPE, HEATER WATER INLET, A
87208-28010

YM2#

 1
87248A - PIPE, HEATER WATER INLET, A
87208-28010

YM2#

 1
87248B - PIPE, HEATER WATER INLET, B
87248-95712

YM20,21

 1
87248B - PIPE, HEATER WATER INLET, B
87248-95712

YM20,21

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-95725

YM20..V4D..ST

W/RR HEATER

 1
87249B - PIPE, HEATER WATER OUTLET, B
87208-28020

YM2#

 1
87208-28021

YM2#

 1
87249B - PIPE, HEATER WATER OUTLET, B
87208-28020

YM2#

 1
87208-28021

YM2#

 1
87265 - CONNECTOR, HEATER WATER HOSE
87208-95705

YM20..V4D..ST

W/RR HEATER

 1
87248-95724

YM20,21..DLX,STD,SUP,SW

 1
87265 - CONNECTOR, HEATER WATER HOSE
87208-95705

YM20..V4D..ST

W/RR HEATER

 1
87248-95724

YM20,21..DLX,STD,SUP,SW

 1
Common parts
11493-71010
17175-72010
87263-28010
87263-28011
90179-08035
90179-08146
90460-24039
90461-08346
90461-08471
90461-10240
90461-10262
90461-10367
90929-01033
91611-40814
91611-40816
91611-40835
91651-40812
91651-40814
96112-10250

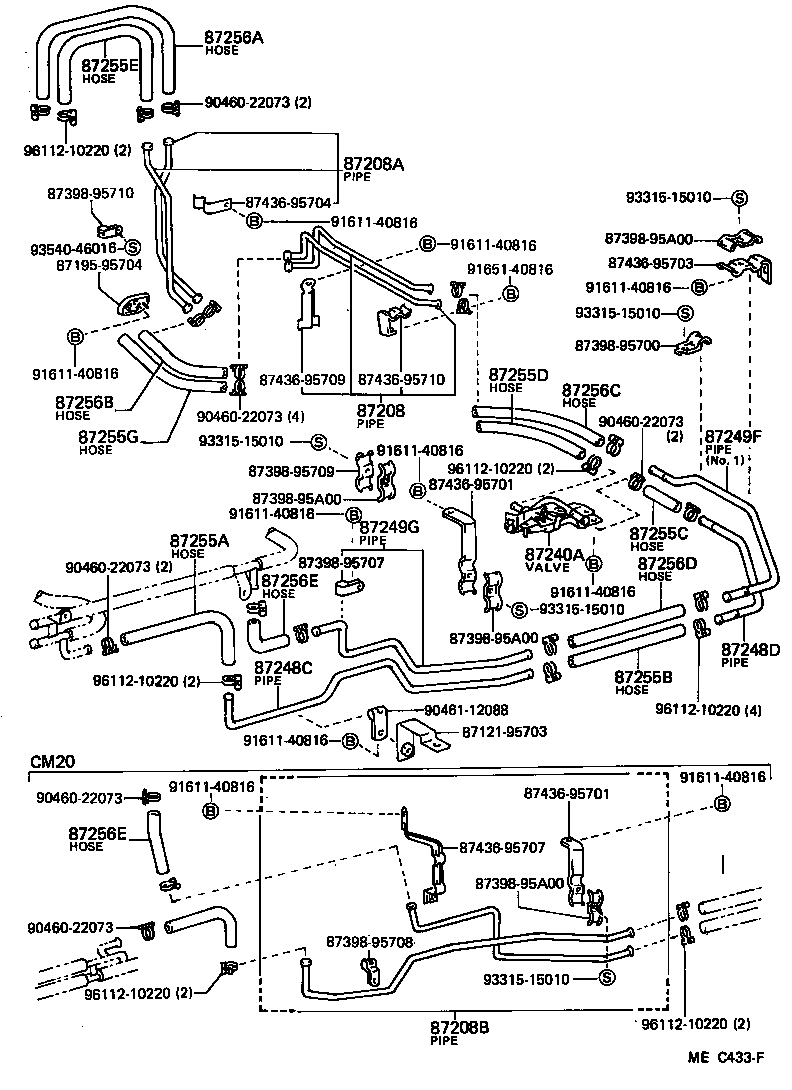

ILLUST NO. 2 OF 2(8210-8508)YM20..V4D..ST ; (8210-8508)WG..CS7,DLX,FXV,GXL,MTP,S,SW,XL

Click highlighted areas on diagram

diagram 8712195703 8719595704 87208 87208A 87208B 87240A 87248C 87248D 87249F 87249G 87255A 87255B 87255C 87255D 87255E 87255G 87256A 87256B 87256C 87256D 87256E 87256E 8739895700 8739895707 8739895708 8739895709 8739895710 8739895A00 8739895A00 8739895A00 8739895A00 8743695701 8743695701 8743695703 8743695704 8743695707 8743695709 8743695710 9046022073 9046022073 9046022073 9046022073 9046022073 9046022073 9046112088 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9165140816 9331515010 9331515010 9331515010 9331515010 9331515010 9354046016 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95710

YM20..05S

 1
87208-95714

YM20..05S

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-95709

YM20..V4D..ST

 1
87240A - VALVE ASSY, REAR HEATER WATER
87240-95703

YM20..V4D..ST

 1
87248C - PIPE, HEATER WATER INLET, C
87248-95726

YM20..V4D..ST

 1
87248D - PIPE, HEATER WATER INLET, D
87248-95708

YM20..V4D..ST

 1
87249F - PIPE, HEATER WATER OUTLET, F
87248-95707

YM20..V4D..ST

 1
87249G - PIPE, HEATER WATER OUTLET, G
87248-95727

YM20..V4D..ST

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99552-20500

YM20..V4D..ST

*H,L=380,W/RR HEATER

 1
99556-20380

YM20..V4D..ST

*H,L=380,W/RR HEATER

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99552-20300

YM20..V4D..ST

*H,L=210

 1
99556-20300

YM20..V4D..ST

*H,L=210

 1
87255C - HOSE, REAR HEATER WATER INLET, C
99552-20100

YM20..V4D..ST

*H,L=50

 1
99556-20050

YM20..V4D..ST

*H,L=50

 1
87255D - HOSE, REAR HEATER WATER INLET, D
87245-95719

YM20..05S

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-20700

YM20..V4D..ST

*H,L=640

 1
99556-20900

YM20..V4D..ST

*H,L=640

 1
87255G - HOSE, REAR HEATER WATER INLET, G
99556-20300

YM20..V4D..ST

*H,L=220

 1
99552-20300

YM20..V4D..ST

*H,L=220

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20900

YM20..V4D..ST

長さ=700

 1
99552-20700

YM20..V4D..ST

L=700

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99556-20300

YM20..V4D..ST

*H,L=240

 1
99552-20300

YM20..V4D..ST

*H,L=240

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
87245-95719

YM20..05S

 1
87256D - HOSE, REAR HEATER WATER OUTLET, D
99552-20300

YM20..V4D..ST

*H,L=210

 1
99556-20300

YM20..V4D..ST

*H,L=210

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87245-95717

YM20..V4D..ST

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87245-95717

YM20..V4D..ST

 1
Common parts
87121-95703
87195-95704
87398-95700
87398-95707
87398-95708
87398-95709
87398-95710
87398-95A00
87436-95701
87436-95703
87436-95704
87436-95707
87436-95709
87436-95710
90460-22073
90461-12088
91611-40816
91651-40816
93315-15010
93540-46016
96112-10220
