YM20V-HN (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1YJ
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )TR,V

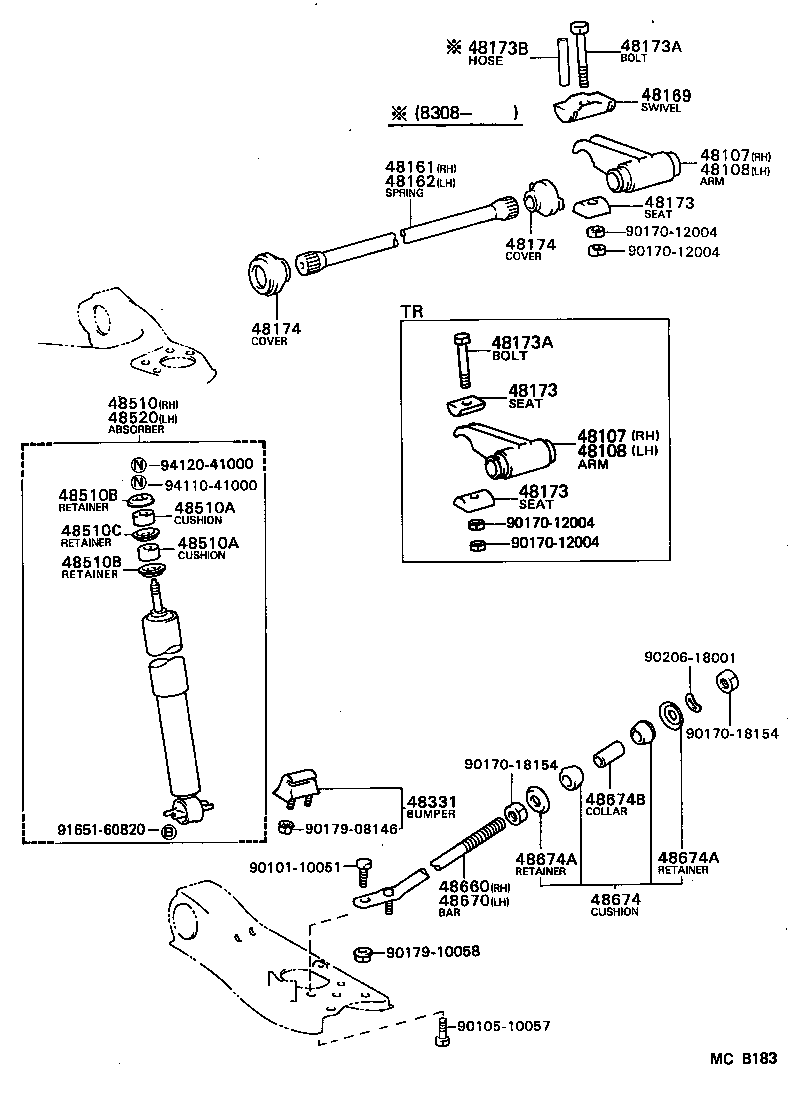

Click highlighted areas on diagram

diagram 48107 48107 48108 48108 48161 48162 48169 48173 48173 48173 48173A 48173A 48173B 48174 48174 48331 48510 48510A 48510A 48510B 48510B 48510C 48520 48660 48670 48674 48674A 48674A 48674B 9010110051 9010510057 9017012004 9017012004 9017012004 9017012004 9017018154 9017018154 9017908146 9017910058 9020618001 9165160820 9411041000 9412041000
Part # Description Qty Price
48161 - SPRING, TORSION BAR, RH
48161-27020

CM20,KM2#,TM20,YM20,21..V,WG

 1
48162 - SPRING, TORSION BAR, LH
48162-27020

CM20,KM2#,TM20,YM20,21..V,WG

 1
48169 - SWIVEL, ANCHOR ARM
48169-27011

CM20,KM21,YM20,21..V,WG

 2
48173 - SEAT, ANCHOR ARM ADJUSTER
48173-27010

CM20,KM21,YM20..V

 2
48173 - SEAT, ANCHOR ARM ADJUSTER
48173-27010

CM20,KM21,YM20..V

 2
48173 - SEAT, ANCHOR ARM ADJUSTER
48173-27010

CM20,KM21,YM20..V

 2
48173A - BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)
90101-12059

CM2#,KM2#,TM20,YM2#

 2
48173A - BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)
90101-12059

CM2#,KM2#,TM20,YM2#

 2
48174 - COVER, TORSION BAR DUST
48175-27010

CM2#,KM2#,TM20,YM2#

RR

 2
48174-27010

CM2#,KM2#,TM20,YM2#

FR

 2
48174 - COVER, TORSION BAR DUST
48175-27010

CM2#,KM2#,TM20,YM2#

RR

 2
48174-27010

CM2#,KM2#,TM20,YM2#

FR

 2
48331 - BUMPER, FRONT SPRING, NO.1
48331-29045

CM2#,KM2#,TM20,YM2#

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48500-29255

CM20,KM2#,TM20,YM20,21..V,WG

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

CM2#,KM2#,TM20,YM2#

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

CM2#,KM2#,TM20,YM2#

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02002

CM2#,KM2#,TM20,YM2#

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02002

CM2#,KM2#,TM20,YM2#

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02007

CM2#,KM2#,TM20,YM2#

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48500-29255

CM20,KM2#,TM20,YM20,21..V,WG

 1
48674 - CUSHION, STRUT BAR
48674-29026

CM2#,KM2#,TM20,YM2#

 2
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02030

CM2#,KM2#,TM20,YM2#

 4
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02030

CM2#,KM2#,TM20,YM2#

 4
48674B - COLLAR(FOR STRUT BAR CUSHION)
90387-18090

CM2#,KM2#,TM20,YM2#

 2
Common parts
90101-10051
90105-10057
90170-12004
90170-18154
90179-08146
90179-10058
90206-18001
91651-60820
94110-41000
94120-41000
