TM20G-MXZ (1981)

Toyota Lite/Townace Truck

Production Jan 1981 - Oct 1982
Engine 13TU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(7910-8210)DLX,GXL,STD,SUP,XL

Click highlighted areas on diagram

diagram 44608 44610 44610K 44626 44642 44643 44645 44647 44657A 44657B 44662 44662B 44662C 44669 44683 44683A 44696 44730 44758 4702 4702 9017908038 9331914008
Part # Description Qty Price
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-35100

KM20,TM20..DLX,GXL,STD,SUP,XL

 1
44610 - BOOSTER ASSY, BRAKE
44610-27030

KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST

FR DISC BRAKE

 1
44610-27030

KM20..(DLX,SUP)..CBU;KM20,TM20..HRF..(STD,XL);TM20..(MRF,SRF)..(DLX,GXL,STD,XL)

FR DISC BRAKE

 1
44610-27050

KM20,TM20..DLX,GXL,STD,SUP,XL

FR DRUM BRAKE

 1
44610K - BOOSTER KIT, BRAKE
04443-12190

KM20,TM20..DLX,GXL,STD,SUP,XL

 1
44626 - RETAINER, BOOSTER ROD CUP
44626-60010

KM20,TM20..DLX,GXL,STD,SUP,XL

 1
44642 - PISTON, BRAKE BOOSTER
44642-14170

KM20,TM20..DLX,GXL,STD,SUP,XL

 1
44643 - RETAINER, DIAPHRAGM
44643-60010

KM20,TM20..DLX,GXL,STD,SUP,XL

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44628-60010

KM20,TM20..DLX,GXL,STD,SUP,XL

 1
44647 - RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)
44629-30090

KM20,TM20..DLX,GXL,STD,SUP,XL

 1
44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER)
96150-01600

KM20,TM20..DLX,GXL,STD,SUP,XL

 1
44657B - WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)
44645-20100

KM20,TM20..DLX,GXL,STD,SUP,XL

 1
44662 - RETAINER, REACTION, NO.1
44662-35100

KM20,TM20..DLX,GXL,STD,SUP,XL

 1
44662B - LEVER, REACTION
44661-35100

KM20,TM20..DLX,GXL,STD,SUP,XL

 3
44662C - PLATE, REACTION, NO.1
44607-22330

KM20..(DLX,SUP)..CBU;KM20,TM20..HRF..(STD,XL);TM20..(MRF,SRF)..(DLX,GXL,STD,XL)

FR DISC BRAKE

 1
44607-22330

KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST

FR DISC BRAKE

 1
44607-27050

KM20,TM20..DLX,GXL,STD,SUP,XL

FR DRUM BRAKE

 1
44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER
44669-60010

KM20,TM20..DLX,GXL,STD,SUP,XL

 1
44683 - CONNECTOR, BOOSTER BODY
44682-20150

KM20,TM20..DLX,GXL,STD,SUP,XL

 1
44683A - LOCK, CONNECTOR
44683-20100

KM20,TM20..DLX,GXL,STD,SUP,XL

 1
44696 - GROMMET, CHECK VALVE
90480-24439

KM2#,TM20,YM2#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20060

KM2#,TM20,YM2#

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-20051

KM20,TM20

 1
Common parts
90179-08038
93319-14008
Linked diagrams
4702

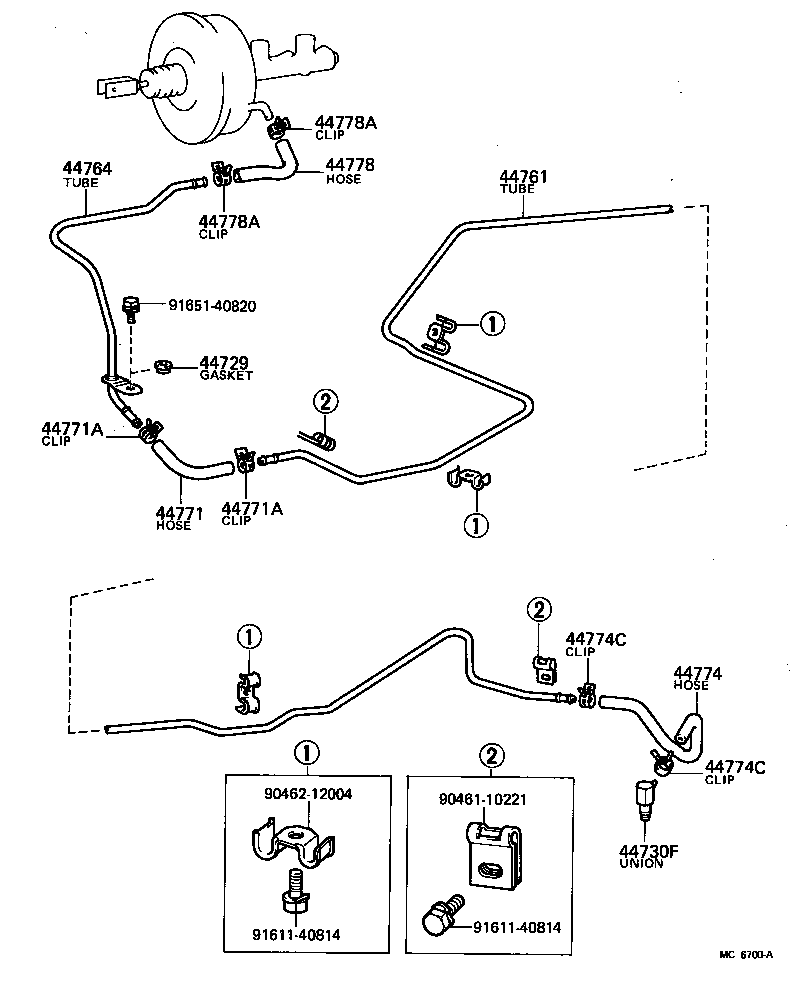

ILLUST NO. 2 OF 2(7910-8210)TM20

Click highlighted areas on diagram

diagram 44729 44730F 44761 44764 44771 44771A 44771A 44774 44774C 44774C 44778 44778A 44778A 9046110221 9046212004 9161140814 9161140814 9165140820
Part # Description Qty Price
44729 - GASKET, VACUUM TUBE
44729-25010

CM2#,KM2#,TM20,YM2#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90407-51004

TM20

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-27041

TM20

 1
44761-27042

TM20

 1
44764 - TUBE, BOOSTER VACUUM
44764-27031

KM20,TM20..V,WG

 1
44764-27030

KM20,TM20..HRF,SRF

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-27020

CM20,KM2#,TM20,YM20,21..V,WG

 1
44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE)
90467-16141

CM2#,KM2#,TM20,YM2#

 2
44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE)
90467-16141

CM2#,KM2#,TM20,YM2#

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-28040

TM20

 1
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16141

KM2#,TM20,YM2#

 2
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16141

KM2#,TM20,YM2#

 2
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-27010

KM20,TM20

 1
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16141

CM2#,KM2#,TM20,YM2#

 2
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16141

CM2#,KM2#,TM20,YM2#

 2
Common parts
90461-10221
90462-12004
91611-40814
91651-40820
