TM20G-MXZ (1981)
Toyota Lite/Townace Truck
Production
Jan 1981
-
Oct 1982
Engine
13TU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8101-8210)5F ; (8210- )YM2#..MTM

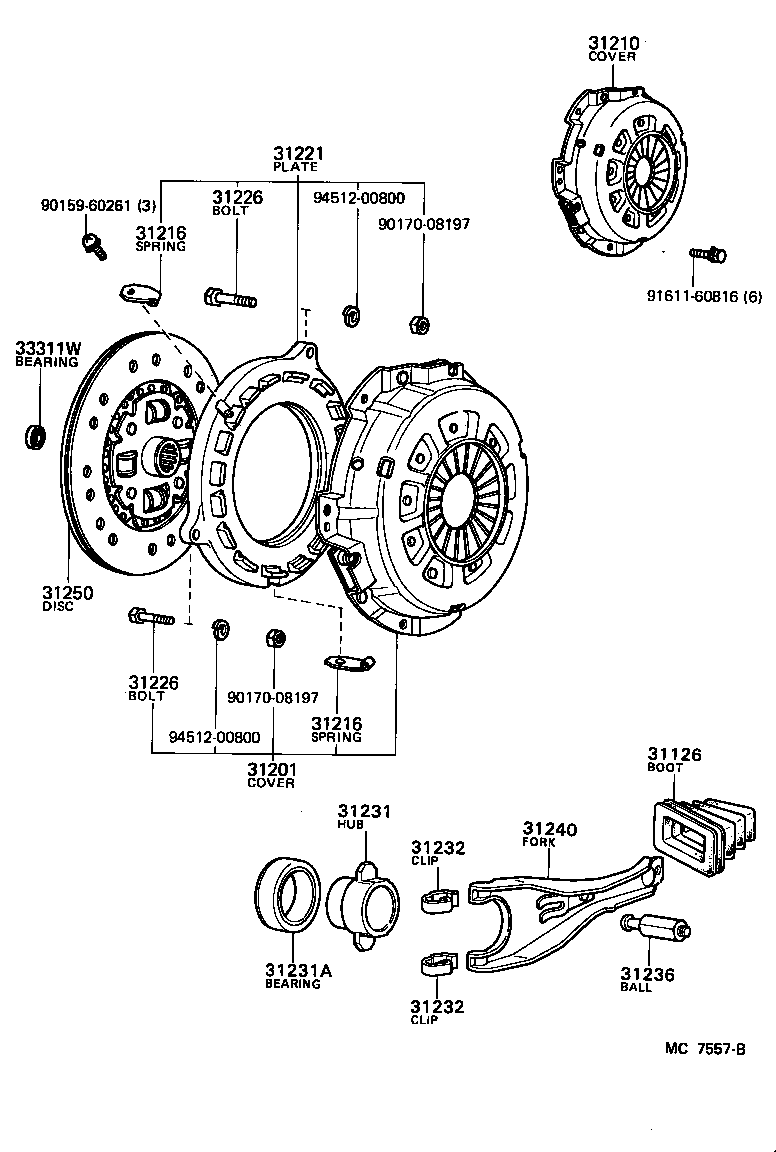

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31201 - COVER SUB-ASSY, CLUTCH | ||||
| 31201-29076 |
TM20 |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-26021 |
TM20 |
1 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-30010 |
CM2#,TM20,YM2#..MTM |
3 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-30010 |
CM2#,TM20,YM2#..MTM |
3 | ||
| 31221 - PLATE, CLUTCH PRESSURE | ||||
| 31221-29035 |
CM2#,TM20,YM21..MTM |
1 | ||
| 31226 - BOLT, CLUTCH PRESSURE PLATE | ||||
| 90101-08350 |
CM2#,KM20,TM20,YM2#..MTM |
3 | ||
| 31226 - BOLT, CLUTCH PRESSURE PLATE | ||||
| 90101-08350 |
CM2#,KM20,TM20,YM2#..MTM |
3 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-30071 |
TM20 |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-40001 |
TM20 |
1 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-22010 |
TM20..5F |
2 | ||
| 31232-30010 |
TM20 |
2 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-22010 |
TM20..5F |
2 | ||
| 31232-30010 |
TM20 |
2 | ||
| 31236 - BALL, RELEASE FORK | ||||
| 31236-35020 |
TM20..5F |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31204-20040 |
TM20 |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-14110 |
TM20..MTM |
1 | ||
| 31250-25020 |
TM20..MTM |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 97123-06001 |
KM20,TM20 6001 ZZ C3 |
1 | ||
| Common parts | ||||
| 90159-60261 | ||||
| 90170-08197 | ||||
| 91611-60816 | ||||
| 94512-00800 | ||||
