TM20G-MXZ (1981)
Toyota Lite/Townace Truck
Production
Jan 1981
-
Oct 1982
Engine
13TU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7910-8210)13TU..MTM

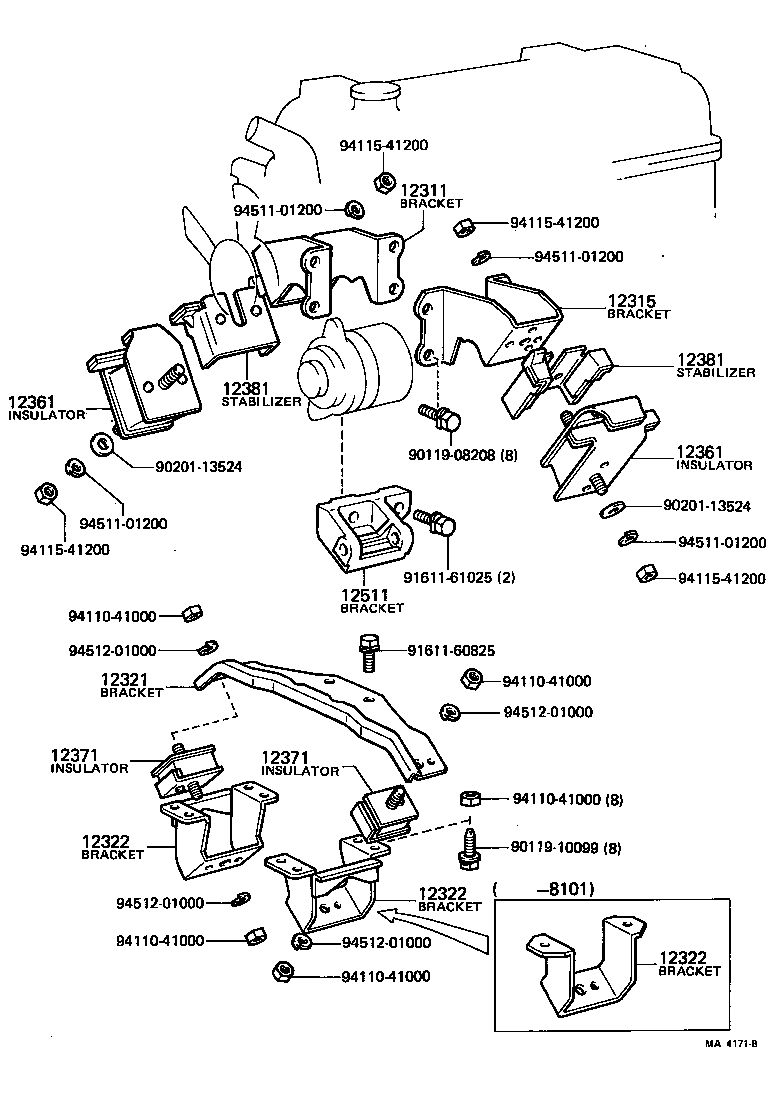

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-25050 |
13TU..TM20 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12312-25040 |
13TU..TM20 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-18010 |
13TU..TM20 |
1 | ||
| 12321-18050 |
13TU..TM20..MTM |
1 | ||
| 12322 - BRACKET, ENGINE MOUNTING, REAR NO.2 | ||||
| 12322-18020 |
13TU..TM20..MTM |
2 | ||
| 12322-18010 |
13TU..TM20 |
2 | ||
| 12322 - BRACKET, ENGINE MOUNTING, REAR NO.2 | ||||
| 12322-18010 |
13TU..TM20 |
2 | ||
| 12322-18020 |
13TU..TM20..MTM |
2 | ||
| 12322 - BRACKET, ENGINE MOUNTING, REAR NO.2 | ||||
| 12322-18020 |
13TU..TM20..MTM |
2 | ||
| 12322-18010 |
13TU..TM20 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-26041 |
13TU..TM20 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-26041 |
13TU..TM20 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-13050 |
13TU..TM20..MTM |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-13050 |
13TU..TM20..MTM |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-26011 |
13TU..TM20 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-26011 |
13TU..TM20 |
2 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-25010 |
13TU..TM20 |
1 | ||
| Common parts | ||||
| 90119-08208 | ||||
| 90119-10099 | ||||
| 90201-13524 | ||||
| 91611-60825 | ||||
| 91611-61025 | ||||
| 94110-41000 | ||||
| 94115-41200 | ||||
| 94511-01200 | ||||
| 94512-01000 | ||||
