TM20G-MQZ (1981)

Toyota Lite/Townace Truck

Production Jan 1981 - Oct 1982
Engine 13TU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

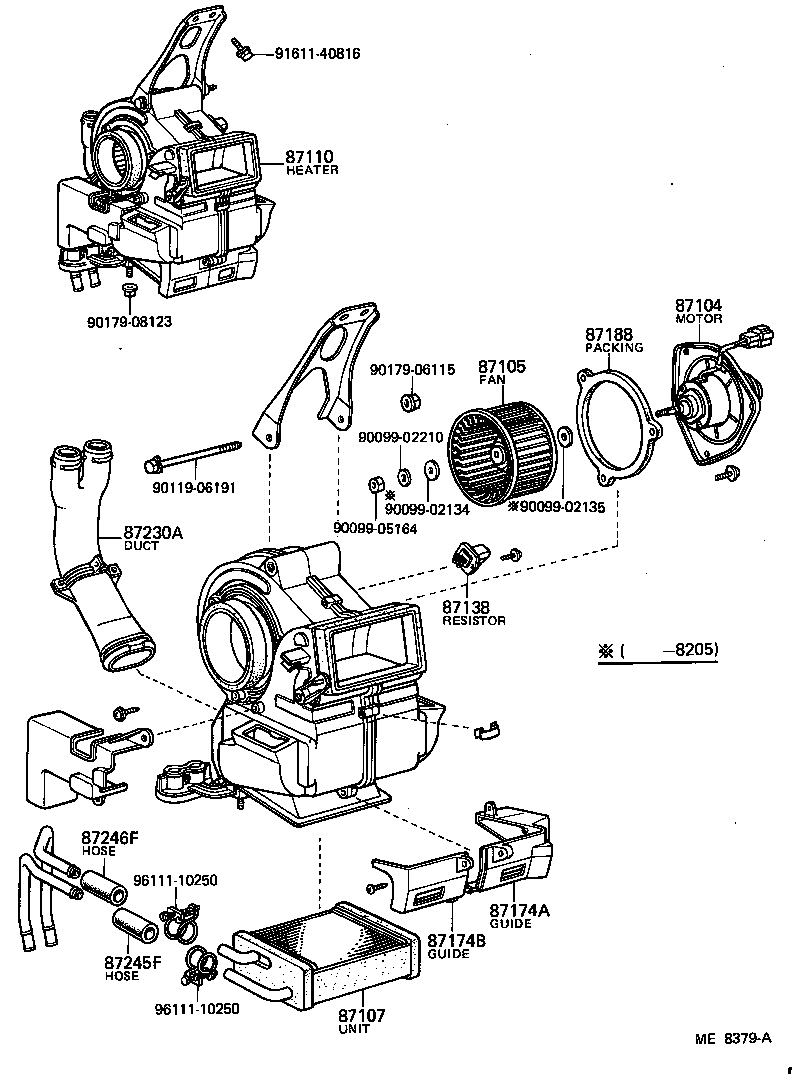

ILLUST NO. 1 OF 2(7910-8210)

Click highlighted areas on diagram

diagram 87104 87105 87107 87110 87138 87174A 87174B 87188 87230A 87245F 87246F 9009902134 9009902135 9009902210 9009905164 9011906191 9017906115 9017908123 9161140816 9611110250 9611110250
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-95403

KM20,TM20

COLD SPEC

 1
87104-95403

TM20

 1
87104-95401

KM20,TM20

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-12030

KM20,TM20

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-95403

KM20,TM20

COLD SPEC

 1
87107-95400

KM20,TM20

 1
87110 - HEATER ASSY
87110-95709

TM20..FXV,GXL

 1
87110-95705

KM20,TM20

COLD SPEC

 1
87138 - RESISTOR, HEATER BLOWER
87138-87004

TM20

 1
87138-87004

KM20,TM20

COLD SPEC

 1
87138-87003

KM20,TM20

 1
87174A - GUIDE, AIR HEATER
87174-95010

KM20,TM20

 1
87174B - GUIDE, AIR, NO.2
87175-95010

KM20,TM20

 1
87188 - PACKING, HEATER BLOWER MOTOR
87128-22010

KM20,TM20

 1
87230A - DUCT ASSY, HEATER AIR
87212-95700

KM20,TM20

 1
87245F - HOSE, HEATER WATER, INLET F
99552-30100

KM20,TM20

*H,L=450

 1
87246F - HOSE, HEATER WATER, OUTLET F
99552-30100

KM20,TM20

*H,L=450

 1
Common parts
90099-02134
90099-02135
90099-02210
90099-05164
90119-06191
90179-06115
90179-08123
91611-40816
96111-10250

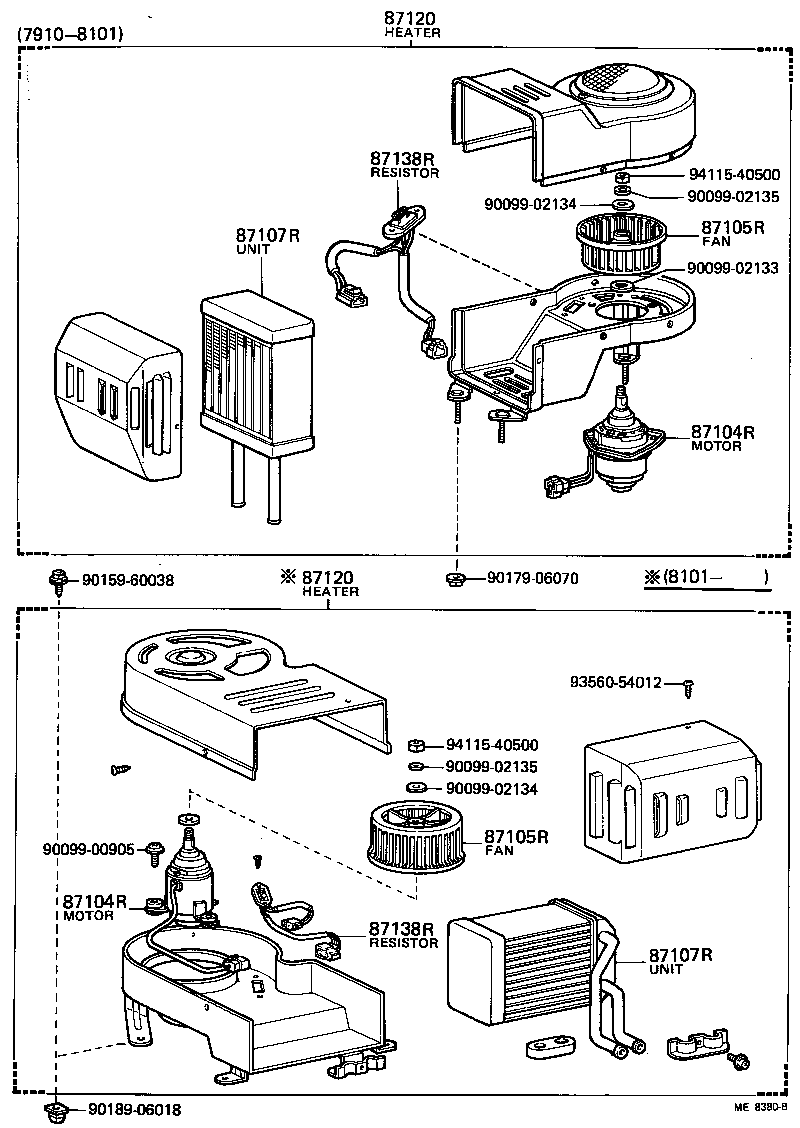

ILLUST NO. 2 OF 2(7910-8210)TM20

Click highlighted areas on diagram

diagram 87104R 87104R 87105R 87105R 87107R 87107R 87120 87120 87138R 87138R 9009900905 9009902133 9009902134 9009902134 9009902135 9009902135 9015960038 9017906070 9018906018 9356054012 9411540500 9411540500
Part # Description Qty Price
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-87003

TM20..DLX,FXV,GXL,XL

 1
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-87003

TM20..DLX,FXV,GXL,XL

 1
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-87002

TM20..DLX,FXV,GXL,XL

 1
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-87002

TM20..DLX,FXV,GXL,XL

 1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-95700

TM20..DLX,FXV,GXL,XL

 1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-95700

TM20..DLX,FXV,GXL,XL

 1
87120 - HEATER ASSY, REAR
87110-95710

TM20..DLX,FXV,GXL,XL

 1
87120 - HEATER ASSY, REAR
87110-95710

TM20..DLX,FXV,GXL,XL

 1
87138R - RESISTOR, REAR HEATER BLOWER
87138-95700

TM20..DLX,FXV,GXL,XL

 1
87138R - RESISTOR, REAR HEATER BLOWER
87138-95700

TM20..DLX,FXV,GXL,XL

 1
Common parts
90099-00905
90099-02133
90099-02134
90099-02135
90159-60038
90179-06070
90189-06018
93560-54012
94115-40500
