TM20G-MQZ (1981)

Toyota Lite/Townace Truck

Production Jan 1981 - Oct 1982
Engine 13TU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8508)V,WG..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

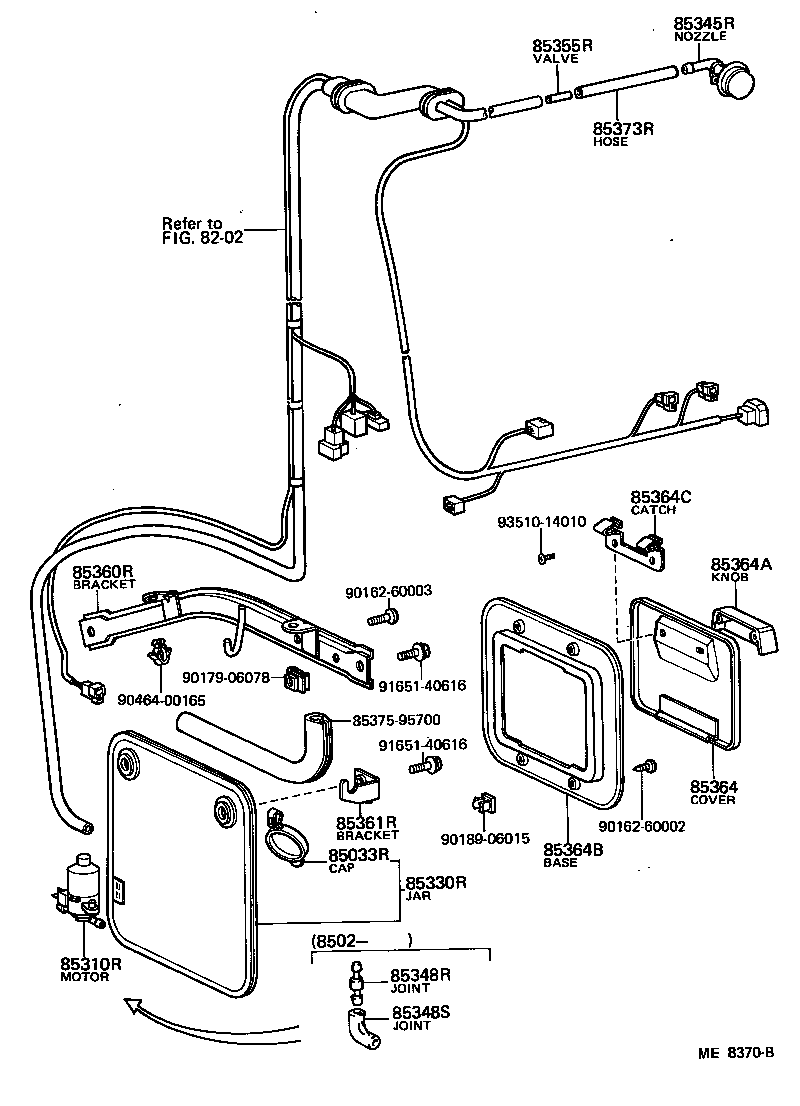

Click highlighted areas on diagram

diagram 8202 85033R 85310R 85330R 85345R 85348R 85348S 85355R 85360R 85361R 85364 85364A 85364B 85364C 85373R 8537595700 9016260002 9016260003 9017906078 9018906015 9046400165 9165140616 9165140616 9351014010
Part # Description Qty Price
85033R - CAP ASSY, REAR WASHER
85332-10080

CM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
85310R - MOTOR ASSY, REAR WASHER
85310-10070

CM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
85330R - JAR ASSY, REAR WASHER
85330-95701

CM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
85345R - NOZZLE, REAR WASHER
85035-95700

CM20,KM2#,TM20,YM20,21..(V,WG)..(DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
85355R - VALVE, REAR WASHER HOSE
85031-30010

CM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
85360R - BRACKET ASSY, REAR WASHER
85307-95700

CM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
85361R - HOLDER, REAR WASHER
85373-95700

CM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
85364 - COVER, REAR WASHER JAR
85306-9570001

KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL)

BLACK,BLACK

 1
85364A - KNOB, REAR WASHER JAR COVER
55521-95260

CM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
85364B - BASE, REAR WASHER JAR COVER
85366-9570001

KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL)

BLACK,BLACK

 1
85364C - CATCH, REAR WASHER JAR COVER
85374-95700

CM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90446-06013

CM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

*H,L=350

 1
Common parts
85375-95700
90162-60002
90162-60003
90179-06078
90189-06015
90464-00165
91651-40616
93510-14010
Linked diagrams
8202
