TM20G-MQZ (1981)

Toyota Lite/Townace Truck

Production Jan 1981 - Oct 1982
Engine 13TU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8210)TM20

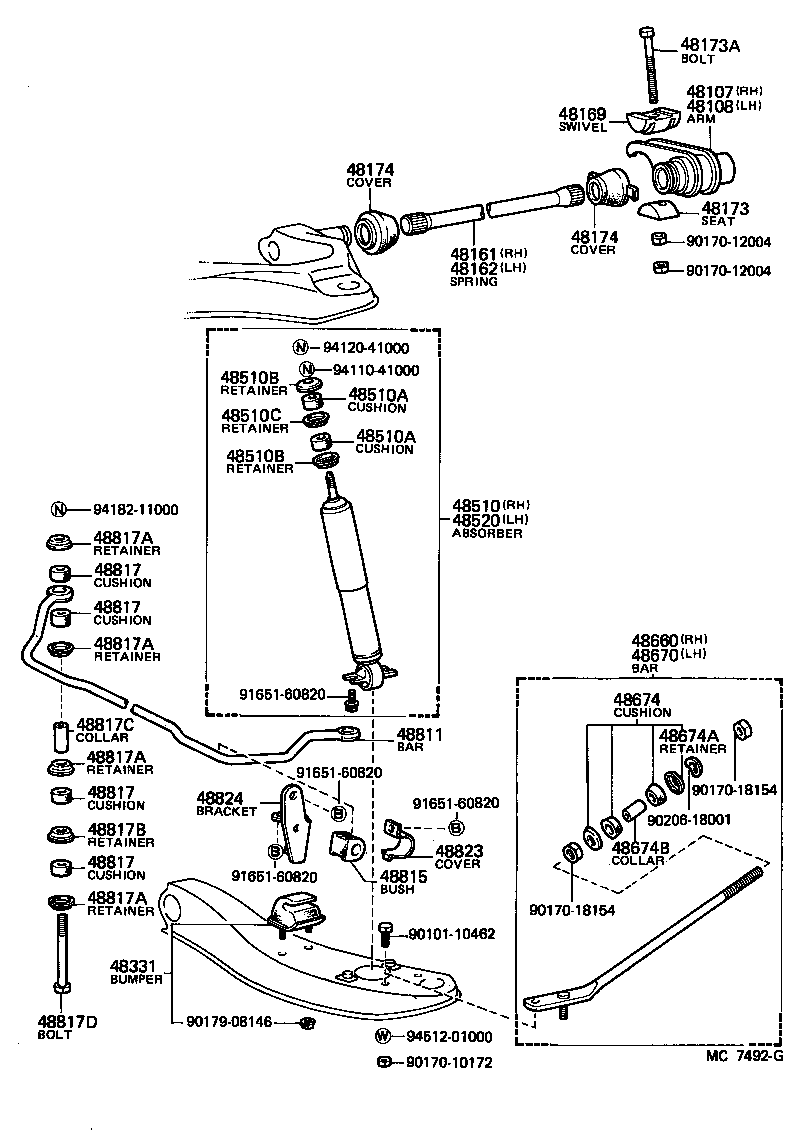

Click highlighted areas on diagram

diagram 48107 48108 48161 48162 48169 48173 48173A 48174 48174 48331 48510 48510A 48510A 48510B 48510B 48510C 48520 48660 48670 48674 48674A 48674B 48811 48815 48817 48817 48817 48817 48817A 48817A 48817A 48817A 48817B 48817C 48817D 48823 48824 9010110462 9017010172 9017012004 9017012004 9017018154 9017018154 9017908146 9020618001 9165160820 9165160820 9165160820 9165160820 9411041000 9412041000 9418211000 9451201000
Part # Description Qty Price
48107 - ARM SUB-ASSY, ANCHOR, RH
48107-27010

KM20,TM20

 1
48108 - ARM SUB-ASSY, ANCHOR, LH
48108-27010

KM20,TM20

 1
48161 - SPRING, TORSION BAR, RH
48161-27020

CM20,KM2#,TM20,YM20,21..V,WG

 1
48162 - SPRING, TORSION BAR, LH
48162-27020

CM20,KM2#,TM20,YM20,21..V,WG

 1
48169 - SWIVEL, ANCHOR ARM
48169-27010

KM20,TM20..V,WG

 2
48173 - SEAT, ANCHOR ARM ADJUSTER
48173-27010

KM20,TM20..V,WG

 2
48173A - BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)
90101-12059

CM2#,KM2#,TM20,YM2#

 2
48174 - COVER, TORSION BAR DUST
48175-27010

CM2#,KM2#,TM20,YM2#

RR

 2
48174-27010

CM2#,KM2#,TM20,YM2#

FR

 2
48174 - COVER, TORSION BAR DUST
48175-27010

CM2#,KM2#,TM20,YM2#

RR

 2
48174-27010

CM2#,KM2#,TM20,YM2#

FR

 2
48331 - BUMPER, FRONT SPRING, NO.1
48331-29045

CM2#,KM2#,TM20,YM2#

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48500-29255

CM20,KM2#,TM20,YM20,21..V,WG

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

CM2#,KM2#,TM20,YM2#

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

CM2#,KM2#,TM20,YM2#

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02002

CM2#,KM2#,TM20,YM2#

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02002

CM2#,KM2#,TM20,YM2#

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02007

CM2#,KM2#,TM20,YM2#

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48500-29255

CM20,KM2#,TM20,YM20,21..V,WG

 1
48660 - BAR ASSY, STRUT, RH
48660-29075

KM20,TM20

 1
48670 - BAR ASSY, STRUT, LH
48670-29075

KM20,TM20

 1
48674 - CUSHION, STRUT BAR
48674-29026

CM2#,KM2#,TM20,YM2#

 2
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02030

CM2#,KM2#,TM20,YM2#

 4
48674B - COLLAR(FOR STRUT BAR CUSHION)
90387-18090

CM2#,KM2#,TM20,YM2#

 2
48811 - BAR, STABILIZER, FRONT
48811-27030

TM20

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-14030

TM20

 2
48817 - CUSHION, FRONT STABILIZER
90948-01002

TM20

 8
48817 - CUSHION, FRONT STABILIZER
90948-01002

TM20

 8
48817 - CUSHION, FRONT STABILIZER
90948-01002

TM20

 8
48817 - CUSHION, FRONT STABILIZER
90948-01002

TM20

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

TM20

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

TM20

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

TM20

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

TM20

 8
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02005

TM20

 2
48817C - COLLAR(FOR STABILIZER BAR)
90440-14004

TM20

 2
48817D - BOLT(FOR FRONT STABILIZER)
90101-10090

TM20

 2
48823 - COVER, STABILIZER LINK(FOR FRONT)
48823-27010

TM20

 2
48824 - BRACKET, STABILIZER, FRONT
48824-27020

TM20

RH

 1
48829-27020

TM20

LH

 1
Common parts
90101-10462
90170-10172
90170-12004
90170-18154
90179-08146
90206-18001
91651-60820
94110-41000
94120-41000
94182-11000
94512-01000
