TM20G-MQZ (1981)

Toyota Lite/Townace Truck

Production Jan 1981 - Oct 1982
Engine 13TU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8101-8210)5F

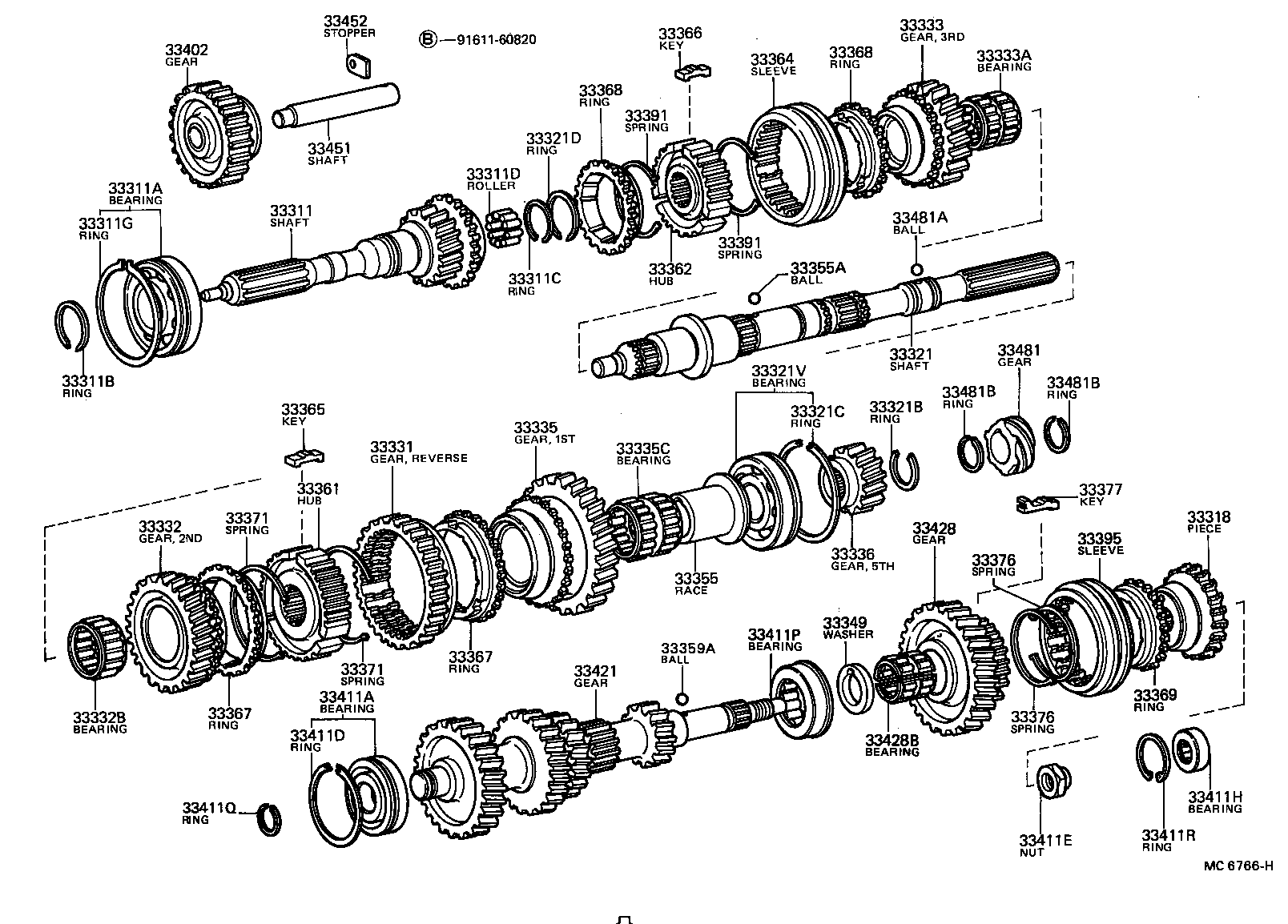

Click highlighted areas on diagram

diagram 33311 33311A 33311B 33311C 33311D 33311G 33318 33321 33321B 33321C 33321D 33321V 33331 33332 33332B 33333 33333A 33335 33335C 33336 33349 33355 33355A 33359A 33361 33362 33364 33365 33366 33367 33367 33368 33368 33369 33371 33371 33376 33376 33377 33391 33391 33395 33402 33411A 33411D 33411E 33411H 33411P 33411Q 33411R 33421 33428 33428B 33451 33452 33481 33481A 33481B 33481B 9161160820
Part # Description Qty Price
33311 - SHAFT, INPUT
33301-35040

TM20..5F

 1
33311A - BEARING (FOR INPUT SHAFT FRONT)
90363-32010

TM20..5F

 1
33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER)
90521-33001

TM20..5F

 1
33311D - BEARING, INPUT SHAFT
90361-06047

CM2#,KM2#,TM20,YM2#..MTM

 14
33311G - RING, SHAFT SNAP (FOR FRONT BEARING)
90520-71221

TM20..5F

 1
33318 - PIECE, GEAR SPLINE, NO.5
33318-30010

TM20..5F

 1
33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET)
90520-28245

CM2#,KM2#,TM20,YM2#..MTM

厚さ=1.80−1.85,ﾏｰｸ D,T=1.80-1.85

 1
33321V - BEARING (FOR OUTPUT SHAFT CENTER)
90363-30026

TM20..5F

 1
33331 - GEAR, REVERSE
33331-35040

TM20..5F

N=34

 1
33333 - GEAR, 3RD
33034-35011

TM20..5F

N=27

 1
33335 - GEAR, 1ST
33032-35010

TM20..5F

N=33

 1
33336 - GEAR, 5TH
33336-30010

TM20..5F

 1
33395 - SLEEVE, TRANSMISSION HUB, NO.3
33395-14012

TM20..5F

 1
33395-14013

TM20..5F

 1
33395-14010

TM20..5F

 1
33402 - GEAR SUB-ASSY, REVERSE IDLER
33402-35030

TM20..5F

 1
33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT)
90365-25006

TM20..5F

 1
33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR)
90365-18002

TM20..5F

 1
33411R - RING, SNAP, COUNTER GEAR REAR BEARING
90521-38001

TM20..5F

 1
33421 - GEAR, COUNTER
33421-35080

TM20..5F

N=44,31,21,14

 1
33428 - GEAR, COUNTERSHAFT 5TH
33046-30020

TM20..5F

 1
33428B - BEARING (FOR COUNTER 5TH GEAR)
90364-26001

TM20..5F

 1
33451 - SHAFT, REVERSE IDLER GEAR
33451-35020

TM20..5F

 1
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-30040

TM20..5F

歯数=6,ﾏｰｸ 6X21−23,N=6

 1
33481-20070

TM20..5F

歯数=5,ﾏｰｸ 5X17−19,N=5

 1
33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
90360-06004

CM2#,KM2#,TM20,YM2#..MTM

 1
Common parts
91611-60820
