TM20G-MNZ (1981)
Toyota Lite/Townace Truck

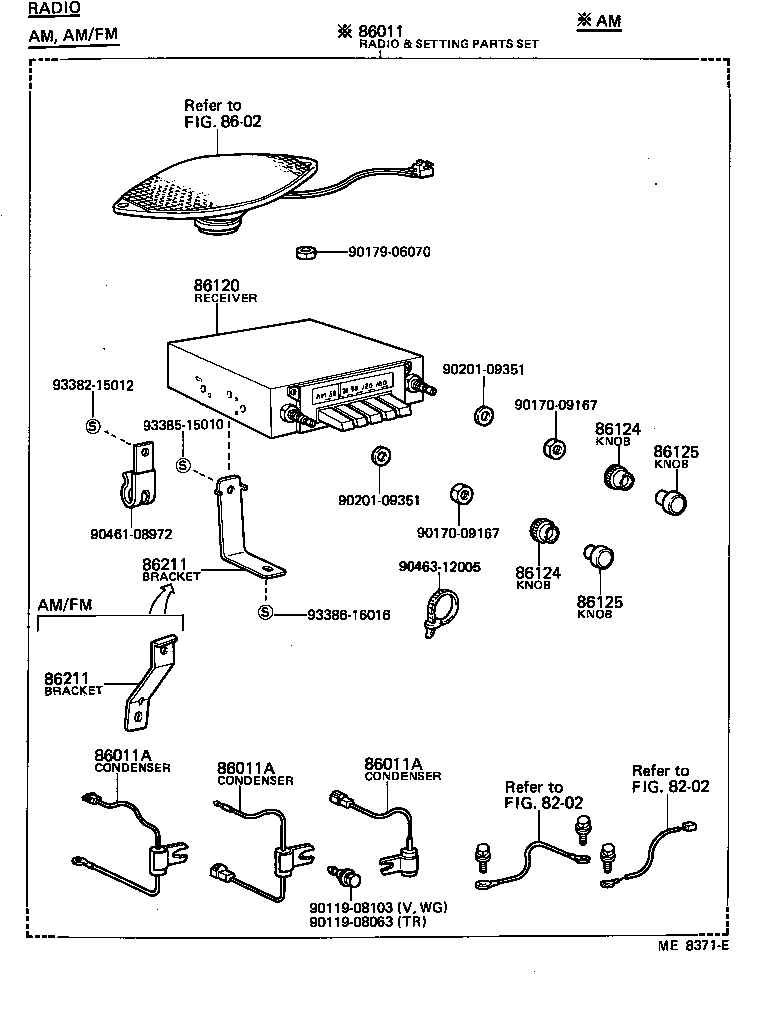

ILLUST NO. 1 OF 4(7910-8210)DLX,FXV,GXL,SUP,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011 - RADIO & SETTING PARTS SET | ||||
| 86011-29195 |
KM20,TM20..DLX,SUP,XL AM |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04023 |
CM2#,KM2#,TM20,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL REGULATOR |
1 | ||
| 90980-04038 |
TM20..DLX,FXV,GXL,XL IGUNITER |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04023 |
CM2#,KM2#,TM20,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL REGULATOR |
1 | ||
| 90980-04038 |
TM20..DLX,FXV,GXL,XL IGUNITER |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04023 |
CM2#,KM2#,TM20,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL REGULATOR |
1 | ||
| 90980-04038 |
TM20..DLX,FXV,GXL,XL IGUNITER |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-95700 |
KM20,TM20..DLX,SUP,XL AM |
1 | ||
| 86124 - KNOB, RADIO RECEIVER CONTROL | ||||
| 86124-14110 |
TM20..DLX,FXV,GXL,XL RH W/STEREO COMPONENT |
1 | ||
| 86124-12010 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
2 | ||
| 86124-14120 |
TM20..DLX,FXV,GXL,XL LH W/STEREO COMPONENT |
1 | ||
| 86124 - KNOB, RADIO RECEIVER CONTROL | ||||
| 86124-14110 |
TM20..DLX,FXV,GXL,XL RH W/STEREO COMPONENT |
1 | ||
| 86124-12010 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
2 | ||
| 86124-14120 |
TM20..DLX,FXV,GXL,XL LH W/STEREO COMPONENT |
1 | ||
| 86125 - KNOB, RADIO RECEIVER SWITCH | ||||
| 86125-12011 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
2 | ||
| 86125 - KNOB, RADIO RECEIVER SWITCH | ||||
| 86125-12011 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
2 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-95703 |
KM20,TM20..DLX,SUP,XL AM |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-95703 |
KM20,TM20..DLX,SUP,XL AM |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90119-08103 | ||||
| 90170-09167 | ||||
| 90179-06070 | ||||
| 90201-09351 | ||||
| 90461-08972 | ||||
| 90463-12005 | ||||
| 93382-15012 | ||||
| 93385-15010 | ||||
| 93386-16016 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8602 | ||||

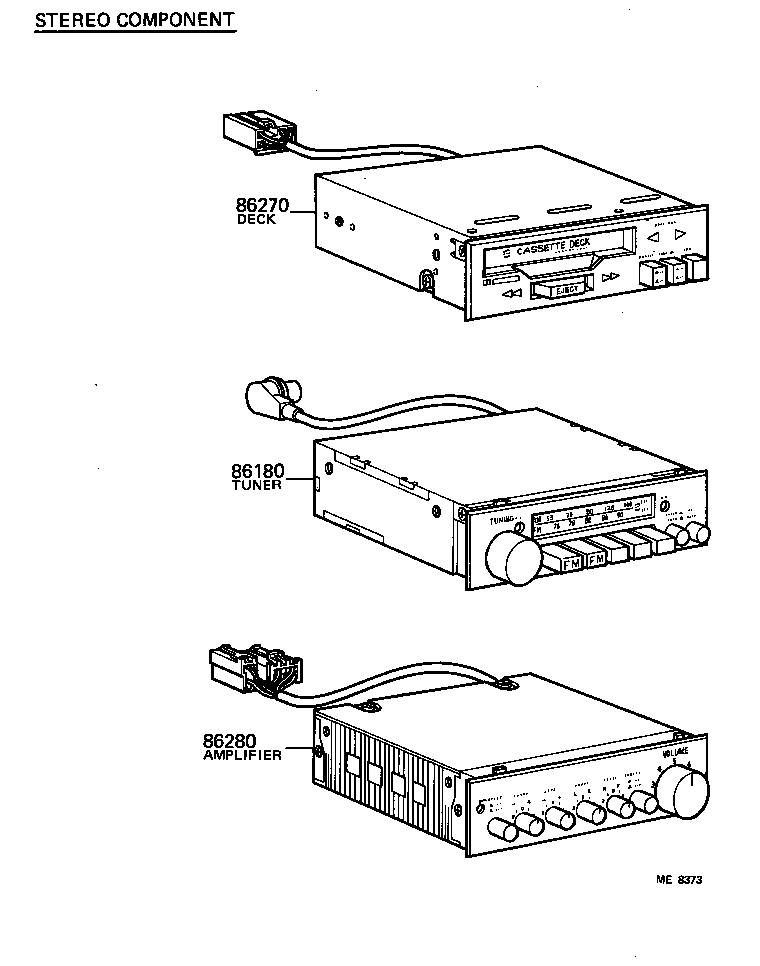

ILLUST NO. 3 OF 4(7910-8210)TM20..DLX,FXV,GXL,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86180 - TUNER ASSY, STEREO COMPONENT | ||||
| 86180-12010 |
TM20..DLX,FXV,GXL,XL FM |
1 | ||
| 86180-12020 |
TM20..DLX,FXV,GXL,XL AM/FM |
1 | ||
| 86270 - DECK ASSY, STEREO COMPONENT | ||||
| 86270-12010 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-12010 |
TM20..DLX,FXV,GXL,XL |
1 | ||

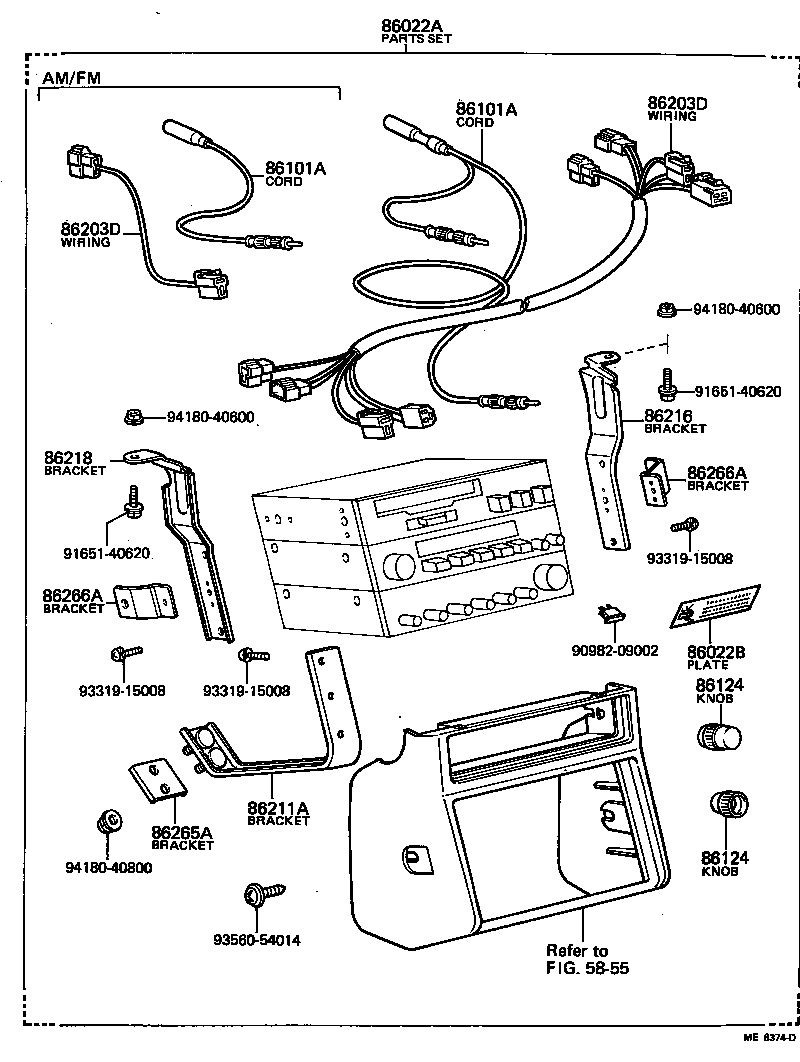

ILLUST NO. 3 OF 4(7910-8210)TM20..DLX,FXV,GXL,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86022A - PARTS SET, STEREO COMPONENT SETTING | ||||
| 86022-29025 |
TM20..DLX,FXV,GXL,XL CONSOLE=BROWN |
1 | ||
| 86022-29065 |
TM20..DLX,FXV,GXL,XL CONSOLE=GRAY |
1 | ||
| 86022B - PLATE, CAUTION | ||||
| 74555-95700 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 86101A - CORD SUB-ASSY, ANTENNA, NO.1 | ||||
| 86101-95700 |
TM20..DLX,FXV,GXL,XL AM/FM |
1 | ||
| 86101-12090 |
TM20..DLX,FXV,GXL,XL FM |
1 | ||
| 86101A - CORD SUB-ASSY, ANTENNA, NO.1 | ||||
| 86101-95700 |
TM20..DLX,FXV,GXL,XL AM/FM |
1 | ||
| 86101-12090 |
TM20..DLX,FXV,GXL,XL FM |
1 | ||
| 86124 - KNOB, RADIO RECEIVER CONTROL | ||||
| 86124-14110 |
TM20..DLX,FXV,GXL,XL RH W/STEREO COMPONENT |
1 | ||
| 86124-12010 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
2 | ||
| 86124-14120 |
TM20..DLX,FXV,GXL,XL LH W/STEREO COMPONENT |
1 | ||
| 86124 - KNOB, RADIO RECEIVER CONTROL | ||||
| 86124-14110 |
TM20..DLX,FXV,GXL,XL RH W/STEREO COMPONENT |
1 | ||
| 86124-12010 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
2 | ||
| 86124-14120 |
TM20..DLX,FXV,GXL,XL LH W/STEREO COMPONENT |
1 | ||
| 86203D - WIRE, STEREO COMPONENT, NO.1 | ||||
| 86203-95703 |
TM20..DLX,FXV,GXL,XL FM |
1 | ||
| 86203-95702 |
TM20..DLX,FXV,GXL,XL AM/FM |
1 | ||
| 86203D - WIRE, STEREO COMPONENT, NO.1 | ||||
| 86203-95703 |
TM20..DLX,FXV,GXL,XL FM |
1 | ||
| 86203-95702 |
TM20..DLX,FXV,GXL,XL AM/FM |
1 | ||
| 86211A - BRACKET, STEREO COMPONENT, NO.1 | ||||
| 86211-95702 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 86216 - BRACKET, STEREO COMPONENT, NO.2 | ||||
| 86216-95700 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 86218 - BRACKET, STEREO COMPONENT, NO.3 | ||||
| 86218-95700 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 86265A - BRACKET, STEREO COMPONENT, NO.4 | ||||
| 86265-95700 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 86266A - BRACKET, STEREO COMPONENT, NO.5 | ||||
| 86266-95700 |
TM20..DLX,FXV,GXL,XL |
2 | ||
| 86266A - BRACKET, STEREO COMPONENT, NO.5 | ||||
| 86266-95700 |
TM20..DLX,FXV,GXL,XL |
2 | ||
| Common parts | ||||
| 90982-09002 | ||||
| 91651-40620 | ||||
| 93319-15008 | ||||
| 93560-54014 | ||||
| 94180-40600 | ||||
| 94180-40800 | ||||
| Linked diagrams | ||||
| 5855 | ||||

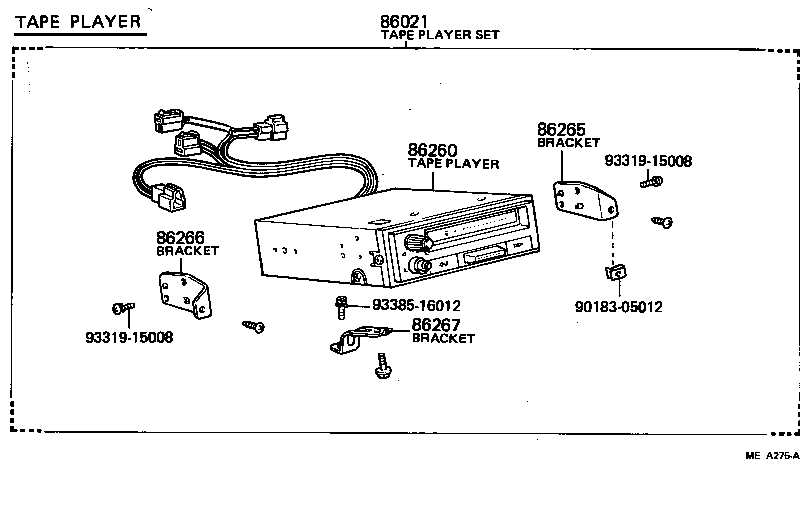

ILLUST NO. 2 OF 4(8101-8210)DLX,FXV,GXL,SUP,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86021 - TAPE PLAYER AND SETTING PARTS SET | ||||
| 86021-29135 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-95700 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
1 | ||
| 86265 - BRACKET, TAPE PLAYER, NO.1 | ||||
| 86237-95700 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
1 | ||
| 86266 - BRACKET, TAPE PLAYER, NO.2 | ||||
| 86238-95700 |
KM20,TM20 |
1 | ||
| 86267 - BRACKET, TAPE PLAYER, NO.3 | ||||
| 86239-95700 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
1 | ||
| Common parts | ||||
| 90183-05012 | ||||
| 93319-15008 | ||||
| 93385-16012 | ||||
