TM20G-MN (1981)

Toyota Lite/Townace Truck

Production Jan 1981 - Oct 1982
Engine 13TU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8101-8210)5F

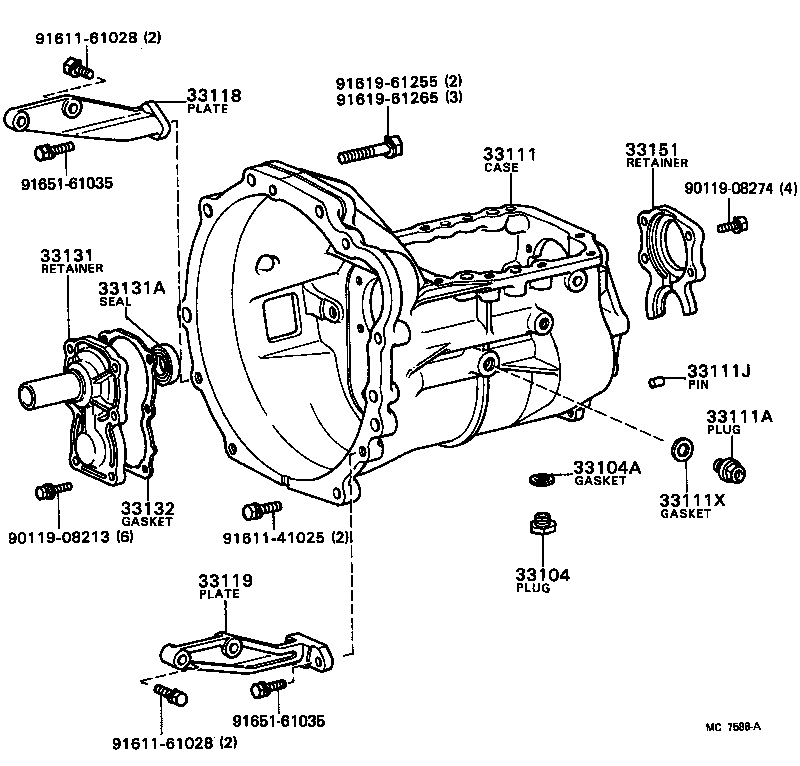

Click highlighted areas on diagram

diagram 33104 33104A 33111 33111A 33111J 33111X 33118 33119 33131 33131A 33132 33151 9011908213 9011908274 9161141025 9161161028 9161161028 9161961255 9161961265 9165161035 9165161035
Part # Description Qty Price
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

CM2#,KM2#,TM20,YM2#..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
12157-10010

KM20,TM20..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33111-28010

TM20..5F

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002

KM2#,TM20,YM25..MTM

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

TM20..5F

長さ=16,外径=12

 2
90250-12216

TM20..5F

長さ=14,外径=12

 2
33111X - GASKET, TRANSMISSION CASE PLUG
12157-10010

KM20,TM20..MTM

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-12020

TM20..MTM

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-12011

TM20..MTM

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-35021

TM20..5F

 1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-35021

TM20..5F

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-35011

TM20..5F

 1
Common parts
90119-08213
90119-08274
91611-41025
91611-61028
91619-61255
91619-61265
91651-61035
