TM20G-MN (1981)

Toyota Lite/Townace Truck

Production Jan 1981 - Oct 1982
Engine 13TU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8210)13TU

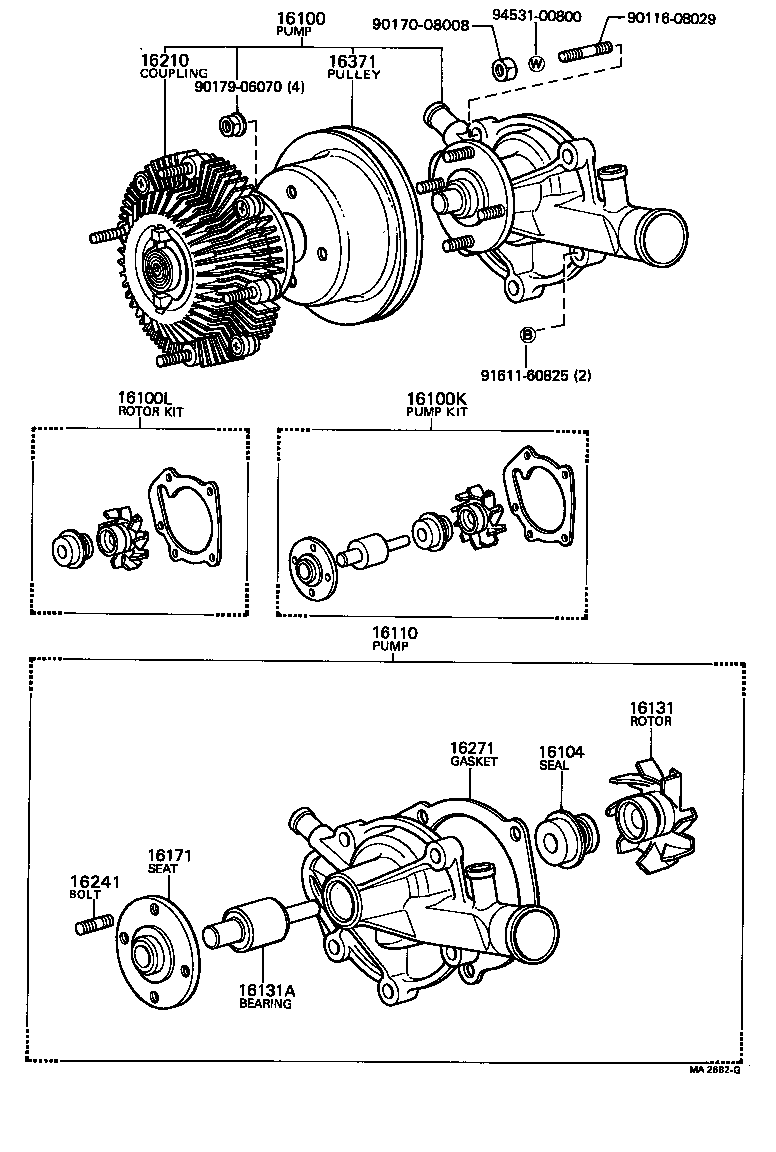

Click highlighted areas on diagram

diagram 16100 16100K 16100L 16104 16110 16131 16131A 16171 16210 16241 16271 16371 9011608029 9017008008 9017906070 9161160825 9453100800
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-18010

13TU..TM20

 1
16100K - PUMP KIT, WATER
04161-28012

13TU..TM20

 1
04161-28011

13TU..TM20

 1
16100L - ROTOR KIT, WATER PUMP
04162-28021

13TU..TM20

 1
04162-28020

13TU..TM20

 1
16104 - SEAL SET, WATER PUMP
16104-41111

13TU..TM20

 1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-28010

13TU..TM20

 1
16131 - ROTOR, WATER PUMP
16131-26010

13TU..TM20

 1
16131A - BEARING, WATER PUMP
16140-38011

13TU..TM20

WPB1610BBR

 1
16171 - SEAT, WATER PUMP PULLEY
16171-26021

13TU..TM20

 1
16210 - COUPLING ASSY, FLUID
16210-18010

13TU..TM20

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16241-28020

13TU..TM20

 4
16271 - GASKET, WATER PUMP
16129-25012

13TU..TM20

 1
16371 - PULLEY, FAN
16173-28010

13TU..TM20

 1
Common parts
90116-08029
90170-08008
90179-06070
91611-60825
94531-00800
