TM20G-KXZ (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 13TU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8001)

Click highlighted areas on diagram

diagram 52053 52105 52106 52111 52111 52112D 52112D 52113D 52113D 7554 9011208023 9011208028 9011908126 9017908123 9017908123 9017908123 9046810011 9165140814 9165140814 9166540825 9166540825 9411040800 9411040800 9411040800
Part # Description Qty Price
52053 - PAD SUB-ASSY, FRONT BUMPER
52421-95701

TM20..GXL,XL

 1
52421-95702

TM20..GXL,XL

 1
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52201-95701

TM20..GXL,XL

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52202-95701

TM20..GXL,XL

 1
52111 - BUMPER ASSY, FRONT
52111-29406

TM20..GXL,XL

 1
52111-29405

TM20..GXL,XL

 1
52111 - BUMPER ASSY, FRONT
52111-29406

TM20..GXL,XL

 1
52111-29405

TM20..GXL,XL

 1
52112D - EXTENSION, FRONT BUMPER, RH
52011-29015

KM20,TM20..DLX,GXL,STD,SUP,XL

 1
52112D - EXTENSION, FRONT BUMPER, RH
52011-29015

KM20,TM20..DLX,GXL,STD,SUP,XL

 1
52113D - EXTENSION, FRONT BUMPER, LH
52012-29015

KM20,TM20..DLX,GXL,STD,SUP,XL

 1
52113D - EXTENSION, FRONT BUMPER, LH
52012-29015

KM20,TM20..DLX,GXL,STD,SUP,XL

 1
Common parts
90112-08023
90112-08028
90119-08126
90179-08123
90468-10011
91651-40814
91665-40825
94110-40800
Linked diagrams
7554

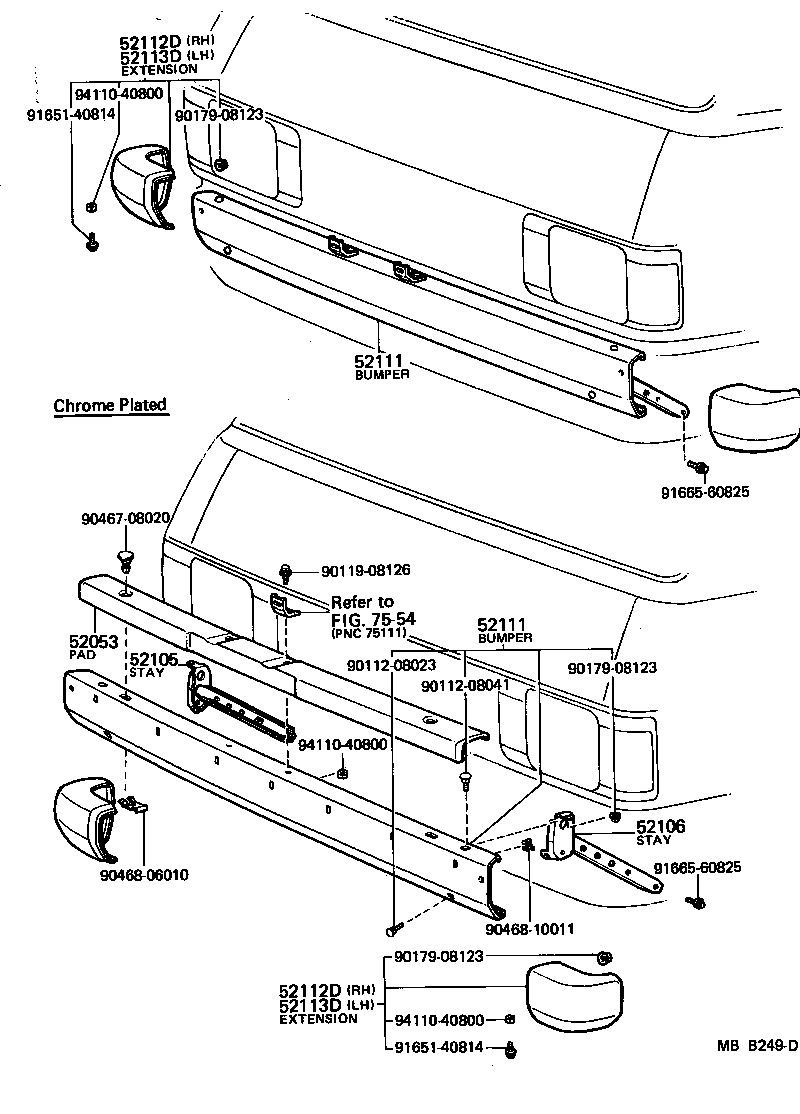

ILLUST NO. 1 OF 2(8001-8210)DLX,GXL,STD,SUP,XL

Click highlighted areas on diagram

diagram 52053 52105 52106 52111 52111 52112D 52112D 52113D 52113D 7554 9011208023 9011208041 9011908126 9017908123 9017908123 9017908123 9046708020 9046806010 9046810011 9165140814 9165140814 9166560825 9166560825 9411040800 9411040800 9411040800
Part # Description Qty Price
52053 - PAD SUB-ASSY, FRONT BUMPER
52421-95701

TM20..GXL,XL

 1
52421-95702

TM20..GXL,XL

 1
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52201-95701

TM20..GXL,XL

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52202-95701

TM20..GXL,XL

 1
52111 - BUMPER ASSY, FRONT
52111-29406

TM20..GXL,XL

 1
52111-29405

TM20..GXL,XL

 1
52111 - BUMPER ASSY, FRONT
52111-29406

TM20..GXL,XL

 1
52111-29405

TM20..GXL,XL

 1
52112D - EXTENSION, FRONT BUMPER, RH
52011-29015

KM20,TM20..DLX,GXL,STD,SUP,XL

 1
52112D - EXTENSION, FRONT BUMPER, RH
52011-29015

KM20,TM20..DLX,GXL,STD,SUP,XL

 1
52113D - EXTENSION, FRONT BUMPER, LH
52012-29015

KM20,TM20..DLX,GXL,STD,SUP,XL

 1
52113D - EXTENSION, FRONT BUMPER, LH
52012-29015

KM20,TM20..DLX,GXL,STD,SUP,XL

 1
Common parts
90112-08023
90112-08041
90119-08126
90179-08123
90467-08020
90468-06010
90468-10011
91651-40814
91665-60825
94110-40800
Linked diagrams
7554

ILLUST NO. 2 OF 2(8101-8210)FXV,GXL

Click highlighted areas on diagram

diagram 52021 52119A 52521 52521 52522 52522 52525 52525 52525B 52526B 52528 52528 52611 7554 9011906092 9011906126 9011906126 9011906126 9165640616 9165640616 9166560825
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52024-95700

TM20..FXV,GXL

 1
52119A - COVER, FRONT BUMPER
52119-95700

TM20..FXV,GXL

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52526-95A00

TM20..FXV,GXL

 2
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52526-95A00

TM20..FXV,GXL

 2
52522 - RETAINER, FRONT BUMPER UPPER SIDE
52525-95A00

TM20..FXV,GXL

 2
52522 - RETAINER, FRONT BUMPER UPPER SIDE
52525-95A00

TM20..FXV,GXL

 2
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52527-95A01

TM20..FXV,GXL

 2
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52527-95A01

TM20..FXV,GXL

 2
52525B - RETAINER, FRONT BUMPER, LOWER SIDE RH
52527-95A01

TM20..FXV,GXL

 1
52526B - RETAINER, FRONT BUMPER, LOWER SIDE LH
52527-95A01

TM20..FXV,GXL

 1
52528 - RETAINER, FRONT BUMPER, LOWER CORNER
52528-95700

TM20..FXV,GXL

 2
52528 - RETAINER, FRONT BUMPER, LOWER CORNER
52528-95700

TM20..FXV,GXL

 2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-95700

TM20..FXV,GXL

 1
Common parts
90119-06092
90119-06126
91656-40616
91665-60825
Linked diagrams
7554
