TM20G-KXZ (1979)
Toyota Lite/Townace Truck
Production
Oct 1979
-
Oct 1982
Engine
13TU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7910-8210)TM20..4F,4H

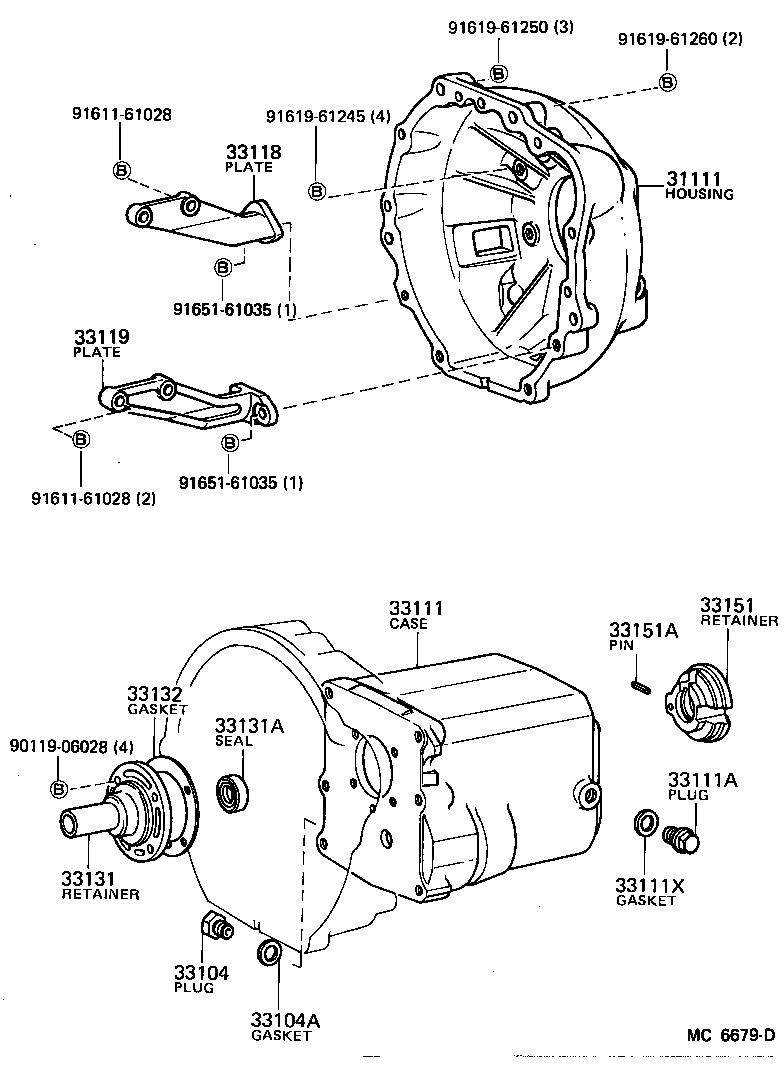

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-20060 |
TM20 |
1 | ||
| 31111-20190 |
TM20..4F,4H |
1 | ||
| 31111-20100 |
TM20 REDUCTION STARTER |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
CM2#,KM2#,TM20,YM2#..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 12157-10010 |
KM20,TM20..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-35031 |
KM2#,TM20,YM25..4F,4H |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18002 |
KM2#,TM20,YM25..MTM |
1 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 12157-10010 |
KM20,TM20..MTM |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-12020 |
TM20..MTM |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-12011 |
TM20..MTM |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-20050 |
KM2#,TM20,YM25..4F,4H |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32106 |
KM2#,TM20,YM25..4F,4H |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-30030 |
KM2#,TM20,YM25..4F,4H |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-26010 |
KM2#,TM20,YM25..4F,4H |
1 | ||
| 33151A - PIN, SLOTTED SPRING(FOR OUTPUT SHAFT REAR BEARING RETAI | ||||
| 90254-05005 |
KM2#,TM20,YM25..4F,4H |
1 | ||
| Common parts | ||||
| 90119-06028 | ||||
| 91611-61028 | ||||
| 91619-61245 | ||||
| 91619-61250 | ||||
| 91619-61260 | ||||
| 91651-61035 | ||||
