TM20G-KX (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 13TU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8210)TM20 ; (8210-8508)YM21..DLX,STD,SW ;(8210-8508)CM20,KM21,YM20..SUP,SW ;

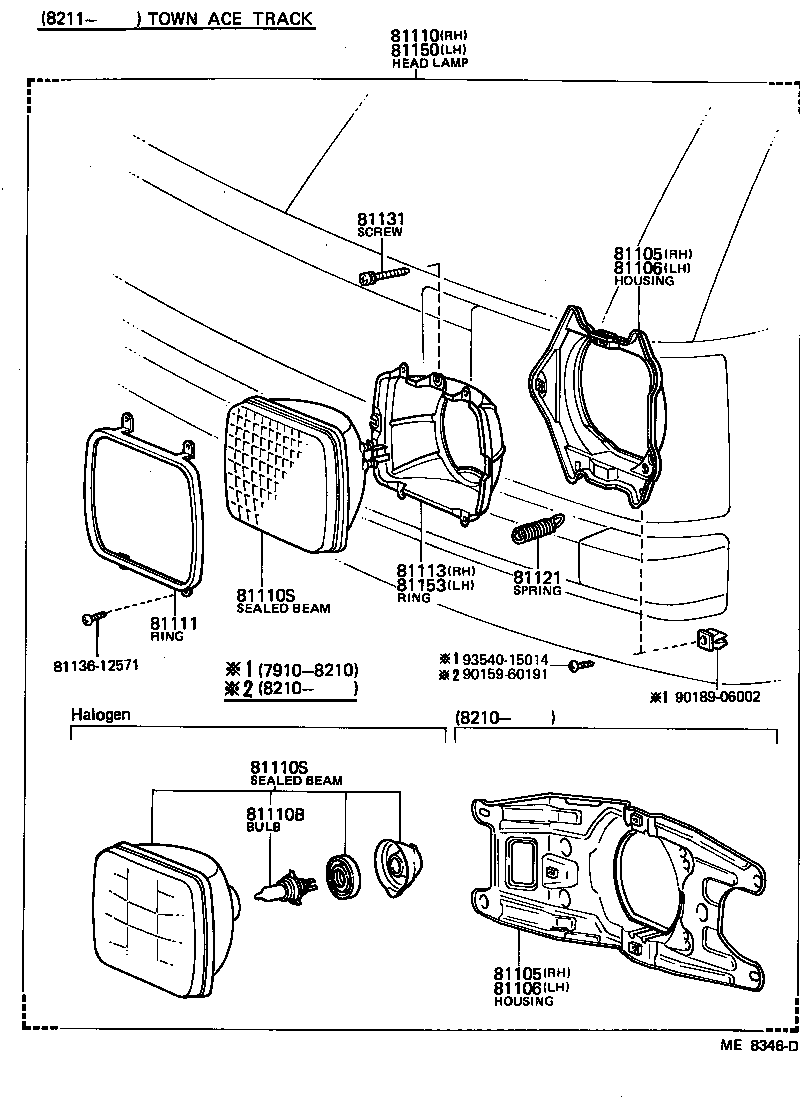

Click highlighted areas on diagram

diagram 81105 81105 81106 81106 81110 81110B 81110S 81110S 81111 81113 81121 81131 8113612571 81150 81153 9015960191 9018906002 9354015014
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-95705

TM20

 1
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-95705

TM20

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-95705

TM20

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-95705

TM20

 1
81110 - HEADLAMP ASSY, RH
81110-80052

TM20

 1
81110-80122

TM20..FXV,GXL

HALOGEN

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

TM20..FXV,GXL

12V 60/55W,*HAL *WH,12V 60/55W

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04001

TM20

12V 65/55W,*WB,12V 65/55W

 2
90981-04010

TM20..FXV,GXL

12V 60/55W,*HWS,12V 65/55W,HALOGEN

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04001

TM20

12V 65/55W,*WB,12V 65/55W

 2
90981-04010

TM20..FXV,GXL

12V 60/55W,*HWS,12V 65/55W,HALOGEN

 2
81111 - RING, SEALED BEAM RETAINING
81111-16020

TM20;CM20,YM21..WG..(DLX,STD,SW)

 2
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81153-16020

TM20

 1
81121 - SPRING, HEADLAMP TENSION
81121-16020

TM20;CM20,YM21..WG..(DLX,STD,SW)

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-10031

TM20;CM2#,KM2#,YM2#..DLX,STD,SUP,SW

 4
81150 - HEADLAMP ASSY, LH
81150-80049

TM20

 1
81150-80119

TM20..FXV,GXL

HALOGEN

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81113-16020

TM20

 1
Common parts
81136-12571
90159-60191
90189-06002
93540-15014
