TM20G-KX (1979)
Toyota Lite/Townace Truck
Production
Oct 1979
-
Oct 1982
Engine
13TU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7910-8210)V,WG

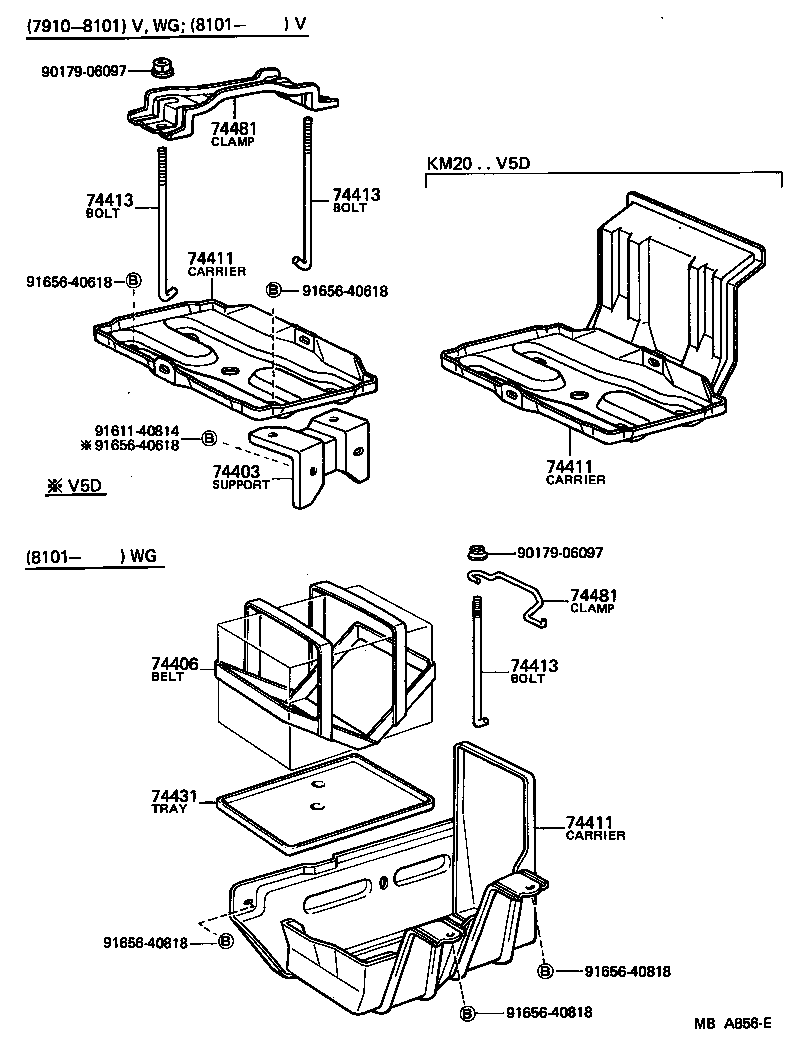

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74403 - SUPPORT SUB-ASSY, BATTERY CARRIER | ||||
| 74403-95701 |
TM20 |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74410-95704 |
TM20 |
1 | ||
| 74411-95702 |
TM20;KM20..V4D |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74410-95704 |
TM20 |
1 | ||
| 74411-95702 |
TM20;KM20..V4D |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74410-95704 |
TM20 |
1 | ||
| 74411-95702 |
TM20;KM20..V4D |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-95700 |
KM20,TM20..HRF,SRF |
2 | ||
| 74451-95701 |
TM20 |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-95700 |
KM20,TM20..HRF,SRF |
2 | ||
| 74451-95701 |
TM20 |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-95700 |
KM20,TM20..HRF,SRF |
2 | ||
| 74451-95701 |
TM20 |
1 | ||
| 74431 - TRAY, BATTERY | ||||
| 74431-14020 |
TM20 |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74406-95700 |
TM20 |
1 | ||
| 74481-95702 |
KM20,TM20..HRF,SRF |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74406-95700 |
TM20 |
1 | ||
| 74481-95702 |
KM20,TM20..HRF,SRF |
1 | ||
| Common parts | ||||
| 90179-06097 | ||||
| 91611-40814 | ||||
| 91651-40618 | ||||
| 91656-40618 | ||||
| 91656-40818 | ||||
