TM20G-KX (1979)
Toyota Lite/Townace Truck
Production
Oct 1979
-
Oct 1982
Engine
13TU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7910- )

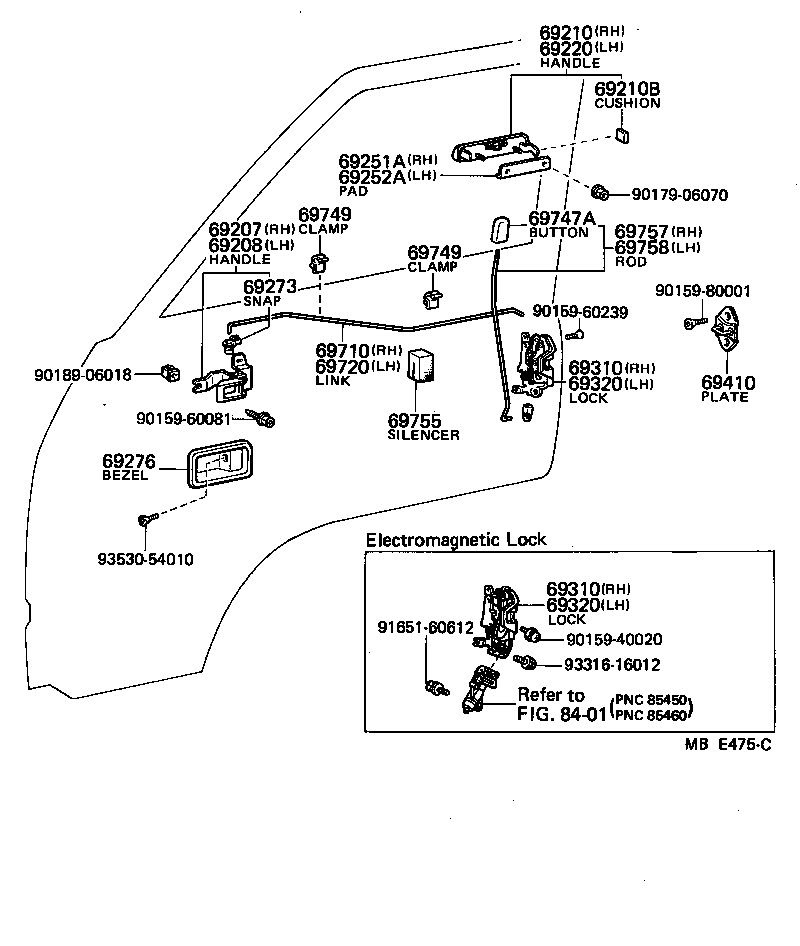

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-9570106 |
KM20,TM20 BROWN,BROWN |
1 | ||
| 69205-9570101 |
TM20..FXV,GXL,XL BLACK,BLACK |
1 | ||
| 69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-9570106 |
KM20,TM20 BROWN,BROWN |
1 | ||
| 69206-9570101 |
TM20..FXV,GXL,XL BLACK,BLACK |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-95011 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 69239-95700 |
KM20,TM20 |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-95011 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 69251A - PAD, FRONT DOOR OUTSIDE HANDLE, NO.1 RH | ||||
| 69241-95010 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 69252A - PAD, FRONT DOOR OUTSIDE HANDLE, NO.1 LH | ||||
| 69241-95010 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 69273 - SNAP, DOOR INSIDE HANDLE ROD | ||||
| 69279-12010 |
CM2#,KM2#,TM20,YM2# RH |
1 | ||
| 69279-16010 |
CM2#,KM2#,TM20,YM2# LH |
1 | ||
| 69276 - BEZEL, FRONT DOOR INSIDE HANDLE | ||||
| 69277-9570101 |
TM20..FXV,GXL,XL BLACK,BLACK |
2 | ||
| 69277-9570106 |
KM20,TM20 BROWN,BROWN |
2 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-95013 |
KM20,TM20 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-95013 |
KM20,TM20 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-95015 |
KM20,TM20 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-95015 |
KM20,TM20 |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-22020 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH | ||||
| 69715-95701 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH | ||||
| 69716-95701 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR) | ||||
| 69741-2002001 |
KM20,TM20 BLACK,BLACK |
2 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-12010 |
KM20,TM20 |
4 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-12010 |
KM20,TM20 |
4 | ||
| 69757 - ROD, FRONT DOOR LOCKING CONTROL, NO.2 RH | ||||
| 69705-95700 |
KM20,TM20 |
1 | ||
| 69758 - ROD, FRONT DOOR LOCKING CONTROL, NO.2 LH | ||||
| 69706-95700 |
KM20,TM20 |
1 | ||
| Common parts | ||||
| 90159-40020 | ||||
| 90159-60081 | ||||
| 90159-60239 | ||||
| 90159-80001 | ||||
| 90179-06070 | ||||
| 90189-06018 | ||||
| 91651-60612 | ||||
| 93316-16012 | ||||
| 93530-54010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
