TM20G-KX (1979)
Toyota Lite/Townace Truck

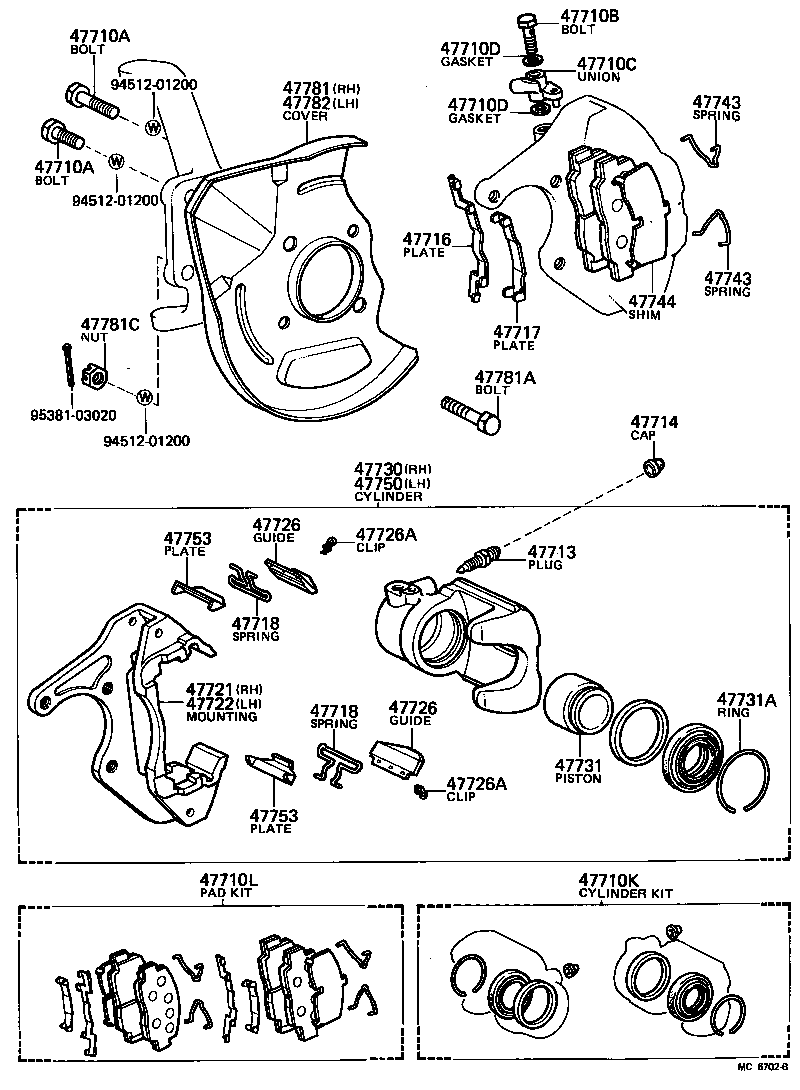

ILLUST NO. 1 OF 2(7910-8210)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12019 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST L=50 |
2 | ||
| 90101-12063 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST L=30 |
4 | ||
| 90101-12019 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU L=50 |
2 | ||
| 90101-12018 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST L=30 |
4 | ||
| 90101-12063 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU L=30 |
4 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12019 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST L=50 |
2 | ||
| 90101-12063 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST L=30 |
4 | ||
| 90101-12019 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU L=50 |
2 | ||
| 90101-12018 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST L=30 |
4 | ||
| 90101-12063 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU L=30 |
4 | ||
| 47710B - BOLT, UNION(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90401-10009 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
2 | ||
| 90401-10009 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
2 | ||
| 47710C - UNION(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90404-10014 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST RH |
1 | ||
| 90404-10015 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST LH |
1 | ||
| 90404-10015 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU LH |
1 | ||
| 90404-10014 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU RH |
1 | ||
| 47710D - GASKET(FOR FRONT DISC BRAKE CALIPER UNION) | ||||
| 90430-10074 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
4 | ||
| 90430-10074 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
4 | ||
| 47710D - GASKET(FOR FRONT DISC BRAKE CALIPER UNION) | ||||
| 90430-10074 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
4 | ||
| 90430-10074 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
4 | ||
| 47710K - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-14020 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
1 | ||
| 04479-14020 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
1 | ||
| 47710L - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-27021 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
1 | ||
| 04491-27020 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
1 | ||
| 04491-27021 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
1 | ||
| 47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12020 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
2 | ||
| 47547-12020 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
2 | ||
| 47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
2 | ||
| 31478-30010 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-27010 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
2 | ||
| 47716-27010 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-27010 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
2 | ||
| 47717-27010 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
2 | ||
| 47718 - SPRING, FRONT DISC BRAKE CYLINDER SUPPORT | ||||
| 47718-27010 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
4 | ||
| 47718-27010 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
4 | ||
| 47718 - SPRING, FRONT DISC BRAKE CYLINDER SUPPORT | ||||
| 47718-27010 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
4 | ||
| 47718-27010 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-27010 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
1 | ||
| 47721-27011 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-27011 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
1 | ||
| 47722-27010 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
1 | ||
| 47726 - GUIDE, FRONT DISC BRAKE CYLINDER | ||||
| 47726-27010 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
4 | ||
| 47726-27011 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
4 | ||
| 47726 - GUIDE, FRONT DISC BRAKE CYLINDER | ||||
| 47726-27010 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
4 | ||
| 47726-27011 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
4 | ||
| 47726A - CLIP(FOR FRONT DISC BRAKE CYLINDER) | ||||
| 90468-12134 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
8 | ||
| 90468-12134 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
8 | ||
| 47726A - CLIP(FOR FRONT DISC BRAKE CYLINDER) | ||||
| 90468-12134 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
8 | ||
| 90468-12134 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
8 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-27010 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
1 | ||
| 47730-27011 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-14020 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
2 | ||
| 47731-14020 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-62001 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
2 | ||
| 90522-62001 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
2 | ||
| 47743 - SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47743-27010 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
4 | ||
| 47743-27010 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
4 | ||
| 47743 - SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47743-27010 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
4 | ||
| 47743-27010 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
4 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-20030 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
2 | ||
| 47744-20030 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-27011 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
1 | ||
| 47750-27010 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
1 | ||
| 47753 - PLATE, CYLINDER GUIDE | ||||
| 47753-14020 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
4 | ||
| 47753-14020 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
4 | ||
| 47753 - PLATE, CYLINDER GUIDE | ||||
| 47753-14020 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
4 | ||
| 47753-14020 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-27021 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
1 | ||
| 47781-27020 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90102-12001 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
2 | ||
| 90102-12001 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
2 | ||
| 47781C - NUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 94145-71200 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
2 | ||
| 94145-71200 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
2 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-27020 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
1 | ||
| 47782-27021 |
TM20;KM20..STD..WT;KM20..(DLX,SUP)..CBU |
1 | ||
| Common parts | ||||
| 94512-01200 | ||||
| 95381-03020 | ||||
ILLUST NO. 2 OF 2(7910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-27100 |
TM20 |
1 | ||
| 04465-27100 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
1 | ||
| 04465-27100 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-20150 |
TM20 |
1 | ||
| 04945-20150 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
1 | ||
| 04945-20150 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-27020 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
1 | ||
| 04947-27020 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST |
1 | ||
| 04947-27020 |
TM20 |
1 | ||
