TM20G-KX (1979)
Toyota Lite/Townace Truck
Production
Oct 1979
-
Oct 1982
Engine
13TU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7910-8210)13TU

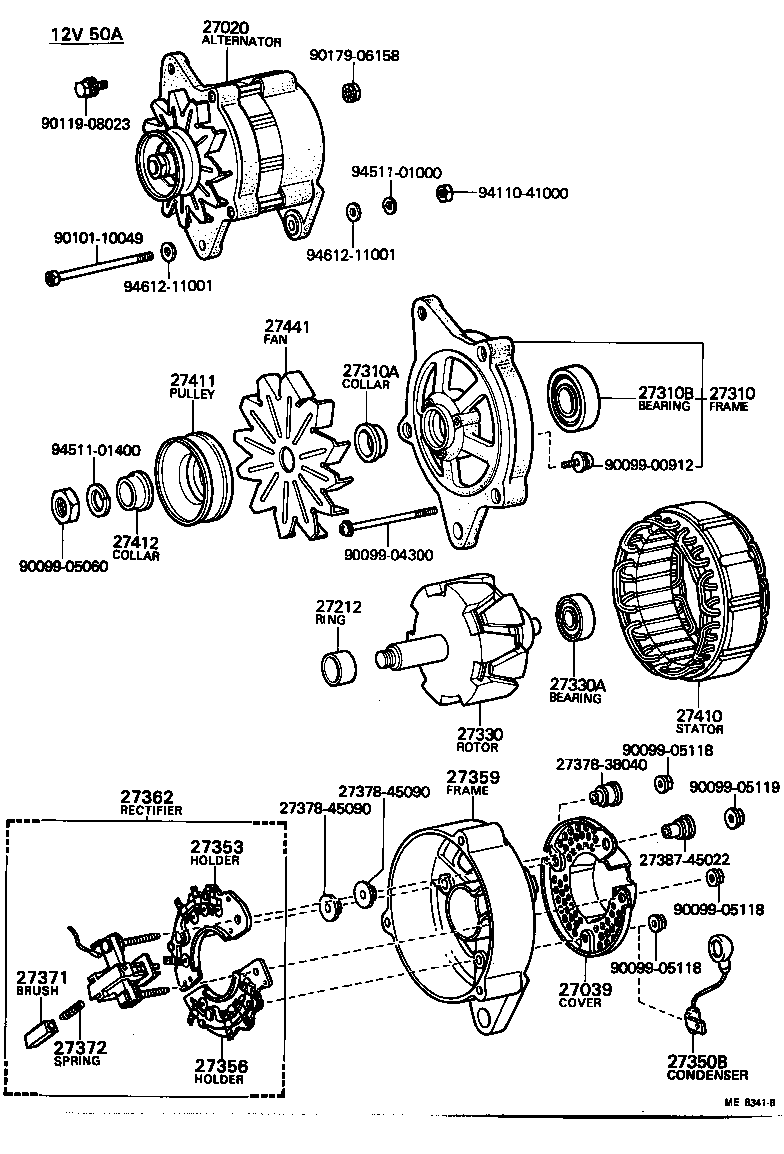

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-34051 |
13TU..TM20 12V 50A,12V 50A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-45110 |
13TU..TM20 12V 50A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
13TU,2YU..TM20,YM21 12V 50A,55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-34050 |
13TU..TM20 12V 50A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
13TU,4KJ,1YJ,2YU..KM2#,TM20,YM2# 12V 40A,50A,55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10115 |
13TU..TM20 12V 50A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-45070 |
13TU..TM20 12V 50A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
13TU,2YU..TM20,YM21 12V 50A,55A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-34051 |
13TU..TM20 12V 50A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-34051 |
13TU..TM20 12V 50A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-24100 |
13TU..TM20 12V 50A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-15021 |
13TU..TM20 12V 50A |
1 | ||
| 27362-34050 |
13TU..TM20 12V 50A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-44070 |
13TU..TM20 12V 50A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 90099-17114 |
13TU..TM20 12V 50A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-41080 |
13TU..TM20 12V 50A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-31042 |
13TU,4KJ..KM21,TM20 12V 40A,50A |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-44030 |
13TU,4KJ..KM2#,TM20 12V 40A,50A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
13TU,4KJ,1YJ..KM2#,TM20,YM20,25 12V 40A,50A |
1 | ||
| Common parts | ||||
| 27378-38040 | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90119-08023 | ||||
| 90179-06158 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94511-01400 | ||||
| 94612-11001 | ||||
