TM20G-KNZ (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 13TU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8210)TR ; (7910-8508)V,WG

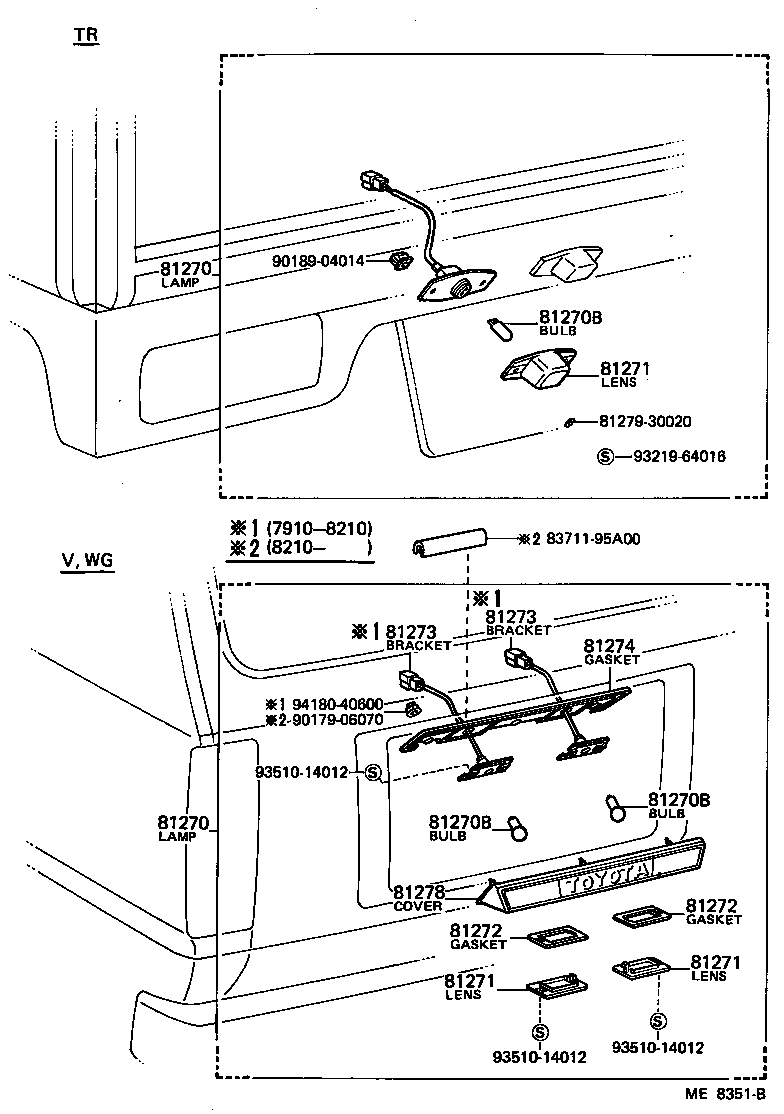

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81270B 81271 81271 81271 81272 81272 81273 81273 81274 81278 8127930020 8371195A00 9017906070 9018904014 9321964016 9351014012 9351014012 9351014012 9418040600
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-29445

TM20..FXV,GXL,XL

 1
81270 - LAMP ASSY, LICENSE PLATE
81270-29445

TM20..FXV,GXL,XL

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11075

KM20,TM20..V,WG

12V 7.5W,12V 7.5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11075

KM20,TM20..V,WG

12V 7.5W,12V 7.5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11075

KM20,TM20..V,WG

12V 7.5W,12V 7.5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-95700

CM20,KM2#,TM20,YM20,21..V,WG

 2
81271 - LENS, LICENSE PLATE LAMP
81271-95700

CM20,KM2#,TM20,YM20,21..V,WG

 2
81271 - LENS, LICENSE PLATE LAMP
81271-95700

CM20,KM2#,TM20,YM20,21..V,WG

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-95700

CM20,KM2#,TM20,YM20,21..V,WG

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-95700

CM20,KM2#,TM20,YM20,21..V,WG

 2
81273 - BRACKET, LICENSE PLATE LAMP
81273-95702

TM20..FXV,GXL,XL

 2
81273 - BRACKET, LICENSE PLATE LAMP
81273-95702

TM20..FXV,GXL,XL

 2
81274 - GASKET, LICENSE PLATE LAMP BODY
81274-95700

CM20,KM2#,TM20,YM20,21..V,WG

 1
81278 - COVER, LICENSE PLATE LAMP
81276-95702

TM20..FXV,GXL,XL

 1
Common parts
81279-30020
83711-95A00
90179-06070
90189-04014
93219-64016
93510-14012
94180-40600
