TM20G-KN (1979)
Toyota Lite/Townace Truck
ILLUST NO. 1 OF 4(7910-8210)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-95704 |
KM20,TM20 L=570 |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-95702 |
KM20,TM20 L=850,FR HEATER |
1 | ||
| 55907-95705 |
TM20..(4F,4H)..(DLX,XL) L=1650,RR HEATER |
1 | ||
| 55907-95704 |
TM20..FXV,GXL,XL L=1550,RR HEATER,W/*SS |
1 | ||
| 55907-95705 |
TM20..DLX,GXL,XL L=1650,RR HEATER |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95702 |
KM20,TM20 L= 890 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-95701 |
KM20,TM20 L=610 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95704 |
KM20,TM20 |
1 | ||
| 55910-95704 |
TM20..DLX,GXL,XL |
1 | ||
| 55931 - CLAMP, HEATER CONTROL WIRE | ||||
| 55933-14020 |
KM20,TM20 |
4 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-95702 |
KM20,TM20 FR HEATER |
4 | ||
| 55905-95703 |
TM20..DLX,FXV,GXL,XL RR HEATER |
1 | ||
| 55939 - ORNAMENT, HEATER CONTROL | ||||
| 55519-95700 |
TM20..DLX,GXL,XL FR HEATER |
1 | ||
| 55939-9570601 |
TM20..DLX,FXV,GXL,XL BLACK,RR HEATER,BLACK |
1 | ||
| 55519-95700 |
KM20,TM20 FR HEATER |
1 | ||
| 55939-9570606 |
TM20..DLX,FXV,GXL,XL BROWN,RR HEATER,BROWN |
1 | ||
| Common parts | ||||
| 90209-08002 | ||||
| 90463-06097 | ||||
| 90464-00238 | ||||
| 90480-15001 | ||||
| 93249-55014 | ||||
| 93566-14512 | ||||
| 93566-15514 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 4(7910-8210)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55956 - NOZZLE, SIDE DEFROSTER | ||||
| 87206-9570006 |
KM20,TM20 LH,BROWN,BROWN |
1 | ||
| 87206-9570006 |
KM20,TM20 LH,BROWN,BROWN |
1 | ||
| 87206-9570001 |
KM20,TM20 LH,BLACK,BLACK |
1 | ||
| 87205-9570006 |
KM20,TM20 RH,BROWN,BROWN |
1 | ||
| 87205-9570006 |
KM20,TM20 RH,BROWN,BROWN |
1 | ||
| 87205-9570001 |
KM20,TM20 RH,BLACK,BLACK |
1 | ||
| 55956 - NOZZLE, SIDE DEFROSTER | ||||
| 87206-9570006 |
KM20,TM20 LH,BROWN,BROWN |
1 | ||
| 87206-9570006 |
KM20,TM20 LH,BROWN,BROWN |
1 | ||
| 87206-9570001 |
KM20,TM20 LH,BLACK,BLACK |
1 | ||
| 87205-9570006 |
KM20,TM20 RH,BROWN,BROWN |
1 | ||
| 87205-9570006 |
KM20,TM20 RH,BROWN,BROWN |
1 | ||
| 87205-9570001 |
KM20,TM20 RH,BLACK,BLACK |
1 | ||
| 87210 - DAMPER ASSY, AIR | ||||
| 87210-95700 |
KM20,TM20 |
1 | ||
| 87210C - ADAPTER, HEATER AIR DAMPER | ||||
| 87203-95700 |
KM20,TM20..V,WG |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 88566-95704 |
TM20..DLX,FXV,GXL,XL W/COOLER |
1 | ||
| 87201-95700 |
KM20,TM20 |
1 | ||
| 88566-95700 |
KM20,TM20..DLX,GXL,SUP,XL W/COOLER |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 88566-95704 |
TM20..DLX,FXV,GXL,XL W/COOLER |
1 | ||
| 87201-95700 |
KM20,TM20 |
1 | ||
| 88566-95700 |
KM20,TM20..DLX,GXL,SUP,XL W/COOLER |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 88566-95702 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 88566-95701 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
1 | ||
| 87231 - HOSE, HEATER DEFROSTER, RH | ||||
| 87231-95401 |
KM20,TM20 |
1 | ||
| 87231A - DUCT, HEATER DEFROSTER, SIDE NO.1 RH | ||||
| 87202-95700 |
KM20,TM20 |
1 | ||
| 87232 - HOSE, HEATER DEFROSTER, LH | ||||
| 87231-95401 |
KM20,TM20 |
1 | ||
| 87232A - DUCT, HEATER DEFROSTER, SIDE NO.1 LH | ||||
| 87202-95700 |
KM20,TM20 |
1 | ||
| Common parts | ||||
| 88718-95700 | ||||
| 88896-95400 | ||||
| 90463-15439 | ||||
| 91651-40620 | ||||
| 93385-18020 | ||||
| 93540-55010 | ||||
| 93540-55012 | ||||
| 93560-15010 | ||||

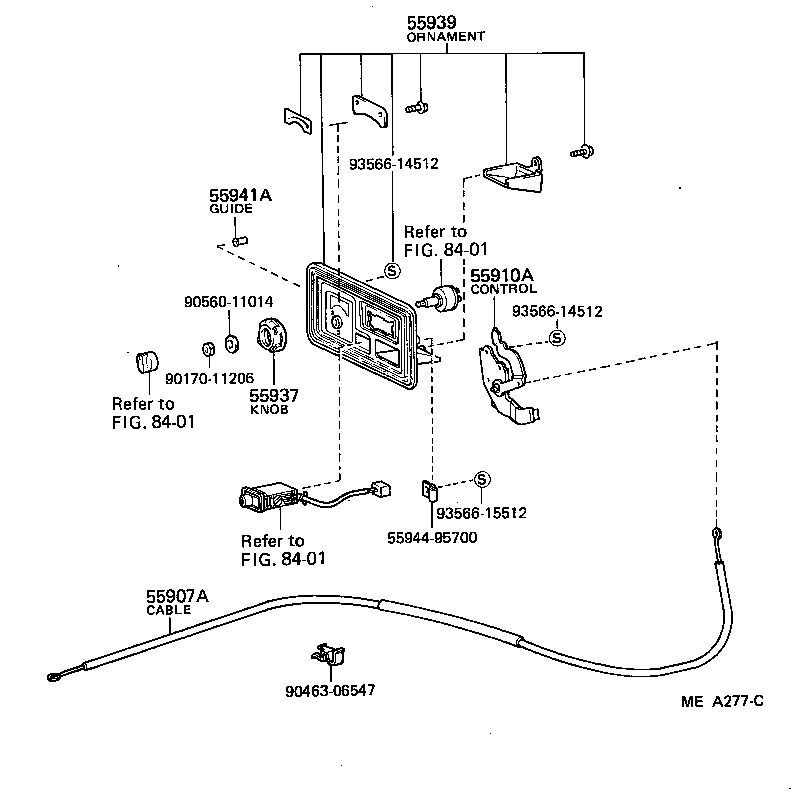

ILLUST NO. 2 OF 4(8101-8210)TM20..DLX,FXV,GXL,XL ; (8210-8508)YM20..V4D..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-95702 |
KM20,TM20 L=850,FR HEATER |
1 | ||
| 55907-95705 |
TM20..(4F,4H)..(DLX,XL) L=1650,RR HEATER |
1 | ||
| 55907-95704 |
TM20..FXV,GXL,XL L=1550,RR HEATER,W/*SS |
1 | ||
| 55907-95705 |
TM20..DLX,GXL,XL L=1650,RR HEATER |
1 | ||
| 55910A - CONTROL ASSY, REAR HEATER | ||||
| 55901-95704 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-95702 |
KM20,TM20 FR HEATER |
4 | ||
| 55905-95703 |
TM20..DLX,FXV,GXL,XL RR HEATER |
1 | ||
| 55939 - ORNAMENT, HEATER CONTROL | ||||
| 55519-95700 |
TM20..DLX,GXL,XL FR HEATER |
1 | ||
| 55939-9570601 |
TM20..DLX,FXV,GXL,XL BLACK,RR HEATER,BLACK |
1 | ||
| 55519-95700 |
KM20,TM20 FR HEATER |
1 | ||
| 55939-9570606 |
TM20..DLX,FXV,GXL,XL BROWN,RR HEATER,BROWN |
1 | ||
| 55941A - GUIDE, HEATER CONTROL | ||||
| 55941-95702 |
TM20..DLX,FXV,GXL,XL RR HEATER |
1 | ||
| Common parts | ||||
| 55944-95700 | ||||
| 90170-11206 | ||||
| 90463-06547 | ||||
| 90560-11014 | ||||
| 93566-14512 | ||||
| 93566-15512 | ||||
| Linked diagrams | ||||
| 8401 | ||||

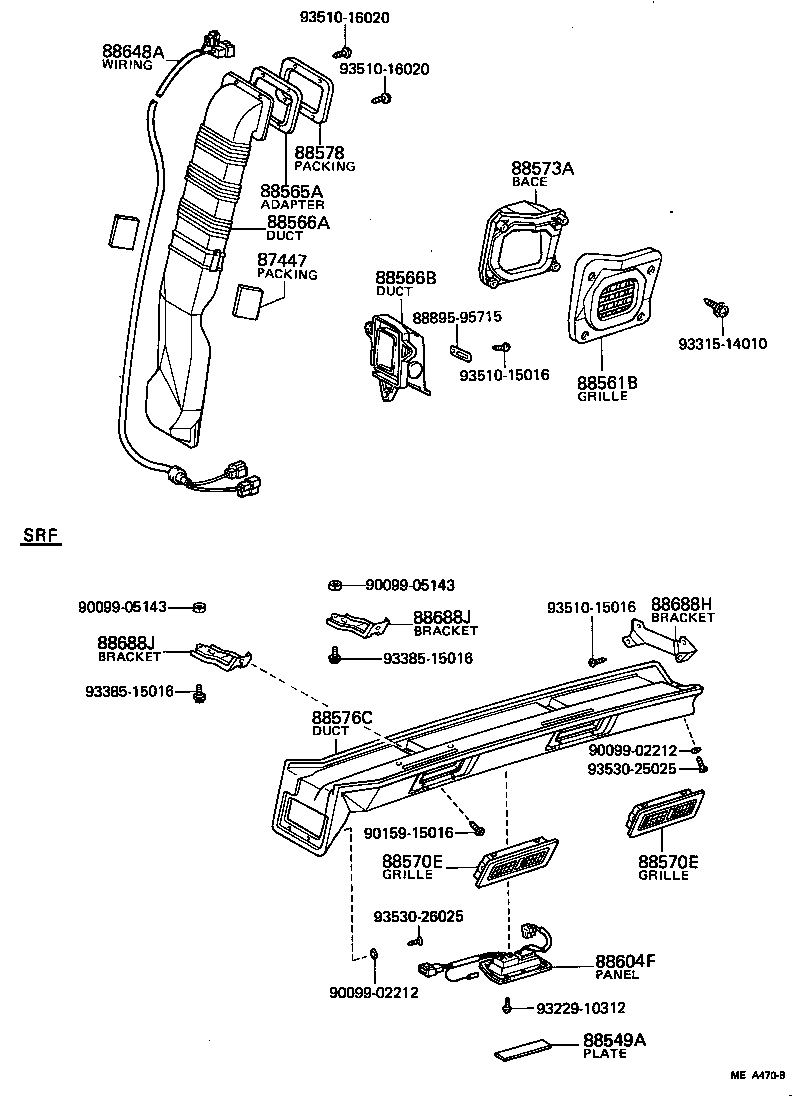

ILLUST NO. 4 OF 4(8101-8210)TM20..DLX,FXV,GXL,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87447 - PACKING, AIR DUCT | ||||
| 88895-95703 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88549A - PLATE, CAUTION | ||||
| 88549-95703 |
TM20..SRF..(DLX,FXV,GXL,XL) |
1 | ||
| 88549-95703 |
TM20..SRF..(DLX,GXL,XL) |
1 | ||
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88561-95700 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88565A - ADAPTER, AIR DUCT, NO.1 | ||||
| 88565-95700 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88566A - DUCT, COOLER AIR, NO.1 | ||||
| 88566-95705 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88566B - DUCT, COOLER AIR, NO.2 | ||||
| 88566-95706 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-95701 |
TM20..DLX,FXV,GXL,XL |
2 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-95701 |
TM20..DLX,FXV,GXL,XL |
2 | ||
| 88573A - BASE, GRILLE | ||||
| 88573-95700 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88576C - DUCT, COOLER AIR, NO.1 | ||||
| 88576-95702 |
TM20..SRF..(DLX,FXV,GXL,XL) |
1 | ||
| 88576-95702 |
TM20..SRF..(DLX,GXL,XL) |
1 | ||
| 88578 - PAKING, COOLER AIR DUCT | ||||
| 88578-95700 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88604F - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88604-95702 |
TM20..SRF..(DLX,FXV,GXL,XL) |
1 | ||
| 88604-95702 |
TM20..SRF..(DLX,GXL,XL) |
1 | ||
| 88648A - WIRING, COOLER | ||||
| 88648-95702 |
TM20..DLX,FXV,GXL,XL |
1 | ||
| 88688H - BRACKET, COOLER AIR DUCT, NO.1 | ||||
| 88688-95717 |
TM20..SRF..(DLX,FXV,GXL,XL) |
1 | ||
| 88688-95717 |
TM20..SRF..(DLX,GXL,XL) |
1 | ||
| 88688J - BRACKET, COOLER AIR DUCT, NO.2 | ||||
| 88688-95718 |
TM20..SRF..(DLX,FXV,GXL,XL) |
1 | ||
| 88688-95718 |
TM20..SRF..(DLX,GXL,XL) |
1 | ||
| 88688J - BRACKET, COOLER AIR DUCT, NO.2 | ||||
| 88688-95718 |
TM20..SRF..(DLX,FXV,GXL,XL) |
1 | ||
| 88688-95718 |
TM20..SRF..(DLX,GXL,XL) |
1 | ||
| Common parts | ||||
| 88895-95715 | ||||
| 90099-02212 | ||||
| 90099-05143 | ||||
| 90159-15016 | ||||
| 93229-10312 | ||||
| 93315-14010 | ||||
| 93385-15016 | ||||
| 93510-15016 | ||||
| 93510-16020 | ||||
| 93530-25025 | ||||
| 93530-26025 | ||||

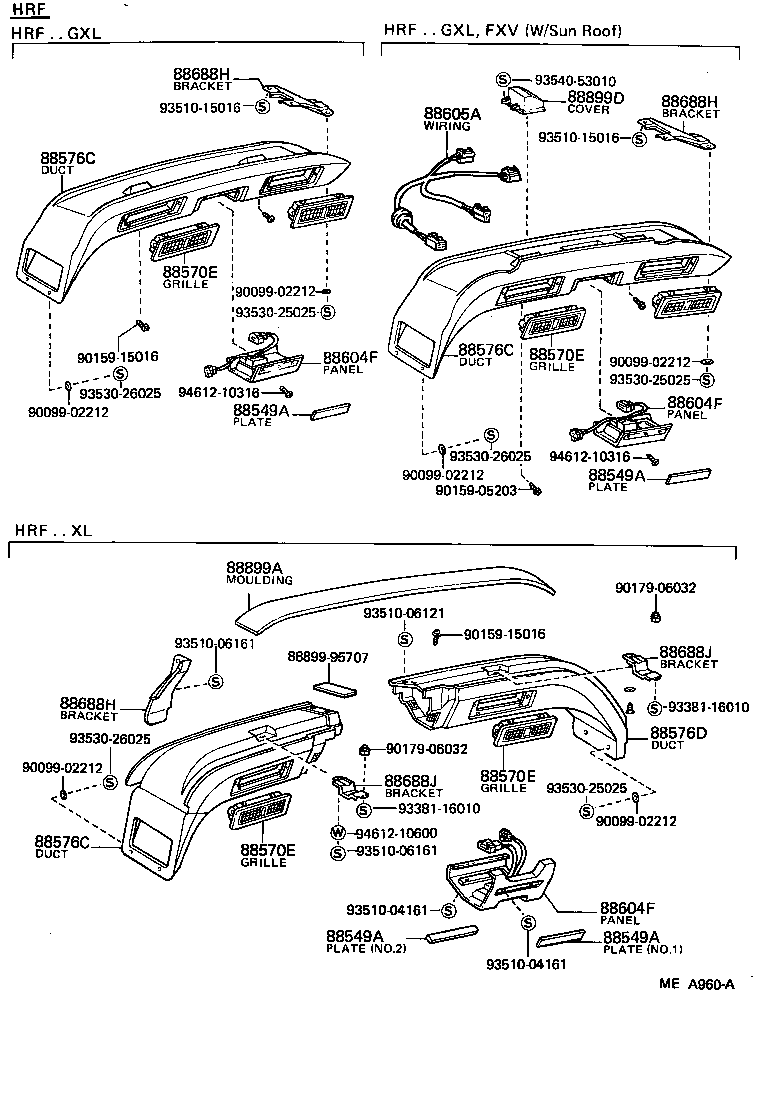

ILLUST NO. 4 OF 4(8101-8210)FXV,GXL,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88549A - PLATE, CAUTION | ||||
| 88549-95703 |
TM20..SRF..(DLX,FXV,GXL,XL) |
1 | ||
| 88549-95703 |
TM20..SRF..(DLX,GXL,XL) |
1 | ||
| 88549A - PLATE, CAUTION | ||||
| 88549-95703 |
TM20..SRF..(DLX,FXV,GXL,XL) |
1 | ||
| 88549-95703 |
TM20..SRF..(DLX,GXL,XL) |
1 | ||
| 88549A - PLATE, CAUTION | ||||
| 88549-95703 |
TM20..SRF..(DLX,FXV,GXL,XL) |
1 | ||
| 88549-95703 |
TM20..SRF..(DLX,GXL,XL) |
1 | ||
| 88549A - PLATE, CAUTION | ||||
| 88549-95703 |
TM20..SRF..(DLX,FXV,GXL,XL) |
1 | ||
| 88549-95703 |
TM20..SRF..(DLX,GXL,XL) |
1 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-95701 |
TM20..DLX,FXV,GXL,XL |
2 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-95701 |
TM20..DLX,FXV,GXL,XL |
2 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-95701 |
TM20..DLX,FXV,GXL,XL |
2 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-95701 |
TM20..DLX,FXV,GXL,XL |
2 | ||
| 88576C - DUCT, COOLER AIR, NO.1 | ||||
| 88576-95702 |
TM20..SRF..(DLX,FXV,GXL,XL) |
1 | ||
| 88576-95702 |
TM20..SRF..(DLX,GXL,XL) |
1 | ||
| 88576C - DUCT, COOLER AIR, NO.1 | ||||
| 88576-95702 |
TM20..SRF..(DLX,FXV,GXL,XL) |
1 | ||
| 88576-95702 |
TM20..SRF..(DLX,GXL,XL) |
1 | ||
| 88576C - DUCT, COOLER AIR, NO.1 | ||||
| 88576-95702 |
TM20..SRF..(DLX,FXV,GXL,XL) |
1 | ||
| 88576-95702 |
TM20..SRF..(DLX,GXL,XL) |
1 | ||
| 88604F - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88604-95702 |
TM20..SRF..(DLX,FXV,GXL,XL) |
1 | ||
| 88604-95702 |
TM20..SRF..(DLX,GXL,XL) |
1 | ||
| 88604F - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88604-95702 |
TM20..SRF..(DLX,FXV,GXL,XL) |
1 | ||
| 88604-95702 |
TM20..SRF..(DLX,GXL,XL) |
1 | ||
| 88604F - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88604-95702 |
TM20..SRF..(DLX,FXV,GXL,XL) |
1 | ||
| 88604-95702 |
TM20..SRF..(DLX,GXL,XL) |
1 | ||
| 88688H - BRACKET, COOLER AIR DUCT, NO.1 | ||||
| 88688-95717 |
TM20..SRF..(DLX,FXV,GXL,XL) |
1 | ||
| 88688-95717 |
TM20..SRF..(DLX,GXL,XL) |
1 | ||
| 88688H - BRACKET, COOLER AIR DUCT, NO.1 | ||||
| 88688-95717 |
TM20..SRF..(DLX,FXV,GXL,XL) |
1 | ||
| 88688-95717 |
TM20..SRF..(DLX,GXL,XL) |
1 | ||
| 88688H - BRACKET, COOLER AIR DUCT, NO.1 | ||||
| 88688-95717 |
TM20..SRF..(DLX,FXV,GXL,XL) |
1 | ||
| 88688-95717 |
TM20..SRF..(DLX,GXL,XL) |
1 | ||
| 88688J - BRACKET, COOLER AIR DUCT, NO.2 | ||||
| 88688-95718 |
TM20..SRF..(DLX,FXV,GXL,XL) |
1 | ||
| 88688-95718 |
TM20..SRF..(DLX,GXL,XL) |
1 | ||
| 88688J - BRACKET, COOLER AIR DUCT, NO.2 | ||||
| 88688-95718 |
TM20..SRF..(DLX,FXV,GXL,XL) |
1 | ||
| 88688-95718 |
TM20..SRF..(DLX,GXL,XL) |
1 | ||
| Common parts | ||||
| 88899-95707 | ||||
| 90099-02212 | ||||
| 90159-05203 | ||||
| 90159-15016 | ||||
| 90179-06032 | ||||
| 93381-16010 | ||||
| 93510-04161 | ||||
| 93510-06121 | ||||
| 93510-06161 | ||||
| 93510-15016 | ||||
| 93530-25025 | ||||
| 93530-26025 | ||||
| 93540-53010 | ||||
| 94612-10316 | ||||
| 94612-10600 | ||||
