TM20G-KN (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 13TU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8210)TM20

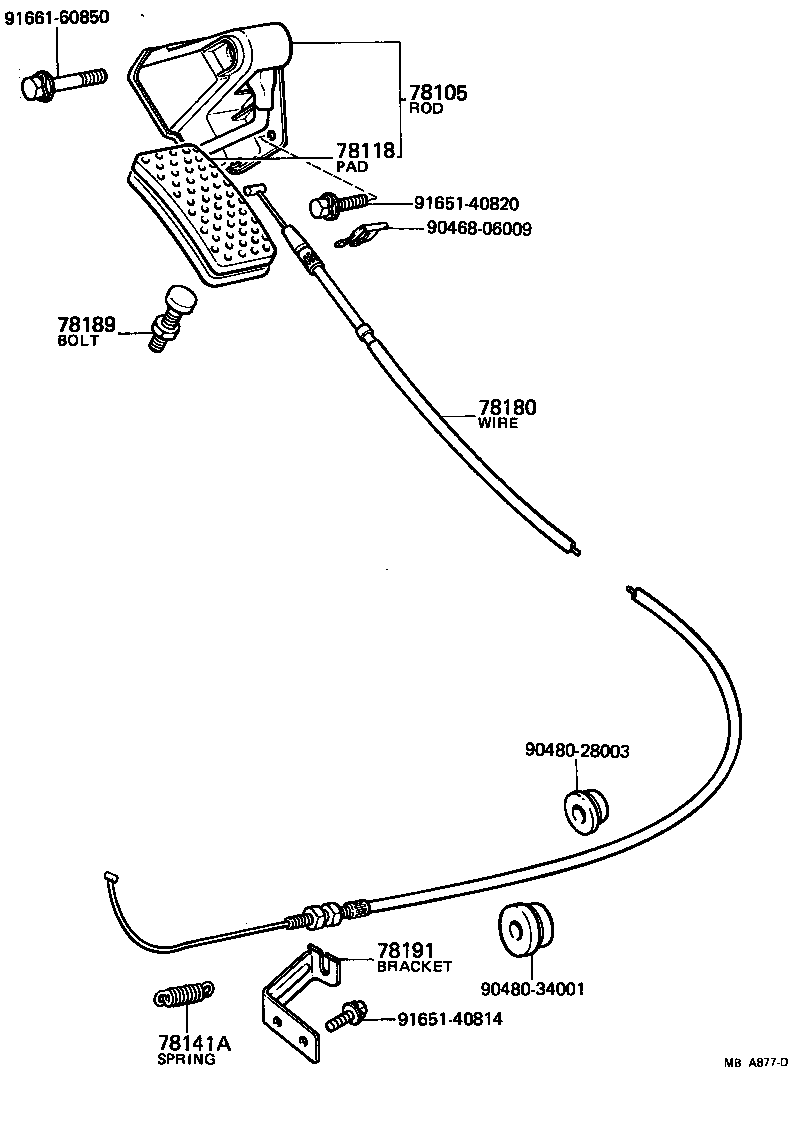

Click highlighted areas on diagram

diagram 78105 78118 78141A 78180 78189 78191 9046806009 9048028003 9048034001 9165140814 9165140820 9166160850
Part # Description Qty Price
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78105-95700

KM20,TM20

 1
78105-95702

TM20

 1
78118 - PAD, ACCELERATOR PEDAL
78119-95700

CM2#,KM2#,TM20,YM2#

 1
78141A - SPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)
90507-12001

TM20

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95711

TM20

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78107-95A00

CM20,KM2#,TM20,YM20,21..V,WG

 1
78191 - BRACKET, ACCELERATOR WIRE SUPPORT
78184-95701

TM20

 1
Common parts
90468-06009
90480-28003
90480-34001
91651-40814
91651-40820
91661-60850
