TM20G-KN (1979)
Toyota Lite/Townace Truck

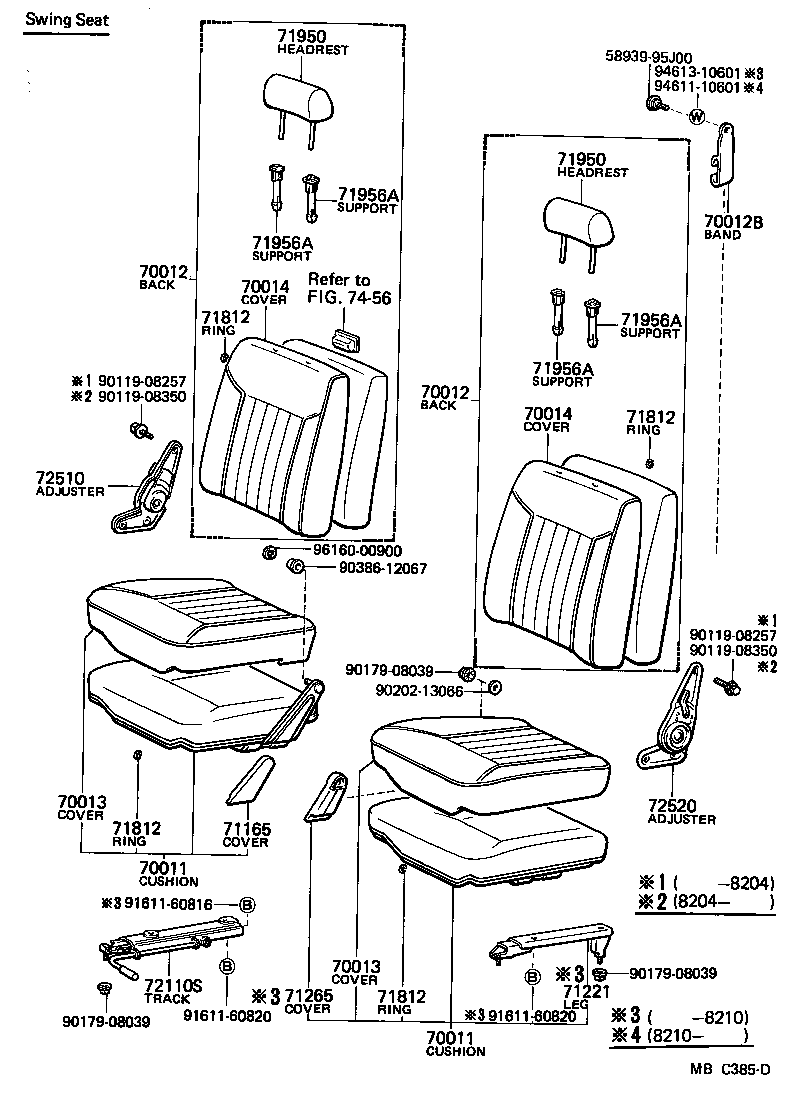

ILLUST NO. 1 OF 2(7910-8101)TM20 ; (8101-8201)08S ; (8201-8210)TM20..DLX,STD,XL ; (8210-8508)05S,08S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 71110-95705 |
TM20..XL RH,VL PRINT |
1 | ||
| 71210-95706 |
TM20..XL LH,VL PRINT |
1 | ||
| 71210-9571706 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71110-9571602 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71210-9571702 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71110-9571606 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 71110-95705 |
TM20..XL RH,VL PRINT |
1 | ||
| 71210-95706 |
TM20..XL LH,VL PRINT |
1 | ||
| 71210-9571706 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71110-9571602 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71210-9571702 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71110-9571606 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 71250-95710 |
TM20..XL LH,VL PRINT |
1 | ||
| 71150-95705 |
TM20..XL RH,VL PRINT |
1 | ||
| 71250-9572006 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71250-9572002 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71150-9571702 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71150-9571706 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 71250-95710 |
TM20..XL LH,VL PRINT |
1 | ||
| 71150-95705 |
TM20..XL RH,VL PRINT |
1 | ||
| 71250-9572006 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71250-9572002 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71150-9571702 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71150-9571706 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 70012B - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 58936-9570301 |
TM20..FXV,GXL,XL BLACK,BLACK |
1 | ||
| 58936-9570306 |
TM20 BROWN,BROWN |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71108-95706 |
TM20..XL RH,VL PRINT |
1 | ||
| 71208-95709 |
TM20..XL LH,VL PRINT |
1 | ||
| 71108-9571702 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71108-9571706 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71208-9572002 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71208-9572006 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71108-95706 |
TM20..XL RH,VL PRINT |
1 | ||
| 71208-95709 |
TM20..XL LH,VL PRINT |
1 | ||
| 71108-9571702 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71108-9571706 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71208-9572002 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71208-9572006 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71209-95706 |
TM20..XL LH,VL PRINT |
1 | ||
| 71109-95705 |
TM20..XL RH,VL PRINT |
1 | ||
| 71109-9571606 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71109-9571602 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71209-9571602 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71209-9571606 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71209-95706 |
TM20..XL LH,VL PRINT |
1 | ||
| 71109-95705 |
TM20..XL RH,VL PRINT |
1 | ||
| 71109-9571606 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71109-9571602 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71209-9571602 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71209-9571606 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71165 - COVER, FRONT RH SEAT HINGE | ||||
| 71165-9570006 |
KM20,TM20 BROWN,BROWN |
1 | ||
| 71165-9570001 |
KM20,TM20 BLACK,BLACK |
1 | ||
| 71221 - LEG, FRONT SEAT | ||||
| 71023-9570306 |
TM20 BROWN,BROWN |
1 | ||
| 71221-95702 |
TM20 |
1 | ||
| 71023-9570301 |
TM20..FXV,GXL,XL BLACK,BLACK |
1 | ||
| 71265 - COVER, FRONT LH SEAT HINGE | ||||
| 71265-9570101 |
TM20 BLACK,BLACK |
1 | ||
| 71265-9570106 |
TM20 BROWN,BROWN |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72710-95701 |
TM20 |
1 | ||
| 72710-9570206 |
TM20 BROWN,BROWN |
1 | ||
| 72710-9570201 |
TM20..FXV,GXL,XL BLACK,BLACK |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-9570206 |
TM20 BROWN,BROWN |
1 | ||
| 72510-95700 |
TM20 |
1 | ||
| 72510-9570201 |
TM20..FXV,GXL,XL BLACK,BLACK |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-9570006 |
TM20..DLX,FXV,GXL,XL BROWN,BROWN |
1 | ||
| 72520-9570001 |
TM20..FXV,GXL,XL BLACK,BLACK |
1 | ||
| Common parts | ||||
| 58487-95700 | ||||
| 58939-95J00 | ||||
| 90119-08257 | ||||
| 90119-08350 | ||||
| 90179-08039 | ||||
| 90202-13066 | ||||
| 90386-12067 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 94511-00600 | ||||
| 94611-10601 | ||||
| 94613-10601 | ||||
| 96160-00900 | ||||

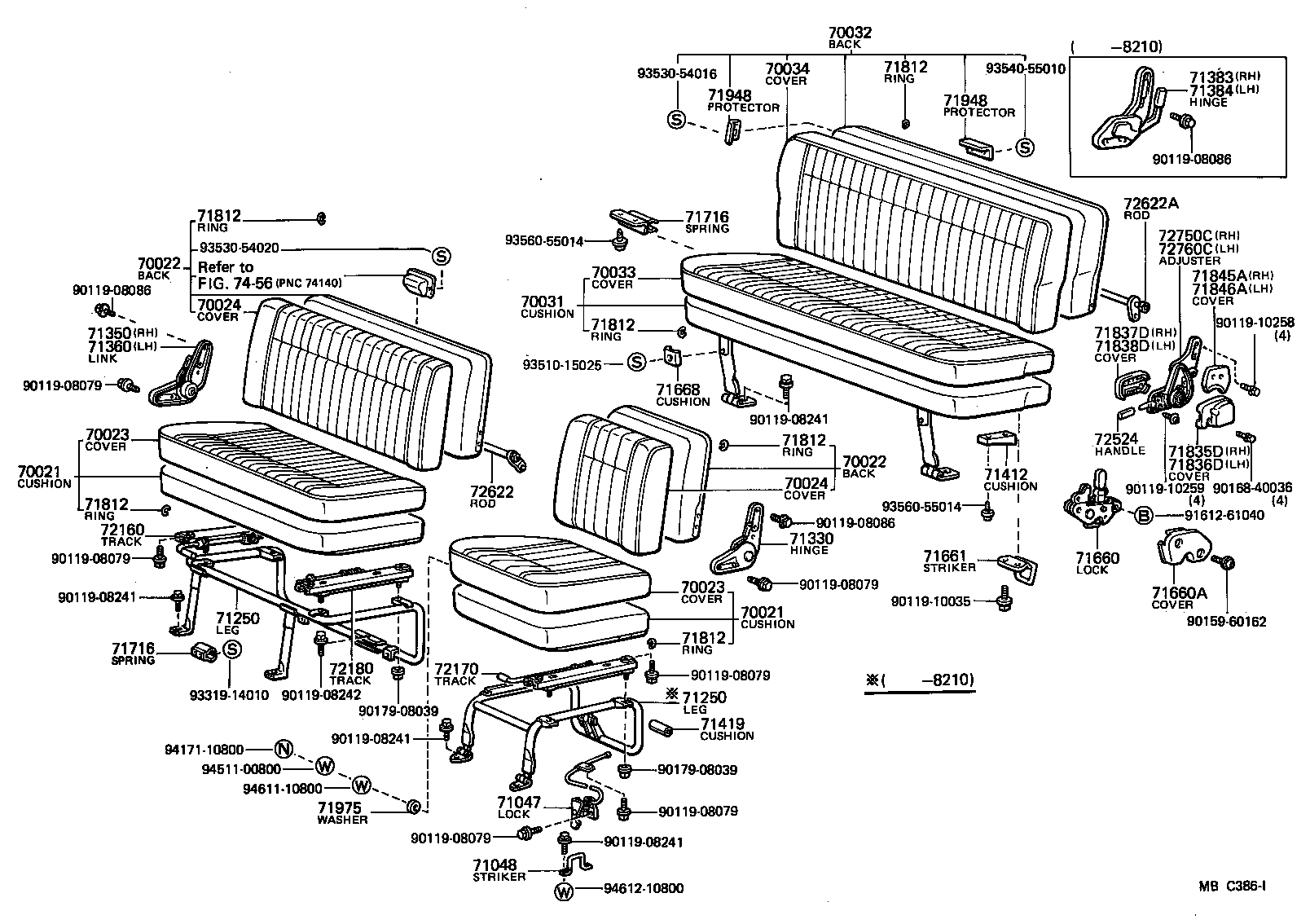

ILLUST NO. 2 OF 2(7910-8101)TM20 ; (8101-8210)TM20..4H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70021 - CUSHION ASSY, NO.2 SEAT | ||||
| 71510-95707 |
TM20..XL RH,VL PRINT |
1 | ||
| 71410-9573006 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71410-9573002 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71410-95718 |
TM20..XL LH,VL PRINT |
1 | ||
| 71510-9571202 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71510-9571206 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71410-9574802 |
TM20..XL LH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71410-9574806 |
TM20..XL LH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71410-9573006 |
TM20..4F..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71510-9572806 |
TM20..XL RH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71510-9571202 |
TM20..4F..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71510-9572802 |
TM20..XL RH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71510-9571206 |
TM20..4F..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71410-9573002 |
TM20..4F..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71810-9570006 |
TM20..XL SUB SEAT,FB,DARK BROWN,BROWN |
1 | ||
| 71810-9570002 |
TM20..XL SUB SEAT,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 70021 - CUSHION ASSY, NO.2 SEAT | ||||
| 71510-95707 |
TM20..XL RH,VL PRINT |
1 | ||
| 71410-9573006 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71410-9573002 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71410-95718 |
TM20..XL LH,VL PRINT |
1 | ||
| 71510-9571202 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71510-9571206 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71410-9574802 |
TM20..XL LH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71410-9574806 |
TM20..XL LH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71410-9573006 |
TM20..4F..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71510-9572806 |
TM20..XL RH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71510-9571202 |
TM20..4F..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71510-9572802 |
TM20..XL RH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71510-9571206 |
TM20..4F..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71410-9573002 |
TM20..4F..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71810-9570006 |
TM20..XL SUB SEAT,FB,DARK BROWN,BROWN |
1 | ||
| 71810-9570002 |
TM20..XL SUB SEAT,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 70022 - BACK ASSY, NO.2 SEAT | ||||
| 71450-95704 |
TM20..XL LH,VL PRINT |
1 | ||
| 71450-9571302 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71550-9571002 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71450-9571306 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71550-95704 |
TM20..XL RH,VL PRINT |
1 | ||
| 71550-9571006 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71450-9571302 |
TM20..4F..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71450-9571306 |
TM20..4F..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71450-9573102 |
TM20..XL LH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71450-9573106 |
TM20..XL LH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71550-9572606 |
TM20..XL RH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71550-9571002 |
TM20..4F..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71550-9571006 |
TM20..4F..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71550-9572602 |
TM20..XL RH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71850-9570202 |
TM20..XL SUB SEAT,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71850-9570206 |
TM20..XL SUB SEAT,FB,DARK BROWN,BROWN |
1 | ||
| 70022 - BACK ASSY, NO.2 SEAT | ||||
| 71450-95704 |
TM20..XL LH,VL PRINT |
1 | ||
| 71450-9571302 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71550-9571002 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71450-9571306 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71550-95704 |
TM20..XL RH,VL PRINT |
1 | ||
| 71550-9571006 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71450-9571302 |
TM20..4F..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71450-9571306 |
TM20..4F..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71450-9573102 |
TM20..XL LH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71450-9573106 |
TM20..XL LH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71550-9572606 |
TM20..XL RH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71550-9571002 |
TM20..4F..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71550-9571006 |
TM20..4F..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71550-9572602 |
TM20..XL RH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71850-9570202 |
TM20..XL SUB SEAT,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71850-9570206 |
TM20..XL SUB SEAT,FB,DARK BROWN,BROWN |
1 | ||
| 70023 - COVER ASSY, NO.2 SEAT CUSHION | ||||
| 71508-95703 |
TM20..XL RH,VL PRINT |
1 | ||
| 71408-95704 |
TM20..XL LH,VL PRINT |
1 | ||
| 71408-9571306 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71408-9571302 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71508-9570806 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71508-9570802 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71408-9571302 |
TM20..4F..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71408-9573102 |
TM20..XL LH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71408-9571306 |
TM20..4F..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71508-9572402 |
TM20..XL RH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71508-9570806 |
TM20..4F..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71508-9572406 |
TM20..XL RH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71408-9573106 |
TM20..XL LH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71508-9570802 |
TM20..4F..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71808-9570002 |
TM20..XL SUB SEAT,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71808-9570006 |
TM20..XL SUB SEAT,FB,DARK BROWN,BROWN |
1 | ||
| 70023 - COVER ASSY, NO.2 SEAT CUSHION | ||||
| 71508-95703 |
TM20..XL RH,VL PRINT |
1 | ||
| 71408-95704 |
TM20..XL LH,VL PRINT |
1 | ||
| 71408-9571306 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71408-9571302 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71508-9570806 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71508-9570802 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71408-9571302 |
TM20..4F..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71408-9573102 |
TM20..XL LH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71408-9571306 |
TM20..4F..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71508-9572402 |
TM20..XL RH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71508-9570806 |
TM20..4F..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71508-9572406 |
TM20..XL RH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71408-9573106 |
TM20..XL LH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71508-9570802 |
TM20..4F..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71808-9570002 |
TM20..XL SUB SEAT,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71808-9570006 |
TM20..XL SUB SEAT,FB,DARK BROWN,BROWN |
1 | ||
| 70024 - COVER ASSY, NO.2 SEAT BACK | ||||
| 71409-95703 |
TM20..XL LH,VL PRINT |
1 | ||
| 71509-95703 |
TM20..XL RH,VL PRINT |
1 | ||
| 71409-9571202 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71409-9571206 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71509-9570806 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71509-9570802 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71409-9573006 |
TM20..XL LH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71409-9573002 |
TM20..XL LH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71409-9571206 |
TM20..4F..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71409-9571202 |
TM20..4F..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71509-9570806 |
TM20..4F..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71809-9570006 |
TM20..XL SUB SEAT,FB,DARK BROWN,BROWN |
1 | ||
| 71509-9570802 |
TM20..4F..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71509-9572406 |
TM20..XL RH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71809-9570002 |
TM20..XL SUB SEAT,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71509-9572402 |
TM20..XL RH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 70024 - COVER ASSY, NO.2 SEAT BACK | ||||
| 71409-95703 |
TM20..XL LH,VL PRINT |
1 | ||
| 71509-95703 |
TM20..XL RH,VL PRINT |
1 | ||
| 71409-9571202 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71409-9571206 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71509-9570806 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71509-9570802 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71409-9573006 |
TM20..XL LH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71409-9573002 |
TM20..XL LH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71409-9571206 |
TM20..4F..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71409-9571202 |
TM20..4F..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71509-9570806 |
TM20..4F..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71809-9570006 |
TM20..XL SUB SEAT,FB,DARK BROWN,BROWN |
1 | ||
| 71509-9570802 |
TM20..4F..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71509-9572406 |
TM20..XL RH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71809-9570002 |
TM20..XL SUB SEAT,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71509-9572402 |
TM20..XL RH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 70031 - CUSHION ASSY, NO.3 SEAT | ||||
| 71610-95703 |
TM20..XL VL PRINT |
1 | ||
| 71610-9570802 |
TM20..XL FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71610-9570806 |
TM20..XL FB,DARK BROWN,BROWN |
1 | ||
| 70032 - BACK ASSY, NO.3 SEAT | ||||
| 71650-9570806 |
TM20..XL FB,DARK BROWN,BROWN |
1 | ||
| 71650-95703 |
TM20..XL VL PRINT |
1 | ||
| 71650-9570802 |
TM20..XL FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71650-9572602 |
TM20..XL FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71650-9572606 |
TM20..XL FB,DARK BROWN,BROWN |
1 | ||
| 70033 - COVER ASSY, NO.3 SEAT CUSHION | ||||
| 71608-95703 |
TM20..XL VL PRINT |
1 | ||
| 71608-9570802 |
TM20..XL FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71608-9570806 |
TM20..XL FB,DARK BROWN,BROWN |
1 | ||
| 70034 - COVER ASSY, NO.3 SEAT BACK | ||||
| 71609-95703 |
TM20..XL VL PRINT |
1 | ||
| 71609-9570802 |
TM20..XL FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71609-9570806 |
TM20..XL FB,DARK BROWN,BROWN |
1 | ||
| 71609-9572102 |
TM20..XL FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71609-9572106 |
TM20..XL FB,DARK BROWN,BROWN |
1 | ||
| 71047 - LOCK SUB-ASSY, REAR SEAT LEG | ||||
| 71460-95714 |
TM20 |
1 | ||
| 72630-95701 |
TM20..GXL,XL |
1 | ||
| 72630-95701 |
TM20..4F..XL |
1 | ||
| 71048 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 71464-95700 |
TM20..08S |
1 | ||
| 71464-95700 |
TM20..(4F,4H)..(DLX,STD,XL) |
1 | ||
| 71330 - HINGE ASSY, REAR SEAT CUSHION | ||||
| 72540-95700 |
TM20..GXL,XL |
1 | ||
| 72540-9570106 |
TM20..GXL,XL BROWN,BROWN |
1 | ||
| 72540-9570101 |
TM20..GXL,XL BLACK,BLACK |
1 | ||
| 72540-9570101 |
TM20..4F..XL BLACK,BLACK |
1 | ||
| 72540-9570106 |
TM20..4F..XL BROWN,BROWN |
1 | ||
| 71330 - HINGE ASSY, REAR SEAT CUSHION | ||||
| 72540-95700 |
TM20..GXL,XL |
1 | ||
| 72540-9570106 |
TM20..GXL,XL BROWN,BROWN |
1 | ||
| 72540-9570101 |
TM20..GXL,XL BLACK,BLACK |
1 | ||
| 72540-9570101 |
TM20..4F..XL BLACK,BLACK |
1 | ||
| 72540-9570106 |
TM20..4F..XL BROWN,BROWN |
1 | ||
| 71350 - LINK ASSY, REAR SEAT BACK CUSHION, RH | ||||
| 72570-9570001 |
TM20..GXL,XL BLACK,BLACK |
1 | ||
| 72570-9570006 |
TM20..GXL,XL BROWN,BROWN |
1 | ||
| 72570-9570006 |
TM20..4F..XL BROWN,BROWN |
1 | ||
| 72570-9570001 |
TM20..4F..XL BLACK,BLACK |
1 | ||
| 72570-9570106 |
TM20..FXV,GXL,XL *SS,BROWN,BROWN |
1 | ||
| 72570-9570101 |
TM20..FXV,GXL,XL *SS,BLACK,BLACK |
1 | ||
| 71350 - LINK ASSY, REAR SEAT BACK CUSHION, RH | ||||
| 72570-9570001 |
TM20..GXL,XL BLACK,BLACK |
1 | ||
| 72570-9570006 |
TM20..GXL,XL BROWN,BROWN |
1 | ||
| 72570-9570006 |
TM20..4F..XL BROWN,BROWN |
1 | ||
| 72570-9570001 |
TM20..4F..XL BLACK,BLACK |
1 | ||
| 72570-9570106 |
TM20..FXV,GXL,XL *SS,BROWN,BROWN |
1 | ||
| 72570-9570101 |
TM20..FXV,GXL,XL *SS,BLACK,BLACK |
1 | ||
| 71360 - LINK ASSY, REAR SEAT BACK CUSHION, LH | ||||
| 72530-9570001 |
TM20..GXL,XL BLACK,BLACK |
1 | ||
| 72530-9570006 |
TM20..GXL,XL BROWN,BROWN |
1 | ||
| 72530-9570001 |
TM20..4F..XL BLACK,BLACK |
1 | ||
| 72540-9570206 |
TM20..FXV,GXL,XL *SS,BROWN,BROWN |
1 | ||
| 72530-9570006 |
TM20..4F..XL BROWN,BROWN |
1 | ||
| 72540-9570201 |
TM20..FXV,GXL,XL *SS,BLACK,BLACK |
1 | ||
| 71360 - LINK ASSY, REAR SEAT BACK CUSHION, LH | ||||
| 72530-9570001 |
TM20..GXL,XL BLACK,BLACK |
1 | ||
| 72530-9570006 |
TM20..GXL,XL BROWN,BROWN |
1 | ||
| 72530-9570001 |
TM20..4F..XL BLACK,BLACK |
1 | ||
| 72540-9570206 |
TM20..FXV,GXL,XL *SS,BROWN,BROWN |
1 | ||
| 72530-9570006 |
TM20..4F..XL BROWN,BROWN |
1 | ||
| 72540-9570201 |
TM20..FXV,GXL,XL *SS,BLACK,BLACK |
1 | ||
| 71383 - HINGE, REAR SEAT BACK STOP, NO.3 | ||||
| 71680-9570101 |
TM20..FXV,GXL,XL BLACK,BLACK |
1 | ||
| 71680-95700 |
TM20 |
1 | ||
| 71680-9570106 |
TM20 BROWN,BROWN |
1 | ||
| 71384 - HINGE, REAR SEAT BACK STOP, NO.4 | ||||
| 71690-9570101 |
TM20..FXV,GXL,XL BLACK,BLACK |
1 | ||
| 71690-95700 |
TM20 |
1 | ||
| 71690-9570106 |
TM20 BROWN,BROWN |
1 | ||
| 71419 - CUSHION (FOR REAR SEAT LEG) | ||||
| 71419-95A01 |
TM20..08S |
4 | ||
| 71419-95A01 |
TM20 |
4 | ||
| 71419-95A01 |
TM20..(4F,4H)..(DLX,STD,XL) |
4 | ||
| 71419 - CUSHION (FOR REAR SEAT LEG) | ||||
| 71419-95A01 |
TM20..08S |
4 | ||
| 71419-95A01 |
TM20 |
4 | ||
| 71419-95A01 |
TM20..(4F,4H)..(DLX,STD,XL) |
4 | ||
| 71585 - COVER, REAR NO.2 SEAT HINGE, RH | ||||
| 71485-9570106 |
TM20..FXV,GXL,XL BROWN,BROWN |
1 | ||
| 71485-9570101 |
TM20..FXV,GXL,XL BLACK,BLACK |
1 | ||
| 71586 - COVER, REAR NO.2 SEAT HINGE, LH | ||||
| 71485-9570101 |
TM20..FXV,GXL,XL BLACK,BLACK |
1 | ||
| 71485-9570106 |
TM20..FXV,GXL,XL BROWN,BROWN |
1 | ||
| 71660 - LOCK ASSY, REAR NO.3 SEAT | ||||
| 71660-95700 |
TM20 |
2 | ||
| 72650-95701 |
TM20..FXV,GXL,XL RH |
1 | ||
| 72660-95700 |
TM20..FXV,GXL,XL LH |
1 | ||
| 71661 - STRIKER, REAR NO.3 SEAT LOCK | ||||
| 71664-95700 |
TM20 |
2 | ||
| 71664-95701 |
TM20..FXV,GXL,XL |
2 | ||
| 71668 - CUSHION, REAR NO.3 SEAT | ||||
| 71668-95700 |
CM20,TM20,YM21..WG..(DLX,FXV,GXL,MTP,S,STD,XL) |
2 | ||
| 71716 - SPRING, JACK HANDLE SUPPORT | ||||
| 74716-95A01 |
TM20 |
2 | ||
| 64102-95700 |
TM20..FXV,GXL,XL |
2 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 71948 - PROTECTOR, PASSENGER SEAT BACK | ||||
| 71498-9570001 |
TM20..XL 27X50,BLACK,BLACK |
2 | ||
| 71498-9570001 |
TM20..FXV,GXL,XL BLACK,BLACK |
3 | ||
| 71498-9570016 |
TM20..XL 27X50,BROWN,BROWN |
2 | ||
| 71498-9570216 |
TM20..FXV,GXL,XL 27X150,BROWN,BROWN |
1 | ||
| 71498-9570201 |
TM20..FXV,GXL,XL 27X150,BLACK,BLACK |
1 | ||
| 71498-9570006 |
KM20,TM20..06S,08S BROWN,BROWN |
3 | ||
| 71498-9570016 |
TM20..FXV,GXL,XL BROWN,BROWN |
3 | ||
| 71975 - WASHER, REAR NO.1 SEAT | ||||
| 71975-95A01 |
TM20..08S |
1 | ||
| 71975-95A01 |
TM20..(4F,4H)..(DLX,STD,XL) |
1 | ||
| 72622 - ROD, REAR SEAT BACK STOPPER CONNECTING | ||||
| 71507-95701 |
TM20..4F..XL |
1 | ||
| 71507-95701 |
TM20..GXL,XL |
1 | ||
| 72622A - ROD, REAR SEAT BACK STOPPER CONNECTING, NO.2 | ||||
| 71670-95700 |
TM20 |
1 | ||
| Common parts | ||||
| 90109-08041 | ||||
| 90119-08079 | ||||
| 90119-08086 | ||||
| 90119-08241 | ||||
| 90119-08242 | ||||
| 90119-11002 | ||||
| 90159-50082 | ||||
| 90201-12192 | ||||
| 90206-10014 | ||||
| 90386-12008 | ||||
| 91611-60816 | ||||
| 93319-14010 | ||||
| 93530-54016 | ||||
| 93560-15020 | ||||
| 94171-10800 | ||||
| 94511-00800 | ||||
| 94611-10800 | ||||
| 94612-10800 | ||||
ILLUST NO. 1 OF 2(8101-8201)FXV,GXL ; (8201-8210)GXL,XL ; (8210-8508)GXL,MTP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 71110-95705 |
TM20..XL RH,VL PRINT |
1 | ||
| 71210-95706 |
TM20..XL LH,VL PRINT |
1 | ||
| 71210-9571706 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71110-9571602 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71210-9571702 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71110-9571606 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 71110-95705 |
TM20..XL RH,VL PRINT |
1 | ||
| 71210-95706 |
TM20..XL LH,VL PRINT |
1 | ||
| 71210-9571706 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71110-9571602 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71210-9571702 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71110-9571606 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 71250-95710 |
TM20..XL LH,VL PRINT |
1 | ||
| 71150-95705 |
TM20..XL RH,VL PRINT |
1 | ||
| 71250-9572006 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71250-9572002 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71150-9571702 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71150-9571706 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 71250-95710 |
TM20..XL LH,VL PRINT |
1 | ||
| 71150-95705 |
TM20..XL RH,VL PRINT |
1 | ||
| 71250-9572006 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71250-9572002 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71150-9571702 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71150-9571706 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 70012B - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 58936-9570301 |
TM20..FXV,GXL,XL BLACK,BLACK |
1 | ||
| 58936-9570306 |
TM20 BROWN,BROWN |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71108-95706 |
TM20..XL RH,VL PRINT |
1 | ||
| 71208-95709 |
TM20..XL LH,VL PRINT |
1 | ||
| 71108-9571702 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71108-9571706 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71208-9572002 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71208-9572006 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71108-95706 |
TM20..XL RH,VL PRINT |
1 | ||
| 71208-95709 |
TM20..XL LH,VL PRINT |
1 | ||
| 71108-9571702 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71108-9571706 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71208-9572002 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71208-9572006 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71209-95706 |
TM20..XL LH,VL PRINT |
1 | ||
| 71109-95705 |
TM20..XL RH,VL PRINT |
1 | ||
| 71109-9571606 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71109-9571602 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71209-9571602 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71209-9571606 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71209-95706 |
TM20..XL LH,VL PRINT |
1 | ||
| 71109-95705 |
TM20..XL RH,VL PRINT |
1 | ||
| 71109-9571606 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71109-9571602 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71209-9571602 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71209-9571606 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71165 - COVER, FRONT RH SEAT HINGE | ||||
| 71165-9570006 |
KM20,TM20 BROWN,BROWN |
1 | ||
| 71165-9570001 |
KM20,TM20 BLACK,BLACK |
1 | ||
| 71221 - LEG, FRONT SEAT | ||||
| 71023-9570306 |
TM20 BROWN,BROWN |
1 | ||
| 71221-95702 |
TM20 |
1 | ||
| 71023-9570301 |
TM20..FXV,GXL,XL BLACK,BLACK |
1 | ||
| 71265 - COVER, FRONT LH SEAT HINGE | ||||
| 71265-9570101 |
TM20 BLACK,BLACK |
1 | ||
| 71265-9570106 |
TM20 BROWN,BROWN |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72710-95701 |
TM20 |
1 | ||
| 72710-9570206 |
TM20 BROWN,BROWN |
1 | ||
| 72710-9570201 |
TM20..FXV,GXL,XL BLACK,BLACK |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-9570206 |
TM20 BROWN,BROWN |
1 | ||
| 72510-95700 |
TM20 |
1 | ||
| 72510-9570201 |
TM20..FXV,GXL,XL BLACK,BLACK |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-9570006 |
TM20..DLX,FXV,GXL,XL BROWN,BROWN |
1 | ||
| 72520-9570001 |
TM20..FXV,GXL,XL BLACK,BLACK |
1 | ||
| Common parts | ||||
| 58939-95J00 | ||||
| 90119-08257 | ||||
| 90119-08350 | ||||
| 90179-08039 | ||||
| 90202-13066 | ||||
| 90386-12067 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 94611-10601 | ||||
| 94613-10601 | ||||
| 96160-00900 | ||||
| Linked diagrams | ||||
| 7456 | ||||
ILLUST NO. 2 OF 2(8101-8201)GXL,XL ; (8201-8210)HRF..4F..XL ; (8210-8508)SRF..XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70021 - CUSHION ASSY, NO.2 SEAT | ||||
| 71510-95707 |
TM20..XL RH,VL PRINT |
1 | ||
| 71410-9573006 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71410-9573002 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71410-95718 |
TM20..XL LH,VL PRINT |
1 | ||
| 71510-9571202 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71510-9571206 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71410-9574802 |
TM20..XL LH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71410-9574806 |
TM20..XL LH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71410-9573006 |
TM20..4F..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71510-9572806 |
TM20..XL RH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71510-9571202 |
TM20..4F..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71510-9572802 |
TM20..XL RH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71510-9571206 |
TM20..4F..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71410-9573002 |
TM20..4F..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71810-9570006 |
TM20..XL SUB SEAT,FB,DARK BROWN,BROWN |
1 | ||
| 71810-9570002 |
TM20..XL SUB SEAT,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 70021 - CUSHION ASSY, NO.2 SEAT | ||||
| 71510-95707 |
TM20..XL RH,VL PRINT |
1 | ||
| 71410-9573006 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71410-9573002 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71410-95718 |
TM20..XL LH,VL PRINT |
1 | ||
| 71510-9571202 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71510-9571206 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71410-9574802 |
TM20..XL LH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71410-9574806 |
TM20..XL LH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71410-9573006 |
TM20..4F..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71510-9572806 |
TM20..XL RH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71510-9571202 |
TM20..4F..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71510-9572802 |
TM20..XL RH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71510-9571206 |
TM20..4F..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71410-9573002 |
TM20..4F..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71810-9570006 |
TM20..XL SUB SEAT,FB,DARK BROWN,BROWN |
1 | ||
| 71810-9570002 |
TM20..XL SUB SEAT,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 70022 - BACK ASSY, NO.2 SEAT | ||||
| 71450-95704 |
TM20..XL LH,VL PRINT |
1 | ||
| 71450-9571302 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71550-9571002 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71450-9571306 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71550-95704 |
TM20..XL RH,VL PRINT |
1 | ||
| 71550-9571006 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71450-9571302 |
TM20..4F..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71450-9571306 |
TM20..4F..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71450-9573102 |
TM20..XL LH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71450-9573106 |
TM20..XL LH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71550-9572606 |
TM20..XL RH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71550-9571002 |
TM20..4F..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71550-9571006 |
TM20..4F..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71550-9572602 |
TM20..XL RH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71850-9570202 |
TM20..XL SUB SEAT,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71850-9570206 |
TM20..XL SUB SEAT,FB,DARK BROWN,BROWN |
1 | ||
| 70022 - BACK ASSY, NO.2 SEAT | ||||
| 71450-95704 |
TM20..XL LH,VL PRINT |
1 | ||
| 71450-9571302 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71550-9571002 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71450-9571306 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71550-95704 |
TM20..XL RH,VL PRINT |
1 | ||
| 71550-9571006 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71450-9571302 |
TM20..4F..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71450-9571306 |
TM20..4F..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71450-9573102 |
TM20..XL LH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71450-9573106 |
TM20..XL LH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71550-9572606 |
TM20..XL RH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71550-9571002 |
TM20..4F..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71550-9571006 |
TM20..4F..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71550-9572602 |
TM20..XL RH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71850-9570202 |
TM20..XL SUB SEAT,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71850-9570206 |
TM20..XL SUB SEAT,FB,DARK BROWN,BROWN |
1 | ||
| 70023 - COVER ASSY, NO.2 SEAT CUSHION | ||||
| 71508-95703 |
TM20..XL RH,VL PRINT |
1 | ||
| 71408-95704 |
TM20..XL LH,VL PRINT |
1 | ||
| 71408-9571306 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71408-9571302 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71508-9570806 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71508-9570802 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71408-9571302 |
TM20..4F..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71408-9573102 |
TM20..XL LH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71408-9571306 |
TM20..4F..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71508-9572402 |
TM20..XL RH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71508-9570806 |
TM20..4F..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71508-9572406 |
TM20..XL RH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71408-9573106 |
TM20..XL LH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71508-9570802 |
TM20..4F..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71808-9570002 |
TM20..XL SUB SEAT,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71808-9570006 |
TM20..XL SUB SEAT,FB,DARK BROWN,BROWN |
1 | ||
| 70023 - COVER ASSY, NO.2 SEAT CUSHION | ||||
| 71508-95703 |
TM20..XL RH,VL PRINT |
1 | ||
| 71408-95704 |
TM20..XL LH,VL PRINT |
1 | ||
| 71408-9571306 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71408-9571302 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71508-9570806 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71508-9570802 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71408-9571302 |
TM20..4F..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71408-9573102 |
TM20..XL LH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71408-9571306 |
TM20..4F..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71508-9572402 |
TM20..XL RH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71508-9570806 |
TM20..4F..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71508-9572406 |
TM20..XL RH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71408-9573106 |
TM20..XL LH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71508-9570802 |
TM20..4F..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71808-9570002 |
TM20..XL SUB SEAT,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71808-9570006 |
TM20..XL SUB SEAT,FB,DARK BROWN,BROWN |
1 | ||
| 70024 - COVER ASSY, NO.2 SEAT BACK | ||||
| 71409-95703 |
TM20..XL LH,VL PRINT |
1 | ||
| 71509-95703 |
TM20..XL RH,VL PRINT |
1 | ||
| 71409-9571202 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71409-9571206 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71509-9570806 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71509-9570802 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71409-9573006 |
TM20..XL LH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71409-9573002 |
TM20..XL LH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71409-9571206 |
TM20..4F..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71409-9571202 |
TM20..4F..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71509-9570806 |
TM20..4F..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71809-9570006 |
TM20..XL SUB SEAT,FB,DARK BROWN,BROWN |
1 | ||
| 71509-9570802 |
TM20..4F..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71509-9572406 |
TM20..XL RH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71809-9570002 |
TM20..XL SUB SEAT,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71509-9572402 |
TM20..XL RH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 70024 - COVER ASSY, NO.2 SEAT BACK | ||||
| 71409-95703 |
TM20..XL LH,VL PRINT |
1 | ||
| 71509-95703 |
TM20..XL RH,VL PRINT |
1 | ||
| 71409-9571202 |
TM20..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71409-9571206 |
TM20..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71509-9570806 |
TM20..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71509-9570802 |
TM20..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71409-9573006 |
TM20..XL LH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71409-9573002 |
TM20..XL LH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71409-9571206 |
TM20..4F..XL LH,FB,DARK BROWN,BROWN |
1 | ||
| 71409-9571202 |
TM20..4F..XL LH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71509-9570806 |
TM20..4F..XL RH,FB,DARK BROWN,BROWN |
1 | ||
| 71809-9570006 |
TM20..XL SUB SEAT,FB,DARK BROWN,BROWN |
1 | ||
| 71509-9570802 |
TM20..4F..XL RH,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71509-9572406 |
TM20..XL RH,FB,W/*SS,DARK BROWN,BROWN |
1 | ||
| 71809-9570002 |
TM20..XL SUB SEAT,FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71509-9572402 |
TM20..XL RH,FB,W/*SS,ORANGE & BLACK,RED/MAROON |
1 | ||
| 70031 - CUSHION ASSY, NO.3 SEAT | ||||
| 71610-95703 |
TM20..XL VL PRINT |
1 | ||
| 71610-9570802 |
TM20..XL FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71610-9570806 |
TM20..XL FB,DARK BROWN,BROWN |
1 | ||
| 70032 - BACK ASSY, NO.3 SEAT | ||||
| 71650-9570806 |
TM20..XL FB,DARK BROWN,BROWN |
1 | ||
| 71650-95703 |
TM20..XL VL PRINT |
1 | ||
| 71650-9570802 |
TM20..XL FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71650-9572602 |
TM20..XL FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71650-9572606 |
TM20..XL FB,DARK BROWN,BROWN |
1 | ||
| 70033 - COVER ASSY, NO.3 SEAT CUSHION | ||||
| 71608-95703 |
TM20..XL VL PRINT |
1 | ||
| 71608-9570802 |
TM20..XL FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71608-9570806 |
TM20..XL FB,DARK BROWN,BROWN |
1 | ||
| 70034 - COVER ASSY, NO.3 SEAT BACK | ||||
| 71609-95703 |
TM20..XL VL PRINT |
1 | ||
| 71609-9570802 |
TM20..XL FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71609-9570806 |
TM20..XL FB,DARK BROWN,BROWN |
1 | ||
| 71609-9572102 |
TM20..XL FB,ORANGE & BLACK,RED/MAROON |
1 | ||
| 71609-9572106 |
TM20..XL FB,DARK BROWN,BROWN |
1 | ||
| 71047 - LOCK SUB-ASSY, REAR SEAT LEG | ||||
| 71460-95714 |
TM20 |
1 | ||
| 72630-95701 |
TM20..GXL,XL |
1 | ||
| 72630-95701 |
TM20..4F..XL |
1 | ||
| 71048 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 71464-95700 |
TM20..08S |
1 | ||
| 71464-95700 |
TM20..(4F,4H)..(DLX,STD,XL) |
1 | ||
| 71250 - LEG ASSY, REAR NO.1 SEAT | ||||
| 71403-9570201 |
TM20..GXL,XL LH,BLACK,BLACK |
1 | ||
| 71503-9570301 |
TM20..4F..XL RH,BLACK,BLACK |
1 | ||
| 71503-9570306 |
TM20..4F..XL RH,BROWN,BROWN |
1 | ||
| 71309-9570401 |
TM20..GXL,XL *SS,BLACK,BLACK |
1 | ||
| 71403-9570206 |
TM20..GXL,XL LH,BROWN,BROWN |
1 | ||
| 71403-9570206 |
TM20..4F..XL LH,BROWN,BROWN |
1 | ||
| 71309-9570406 |
TM20..GXL,XL *SS,BROWN,BROWN |
1 | ||
| 71503-9570301 |
TM20..GXL,XL RH,BLACK,BLACK |
1 | ||
| 71503-9570306 |
TM20..GXL,XL RH,BROWN,BROWN |
1 | ||
| 71403-9570201 |
TM20..4F..XL LH,BLACK,BLACK |
1 | ||
| 71250 - LEG ASSY, REAR NO.1 SEAT | ||||
| 71403-9570201 |
TM20..GXL,XL LH,BLACK,BLACK |
1 | ||
| 71503-9570301 |
TM20..4F..XL RH,BLACK,BLACK |
1 | ||
| 71503-9570306 |
TM20..4F..XL RH,BROWN,BROWN |
1 | ||
| 71309-9570401 |
TM20..GXL,XL *SS,BLACK,BLACK |
1 | ||
| 71403-9570206 |
TM20..GXL,XL LH,BROWN,BROWN |
1 | ||
| 71403-9570206 |
TM20..4F..XL LH,BROWN,BROWN |
1 | ||
| 71309-9570406 |
TM20..GXL,XL *SS,BROWN,BROWN |
1 | ||
| 71503-9570301 |
TM20..GXL,XL RH,BLACK,BLACK |
1 | ||
| 71503-9570306 |
TM20..GXL,XL RH,BROWN,BROWN |
1 | ||
| 71403-9570201 |
TM20..4F..XL LH,BLACK,BLACK |
1 | ||
| 71330 - HINGE ASSY, REAR SEAT CUSHION | ||||
| 72540-95700 |
TM20..GXL,XL |
1 | ||
| 72540-9570106 |
TM20..GXL,XL BROWN,BROWN |
1 | ||
| 72540-9570101 |
TM20..GXL,XL BLACK,BLACK |
1 | ||
| 72540-9570101 |
TM20..4F..XL BLACK,BLACK |
1 | ||
| 72540-9570106 |
TM20..4F..XL BROWN,BROWN |
1 | ||
| 71350 - LINK ASSY, REAR SEAT BACK CUSHION, RH | ||||
| 72570-9570001 |
TM20..GXL,XL BLACK,BLACK |
1 | ||
| 72570-9570006 |
TM20..GXL,XL BROWN,BROWN |
1 | ||
| 72570-9570006 |
TM20..4F..XL BROWN,BROWN |
1 | ||
| 72570-9570001 |
TM20..4F..XL BLACK,BLACK |
1 | ||
| 72570-9570106 |
TM20..FXV,GXL,XL *SS,BROWN,BROWN |
1 | ||
| 72570-9570101 |
TM20..FXV,GXL,XL *SS,BLACK,BLACK |
1 | ||
| 71360 - LINK ASSY, REAR SEAT BACK CUSHION, LH | ||||
| 72530-9570001 |
TM20..GXL,XL BLACK,BLACK |
1 | ||
| 72530-9570006 |
TM20..GXL,XL BROWN,BROWN |
1 | ||
| 72530-9570001 |
TM20..4F..XL BLACK,BLACK |
1 | ||
| 72540-9570206 |
TM20..FXV,GXL,XL *SS,BROWN,BROWN |
1 | ||
| 72530-9570006 |
TM20..4F..XL BROWN,BROWN |
1 | ||
| 72540-9570201 |
TM20..FXV,GXL,XL *SS,BLACK,BLACK |
1 | ||
| 71383 - HINGE, REAR SEAT BACK STOP, NO.3 | ||||
| 71680-9570101 |
TM20..FXV,GXL,XL BLACK,BLACK |
1 | ||
| 71680-95700 |
TM20 |
1 | ||
| 71680-9570106 |
TM20 BROWN,BROWN |
1 | ||
| 71384 - HINGE, REAR SEAT BACK STOP, NO.4 | ||||
| 71690-9570101 |
TM20..FXV,GXL,XL BLACK,BLACK |
1 | ||
| 71690-95700 |
TM20 |
1 | ||
| 71690-9570106 |
TM20 BROWN,BROWN |
1 | ||
| 71412 - CUSHION RUBBER, BACK CUSHION FRAME | ||||
| 71622-95700 |
TM20..FXV,GXL,XL |
2 | ||
| 71419 - CUSHION (FOR REAR SEAT LEG) | ||||
| 71419-95A01 |
TM20..08S |
4 | ||
| 71419-95A01 |
TM20 |
4 | ||
| 71419-95A01 |
TM20..(4F,4H)..(DLX,STD,XL) |
4 | ||
| 71660 - LOCK ASSY, REAR NO.3 SEAT | ||||
| 71660-95700 |
TM20 |
2 | ||
| 72650-95701 |
TM20..FXV,GXL,XL RH |
1 | ||
| 72660-95700 |
TM20..FXV,GXL,XL LH |
1 | ||
| 71660A - COVER, REAR NO.3 SEAT LOCK | ||||
| 71692-9570101 |
TM20..FXV,GXL,XL LH,BLACK,BLACK |
1 | ||
| 71691-9570106 |
TM20..FXV,GXL,XL RH,BROWN,BROWN |
1 | ||
| 71691-9570101 |
TM20..FXV,GXL,XL RH,BLACK,BLACK |
1 | ||
| 71692-9570106 |
TM20..FXV,GXL,XL LH,BROWN,BROWN |
1 | ||
| 71661 - STRIKER, REAR NO.3 SEAT LOCK | ||||
| 71664-95700 |
TM20 |
2 | ||
| 71664-95701 |
TM20..FXV,GXL,XL |
2 | ||
| 71668 - CUSHION, REAR NO.3 SEAT | ||||
| 71668-95700 |
CM20,TM20,YM21..WG..(DLX,FXV,GXL,MTP,S,STD,XL) |
2 | ||
| 71716 - SPRING, JACK HANDLE SUPPORT | ||||
| 74716-95A01 |
TM20 |
2 | ||
| 64102-95700 |
TM20..FXV,GXL,XL |
2 | ||
| 71716 - SPRING, JACK HANDLE SUPPORT | ||||
| 74716-95A01 |
TM20 |
2 | ||
| 64102-95700 |
TM20..FXV,GXL,XL |
2 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20,TM20..V,WG |
1 | ||
| 71948 - PROTECTOR, PASSENGER SEAT BACK | ||||
| 71498-9570001 |
TM20..XL 27X50,BLACK,BLACK |
2 | ||
| 71498-9570001 |
TM20..FXV,GXL,XL BLACK,BLACK |
3 | ||
| 71498-9570016 |
TM20..XL 27X50,BROWN,BROWN |
2 | ||
| 71498-9570216 |
TM20..FXV,GXL,XL 27X150,BROWN,BROWN |
1 | ||
| 71498-9570201 |
TM20..FXV,GXL,XL 27X150,BLACK,BLACK |
1 | ||
| 71498-9570006 |
KM20,TM20..06S,08S BROWN,BROWN |
3 | ||
| 71498-9570016 |
TM20..FXV,GXL,XL BROWN,BROWN |
3 | ||
| 71948 - PROTECTOR, PASSENGER SEAT BACK | ||||
| 71498-9570001 |
TM20..XL 27X50,BLACK,BLACK |
2 | ||
| 71498-9570001 |
TM20..FXV,GXL,XL BLACK,BLACK |
3 | ||
| 71498-9570016 |
TM20..XL 27X50,BROWN,BROWN |
2 | ||
| 71498-9570216 |
TM20..FXV,GXL,XL 27X150,BROWN,BROWN |
1 | ||
| 71498-9570201 |
TM20..FXV,GXL,XL 27X150,BLACK,BLACK |
1 | ||
| 71498-9570006 |
KM20,TM20..06S,08S BROWN,BROWN |
3 | ||
| 71498-9570016 |
TM20..FXV,GXL,XL BROWN,BROWN |
3 | ||
| 71975 - WASHER, REAR NO.1 SEAT | ||||
| 71975-95A01 |
TM20..08S |
1 | ||
| 71975-95A01 |
TM20..(4F,4H)..(DLX,STD,XL) |
1 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72170-9570106 |
TM20..FXV,GXL,XL *SS,BROWN,BROWN |
1 | ||
| 72170-9570101 |
TM20..FXV,GXL,XL *SS,BLACK,BLACK |
1 | ||
| 72180-9570001 |
TM20..GXL,XL BLACK,BLACK |
1 | ||
| 72180-9570001 |
TM20..4F..XL BLACK,BLACK |
1 | ||
| 72180-9570006 |
TM20..GXL,XL BROWN,BROWN |
1 | ||
| 72180-9570006 |
TM20..4F..XL BROWN,BROWN |
1 | ||
| 72170 - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72160-9570001 |
TM20..GXL,XL BLACK,BLACK |
1 | ||
| 72160-9570006 |
TM20..GXL,XL BROWN,BROWN |
1 | ||
| 72160-9570001 |
TM20..4F..XL BLACK,BLACK |
1 | ||
| 72160-9570006 |
TM20..4F..XL BROWN,BROWN |
1 | ||
| 72160-9570401 |
TM20..GXL,XL *SS,BLACK,BLACK |
1 | ||
| 72160-9570406 |
TM20..GXL,XL *SS,BROWN,BROWN |
1 | ||
| 72180 - TRACK ASSY, REAR SEAT, INNER RH | ||||
| 72190-9570001 |
TM20..GXL,XL BLACK,BLACK |
1 | ||
| 72190-9570006 |
TM20..GXL,XL BROWN,BROWN |
1 | ||
| 72160-9570301 |
TM20..FXV,GXL,XL *SS,BLACK,BLACK |
1 | ||
| 72190-9570001 |
TM20..4F..XL BLACK,BLACK |
1 | ||
| 72160-9570306 |
TM20..FXV,GXL,XL *SS,BROWN,BROWN |
1 | ||
| 72190-9570006 |
TM20..4F..XL BROWN,BROWN |
1 | ||
| 72622 - ROD, REAR SEAT BACK STOPPER CONNECTING | ||||
| 71507-95701 |
TM20..4F..XL |
1 | ||
| 71507-95701 |
TM20..GXL,XL |
1 | ||
| 72622A - ROD, REAR SEAT BACK STOPPER CONNECTING, NO.2 | ||||
| 71670-95700 |
TM20 |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-08086 | ||||
| 90119-08241 | ||||
| 90119-08242 | ||||
| 90119-10035 | ||||
| 90119-10258 | ||||
| 90119-10259 | ||||
| 90159-60162 | ||||
| 90168-40036 | ||||
| 90179-08039 | ||||
| 91612-61040 | ||||
| 93319-14010 | ||||
| 93510-15025 | ||||
| 93530-54016 | ||||
| 93530-54020 | ||||
| 93540-55010 | ||||
| 93560-55014 | ||||
| 94171-10800 | ||||
| 94511-00800 | ||||
| 94611-10800 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 7456 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
