TM20G-KN (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 13TU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(7910-8101)TM20

Click highlighted areas on diagram

diagram 58905 58907 58908A 58940 58940 9015960108 9015960108 9054103006 9354054014 9354054014 9418040400
Part # Description Qty Price
58940 - CONSOLE ASSY, REAR
58811-95701

TM20..DLX,STD,XL

 1
58811-9570506

TM20..DLX,STD,XL

BROWN,BROWN

 1
58811-9570503

TM20..XL

GRAY,GRAY

 1
58940 - CONSOLE ASSY, REAR
58811-95701

TM20..DLX,STD,XL

 1
58811-9570506

TM20..DLX,STD,XL

BROWN,BROWN

 1
58811-9570503

TM20..XL

GRAY,GRAY

 1
Common parts
90159-60108
90541-03006
93540-54014
94180-40400

ILLUST NO. 3 OF 4(7910-8101)TM20..DLX,GXL,XL ; (8101-8508)WG

Click highlighted areas on diagram

diagram 58802 58802 9356054014 9356055014
Part # Description Qty Price
58802 - CONSOLE SUB-ASSY, LOWER
58803-9570003

TM20..FXV,GXL,XL

GRAY,GRAY

 1
58803-9570006

TM20..DLX,GXL,XL

BROWN,BROWN

 1
58803-9570006

TM20

BROWN,BROWN

 1
58802 - CONSOLE SUB-ASSY, LOWER
58803-9570003

TM20..FXV,GXL,XL

GRAY,GRAY

 1
58803-9570006

TM20..DLX,GXL,XL

BROWN,BROWN

 1
58803-9570006

TM20

BROWN,BROWN

 1
Common parts
93560-54014
93560-55014

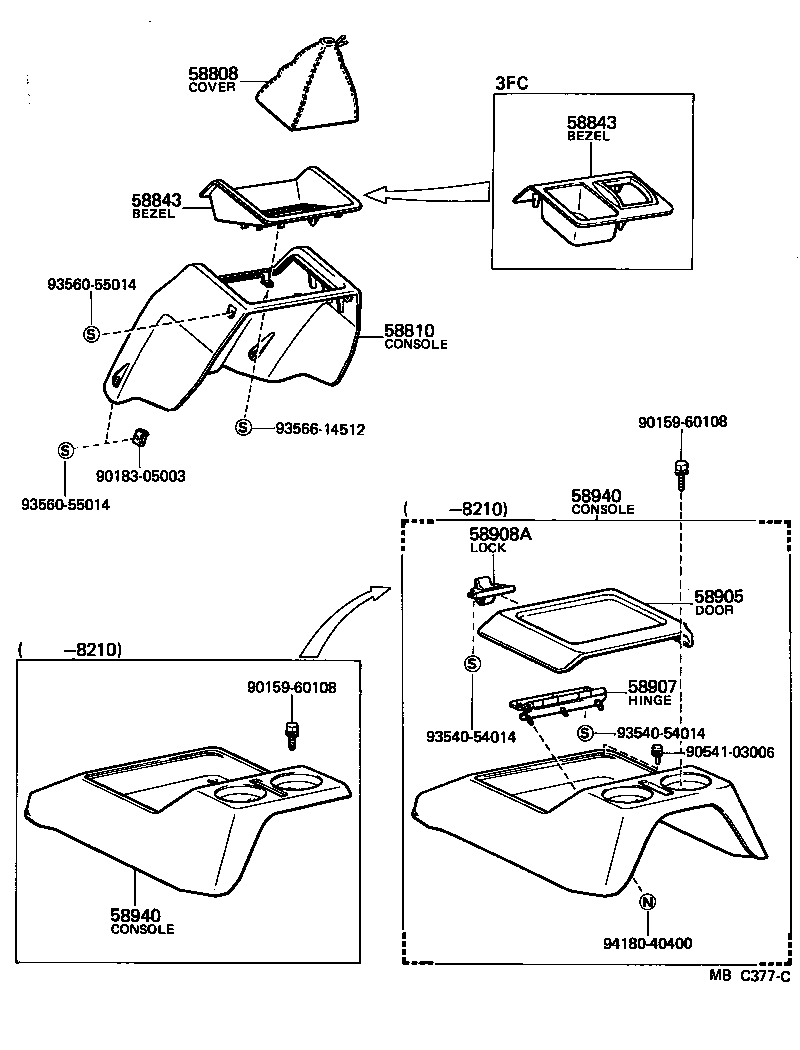

ILLUST NO. 1 OF 4(8101-8210)TM20 ; (8210-8508)3FC,5F

Click highlighted areas on diagram

diagram 58808 58810 58843 58843 58905 58907 58908A 58940 58940 9015960108 9015960108 9018305003 9054103006 9354054014 9354054014 9356055014 9356055014 9356614512 9418040400
Part # Description Qty Price
58940 - CONSOLE ASSY, REAR
58811-95701

TM20..DLX,STD,XL

 1
58811-9570506

TM20..DLX,STD,XL

BROWN,BROWN

 1
58811-9570503

TM20..XL

GRAY,GRAY

 1
58940 - CONSOLE ASSY, REAR
58811-95701

TM20..DLX,STD,XL

 1
58811-9570506

TM20..DLX,STD,XL

BROWN,BROWN

 1
58811-9570503

TM20..XL

GRAY,GRAY

 1
Common parts
90159-60108
90183-05003
90541-03006
93540-54014
93560-55014
93566-14512
94180-40400

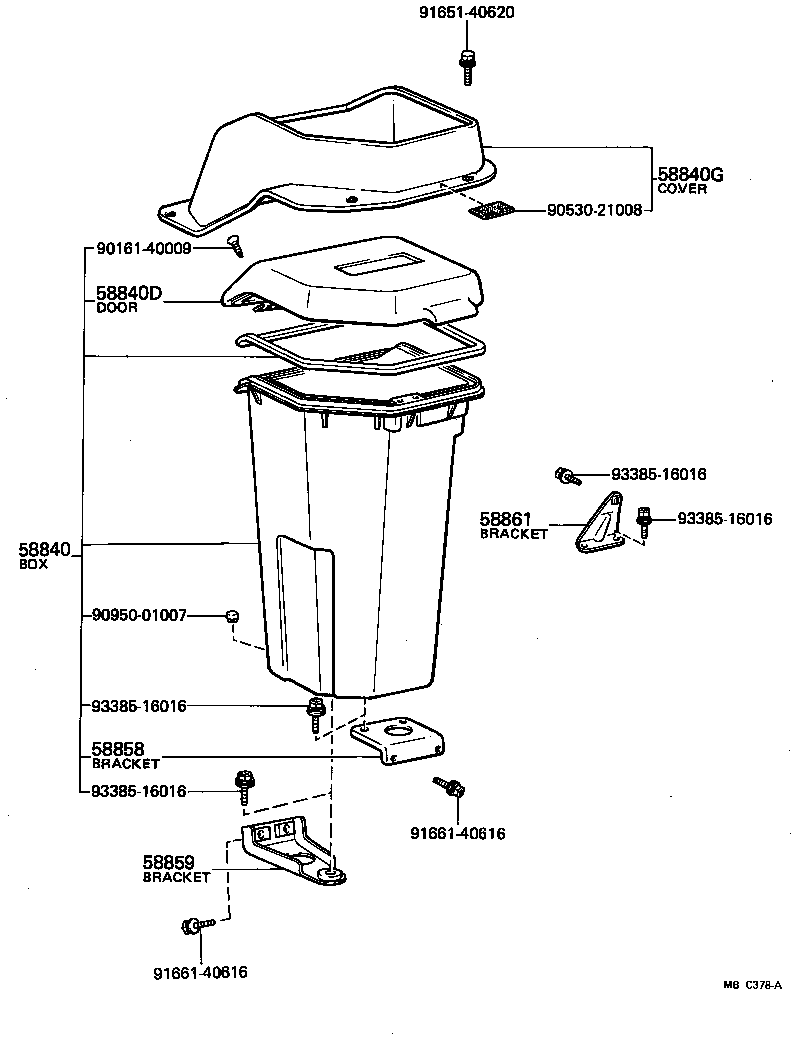

ILLUST NO. 4 OF 4(8101-8201)TM20

Click highlighted areas on diagram

diagram 58840 58840D 58840G 58858 58859 58861 9016140009 9053021008 9095001007 9165140620 9166140616 9166140616 9338516016 9338516016 9338516016 9338516016
Part # Description Qty Price
58840 - BOX ASSY, CONSOLE COMPARTMENT
58069-95701

TM20

 1
58840D - DOOR, CONSOLE COMPARTMENT BOX
58632-95700

TM20

 1
58840G - COVER, CONSOLE COMPARTMENT BOX
88897-95700

TM20

 1
58858 - BRACKET, CONSOLE SUPPORT, NO.1
58637-95700

TM20

 1
58859 - BRACKET, CONSOLE SUPPORT, NO.2
58639-95700

TM20

 1
58861 - BRACKET, CONSOLE SUPPORT, NO.3
58636-95700

TM20

 1
Common parts
90161-40009
90530-21008
90950-01007
91651-40620
91661-40616
93385-16016
