TM20G-KN (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 13TU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8210)TM20..DLX,STD,XL ; (8110-8111)HRF..5F..GXL

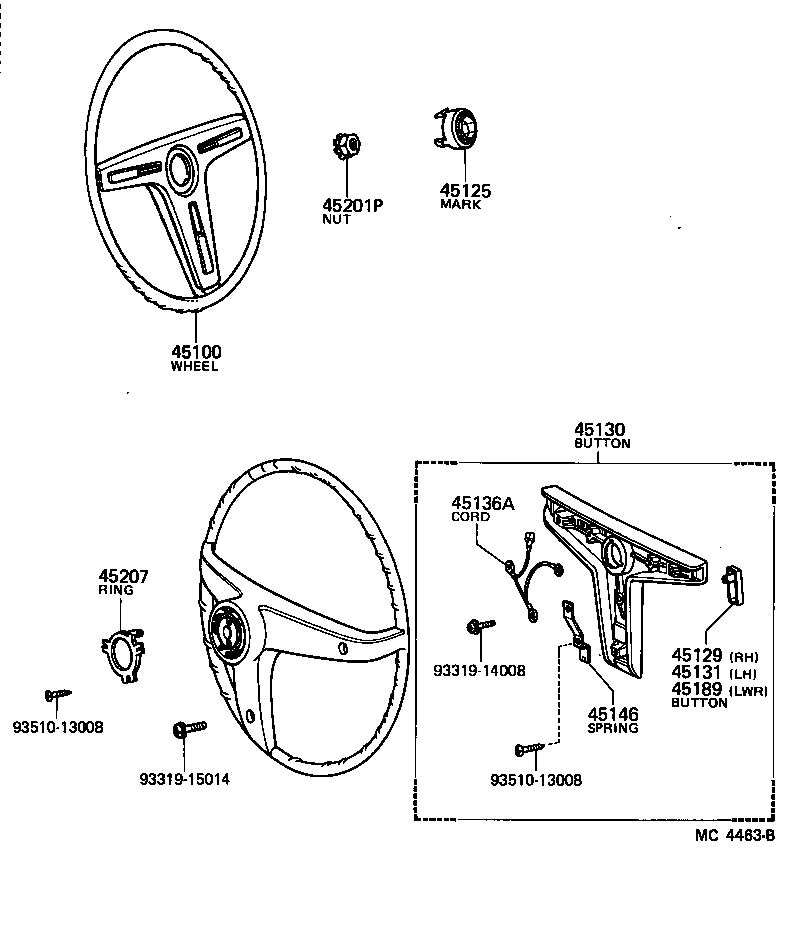

Click highlighted areas on diagram

diagram 45100 45125 45129 45130 45131 45136A 45146 45189 45201P 45207 9331914008 9331915014 9351013008 9351013008
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-27050

TM20..DLX,STD,XL

BLACK

 1
45100-2801006

TM20..DLX,STD,XL

2本ｽﾎﾟｰｸ,BROWN,BROWN

 1
45125 - MARK, STEERING WHEEL PAD
45125-27040

TM20..DLX,STD,XL

 1
45129 - BUTTON, HORN, NO.2
45131-12070

TM20..DLX,STD,XL

 1
45130 - BUTTON ASSY, HORN
45130-12130

TM20..DLX,STD,XL

BLACK

 1
45130-2801006

TM20..DLX,STD,XL

BROWN,BROWN

 1
45131 - BUTTON, HORN, NO.1
45131-12070

TM20..DLX,STD,XL

 1
45136A - CORD(FOR HORN CONTACT RING)
90945-02027

TM20

 1
45146 - SPRING, HORN BUTTON CONTACT
45146-12030

TM20..DLX,STD,XL

 1
45189 - BUTTON, HORN, NO.3
45131-12070

TM20..DLX,STD,XL

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

CM2#,KM2#,TM20,YM2#

 1
45207 - RING, HORN CONTACT
45176-20030

KM20,TM20

 1
Common parts
93319-14008
93319-15014
93510-13008
